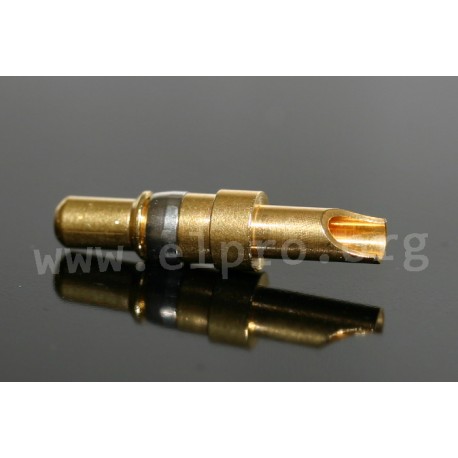

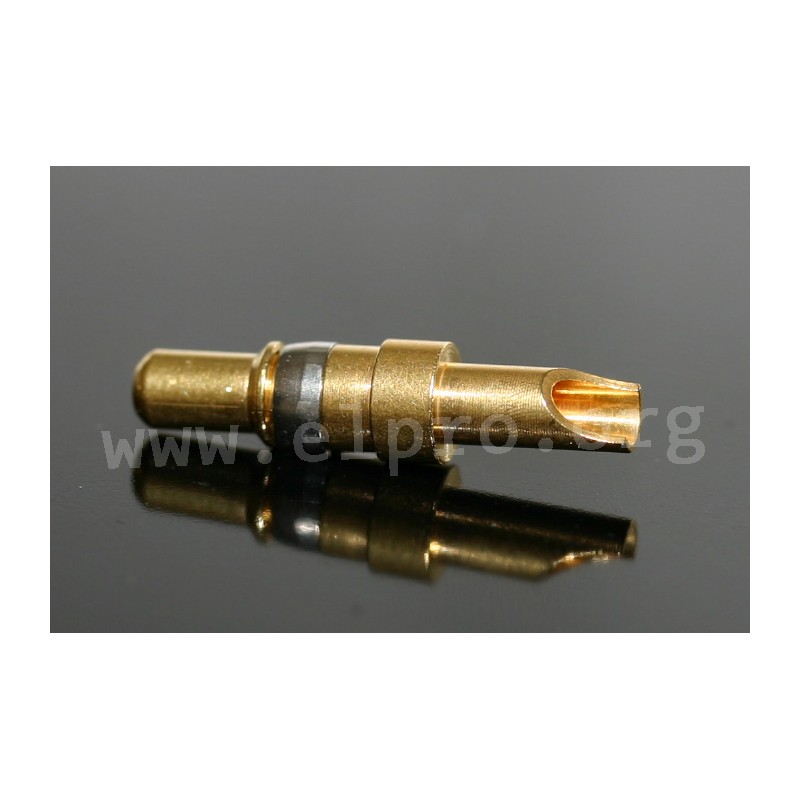

DS 20A L

Combi D-Sub plugs

high-current-contacts
• solder buckets
• contacts: Cu-alloy
• contact surface: gold over nickel
• clip: Cu-alloy

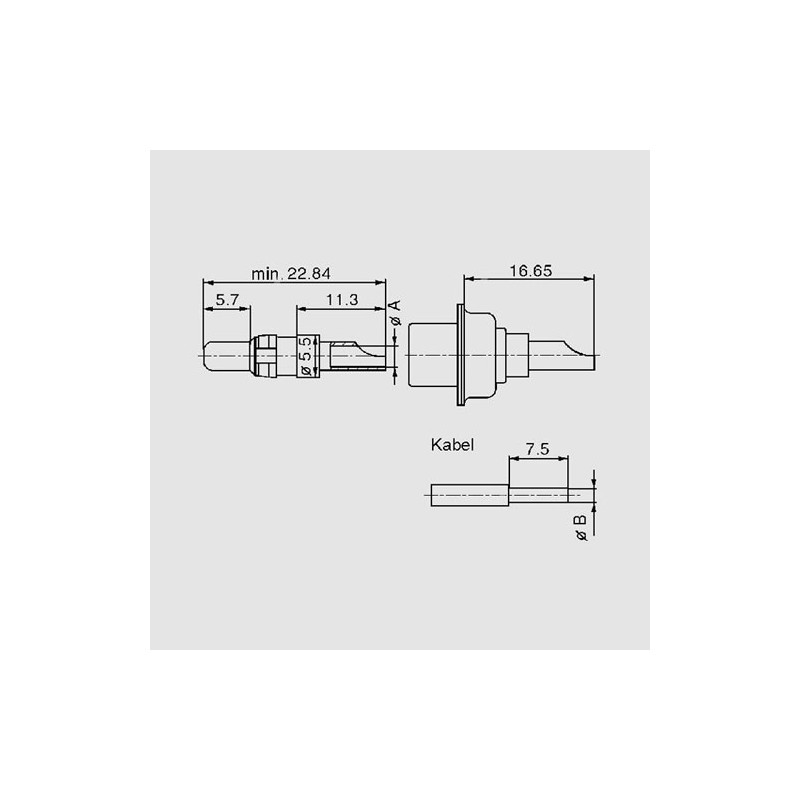

DS 20A L: Imax.= 20A ØA = 2.7 mm ,ØB = 2.7 mm

DS 20A L

DS 20A L

28195 DS 20A L 131C10029X 131C10029X Combi D-Sub plugs. high-current-contacts• solder buckets• contacts: Cu-alloy• contact surface: gold over nickel• clip: Cu-alloyDS 20A L: Imax.= 20A ØA = 2.7 mm ,ØB = 2.7 mm

Specifications

manufacturer
Manufacturer's name 131C10029X

Unit price

1,11 €

Stock: 2640
Further delivery:
CW 09/2025

Minimum order quantity 5 units or
multiples of 5.
