> Passive elements>D-subminiature connectors>D-subminiature backshells>Conec D-sub backshells, plastic, 165X101 series>165X10169XE

Manufacturers

165X10169XE

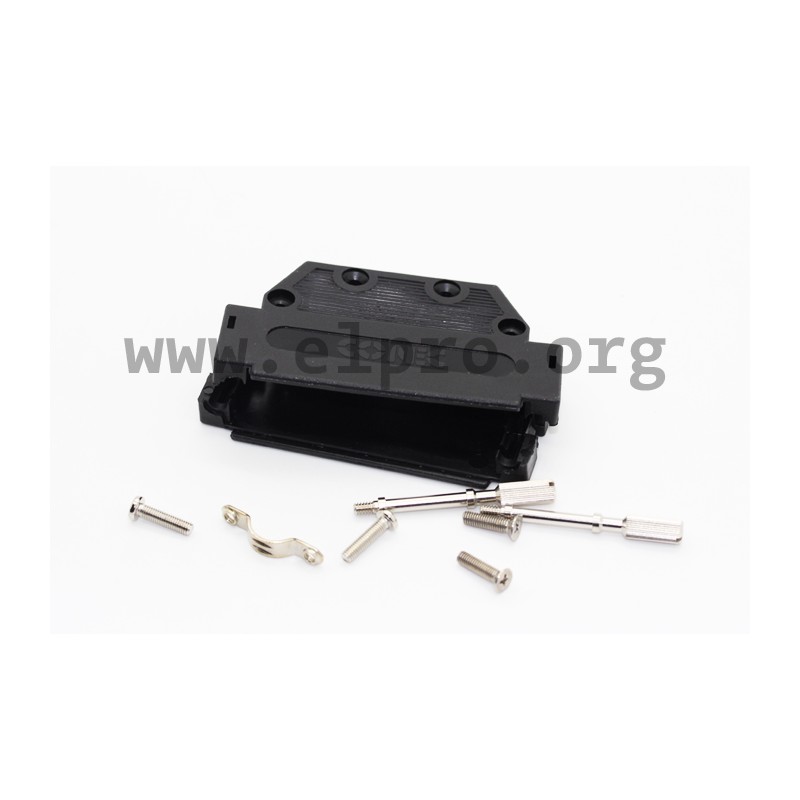

D-sub plastic backshells by Conec

Two-piece hoods made of ABS (UL94V-0) with integrated cable clamping and a straight cable entry. They have secure screws and a strain relief.

We are offering the following types by manufacturer Conec: 165X10189XE, 165X10199XE, 165X10139XE, 165X10149XE, 165X10159XE, 165X10169XE and 165X10179XE.

* with retaining screws UNC4-40

165X10169XE, Conec D-sub backshells, plastic, 165X101 series

165X10169XE

110831 165X10169XE 165X10169XE D-sub plastic backshells by Conec. Two-piece hoods made of ABS (UL94V-0) with integrated cable clamping and a straight cable entry. They have secure screws and a strain relief. We are offering the following types by manufacturer Conec: 165X10189XE, 165X10199XE, 165X10139XE, 165X10149XE, 165X10159XE, 165X10169XE and 165X10179XE. * with retaining screws UNC4-40

Specifications

manufacturer
Manufacturer's name 165X10169XE

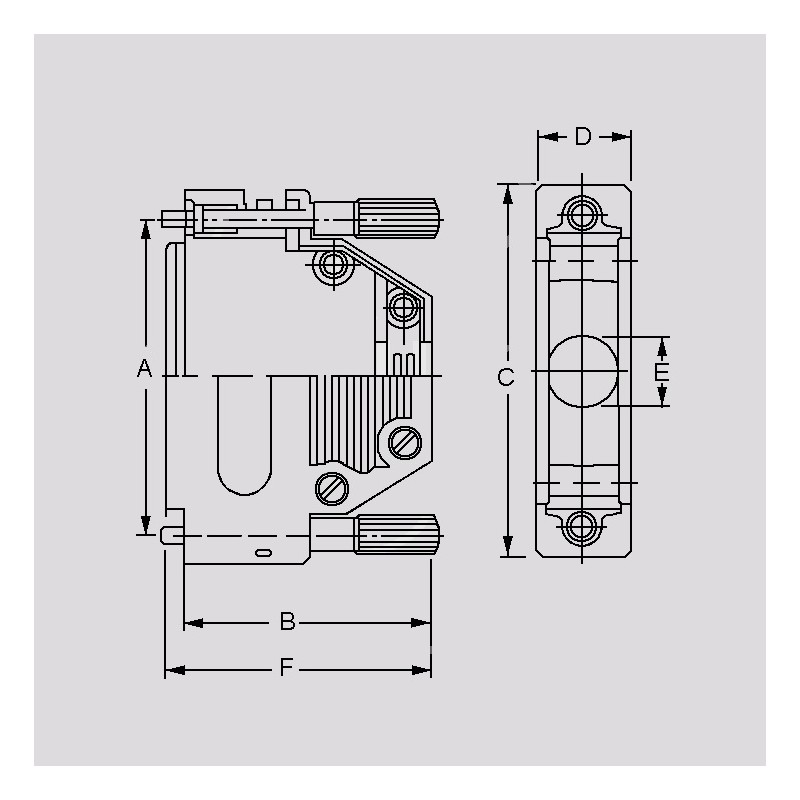

E [mm] 10,5
Number of poles 37
A [mm] 63,5
F [mm] 39,5
D [mm] 14,5
B [mm] 37
C [mm] 72,5
Data Sheet

Unit price

1,93 €

Stock: 805
Further delivery:
CW 11/2025

Minimum order quantity 5 units or
multiples of 5.
