165X10199XE

D-sub plastic backshells by Conec

Two-piece hoods made of ABS (UL94V-0) with integrated cable clamping and a straight cable entry. They have secure screws and a strain relief.

We are offering the following types by manufacturer Conec: 165X10189XE, 165X10199XE, 165X10139XE, 165X10149XE, 165X10159XE, 165X10169XE and 165X10179XE.

* with retaining screws M3

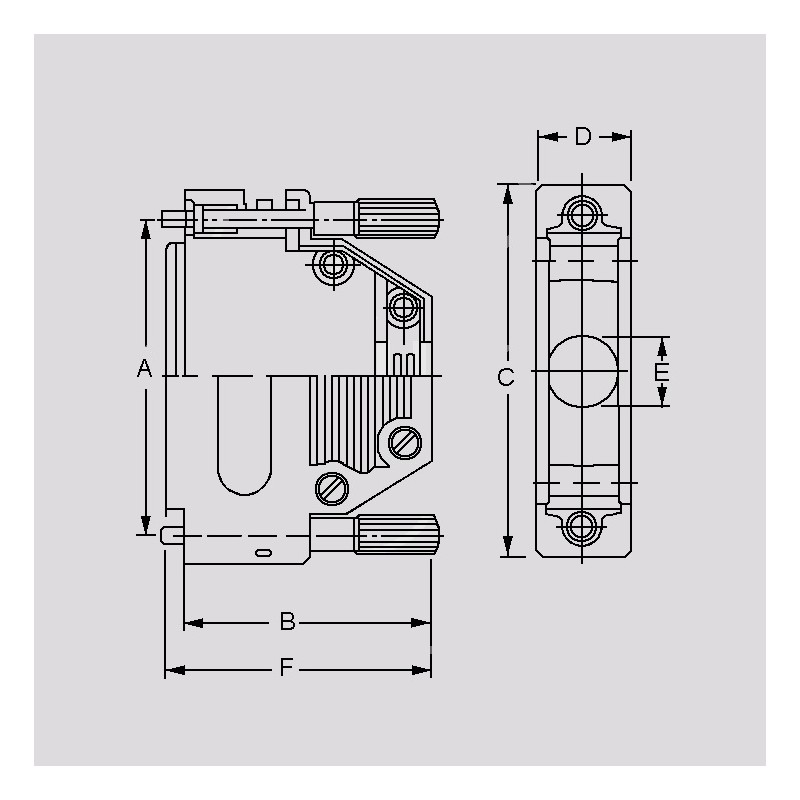

dimensions

165X10199XE

110829 165X10199XE 165X10199XE D-sub plastic backshells by Conec. Two-piece hoods made of ABS (UL94V-0) with integrated cable clamping and a straight cable entry. They have secure screws and a strain relief. We are offering the following types by manufacturer Conec: 165X10189XE, 165X10199XE, 165X10139XE, 165X10149XE, 165X10159XE, 165X10169XE and 165X10179XE. * with retaining screws M3

Specifications

manufacturer
Manufacturer's name 165X10199XE
E [mm] 10
Number of poles 15
A [mm] 33,3
F [mm] 39,5
D [mm] 14,5
B [mm] 37
C [mm] 42,3
Data Sheet

Unit price

1,53 €

Stock: 70
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
