DF 37 P-P

high-quality version

• solder pins
• machined contacts
• insulating shell: polyester, glass fiber reinforced, self-extinguishing nach UL94V-0
• contacts: Cu-alloy
• contact surface: gold over nickel
• housing frame: steel plate, nickel layer and tin-plated
• operating temperature range: -55...+125°C

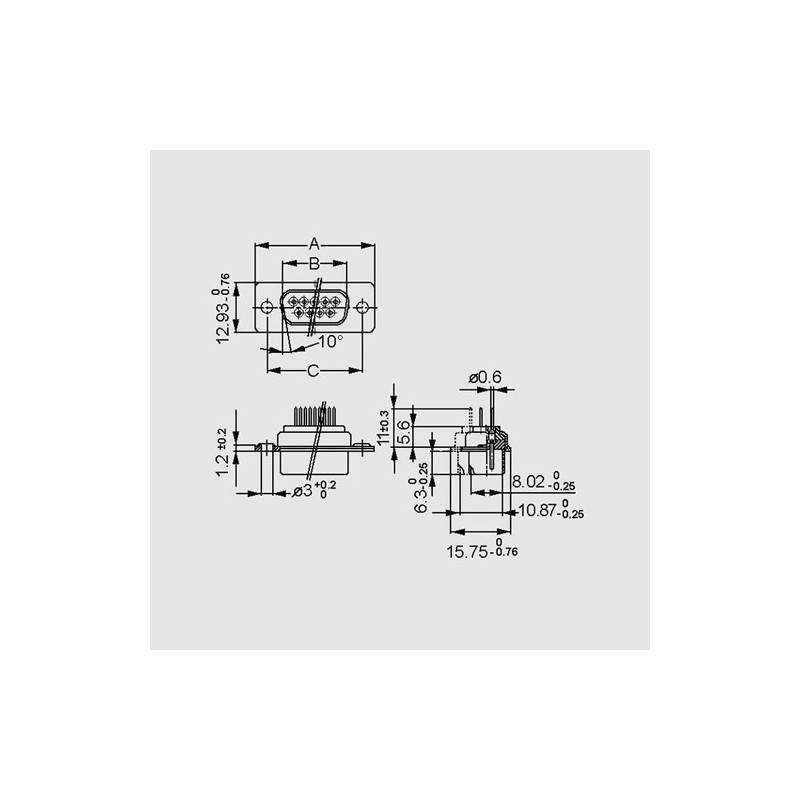

dimensions DF _ P-P

DF 37 P-P

28223 DF 37 P-P 164A10099X 164A10099X high-quality version. • solder pins• machined contacts• insulating shell: polyester, glass fiber reinforced, self-extinguishing nach UL94V-0• contacts: Cu-alloy• contact surface: gold over nickel• housing frame: steel plate, nickel layer and tin-plated• operating temperature range: -55...+125°C

Specifications

manufacturer
Manufacturer's name 164A10099X
Number of poles 37
A [mm] 69,7
Width [mm] 54,96
C [mm] 63,5

Unit price

6,09 €

Stock: 86
Further delivery:
CW 06/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
