DS 50 P-L

high quality version

• solder buckets
• machined contacts
• insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)
• contact material: Cu-alloy
• cotact surface: nickel, gold-plated
• housing frame: steel plate, nickel layer and tin-plated
• operating temperature range: -55...+125°C

DS _ P-L

DS 50 P-L

28219 DS 50 P-L 163A11109X 163A11109X high quality version. • solder buckets• machined contacts• insulating shell: polyester, glass fiber reinforced, self-extinguishing (UL94V-0)• contact material: Cu-alloy• cotact surface: nickel, gold-plated• housing frame: steel plate, nickel layer and tin-plated• operating temperature range: -55...+125°C

Specifications

manufacturer
Manufacturer's name 163A11109X
Number of poles 50

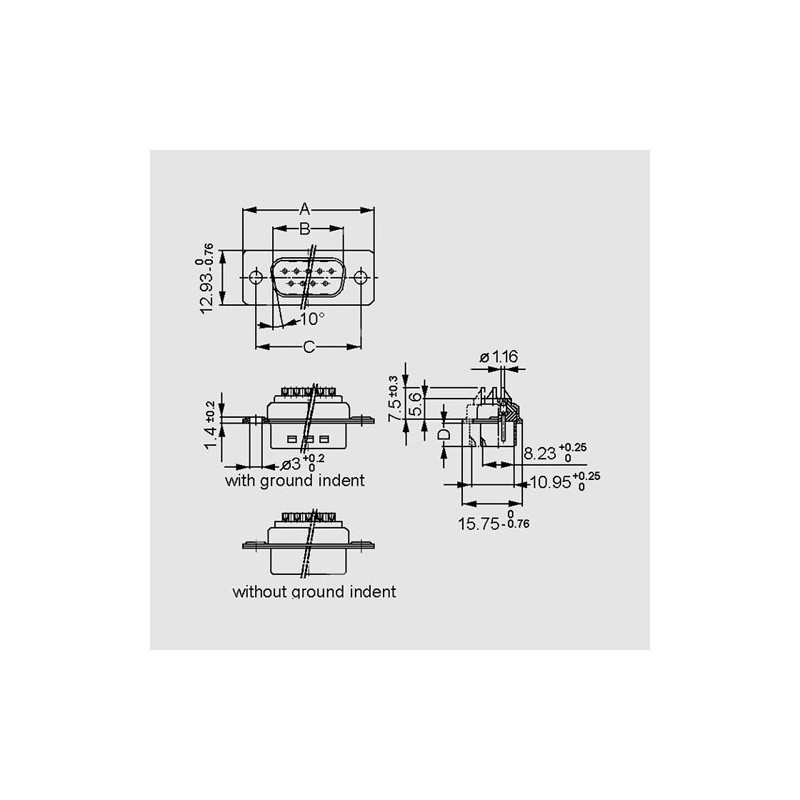

A [mm] 67,31
Width [mm] 52,68
D [mm] -
C [mm] 61,1

Unit price

5,09 €

Stock: 52
Further delivery:
CW 11/2025

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
