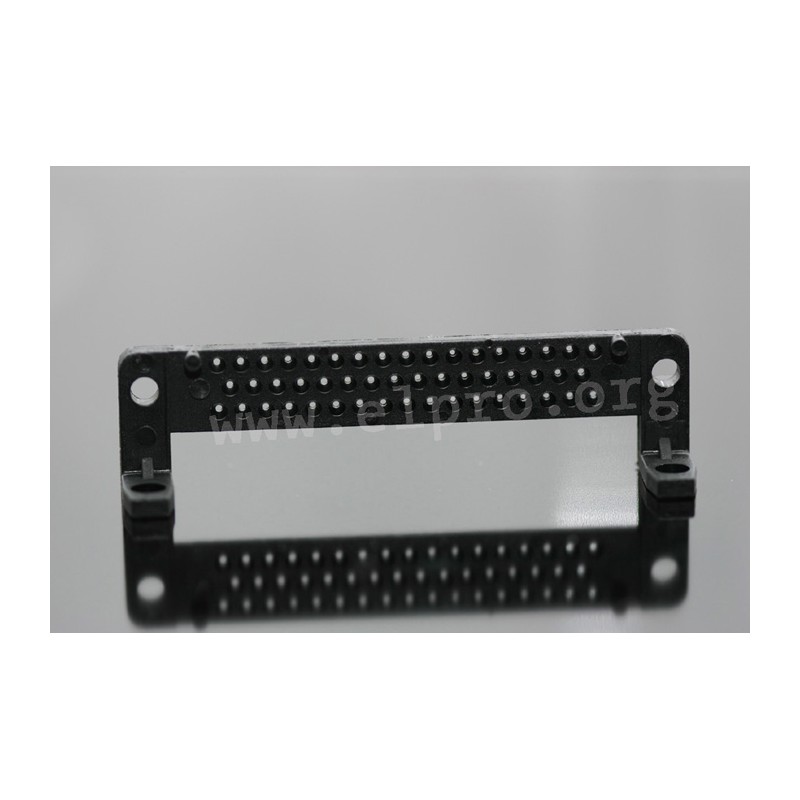

BW 09

for D-Sub connections

* black plastic mounting angle
* 90° angled

BW 09

7197 BW 09 160X10069X 160X10069X for D-Sub connections. * black plastic mounting angle * 90° angled

Specifications

manufacturer
Manufacturer's name 160X10069X

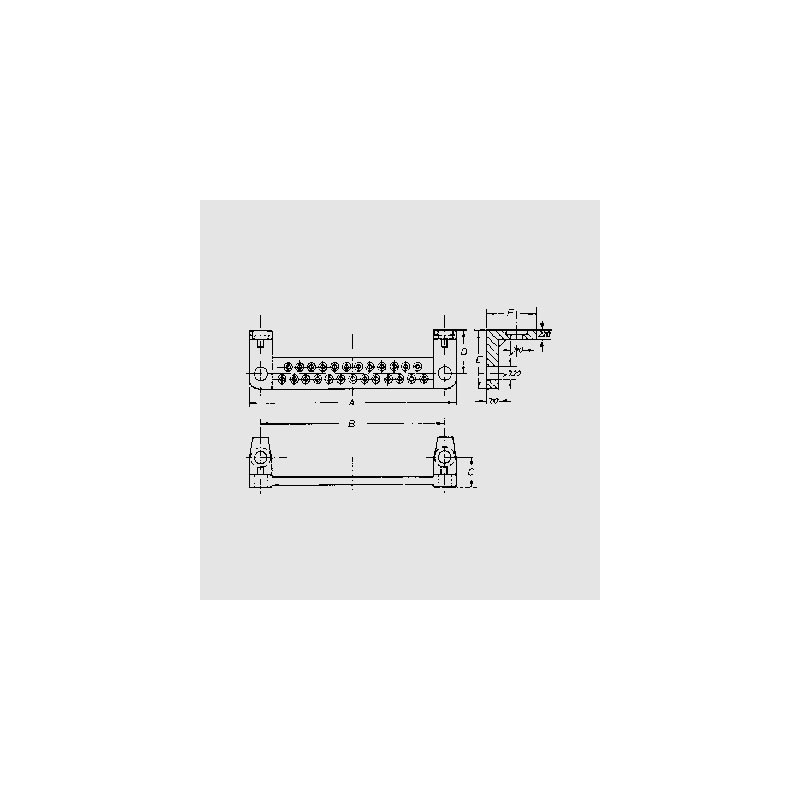

E [mm] 14,6mm
Number of poles 9
A [mm] 30,9
Width [mm] 25
E [mm] 14,6
D [mm] 10,7
F [mm] 12,7
C [mm] 7,4

Unit price

0,327 €

Stock: 209
Further delivery:
CW 10/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
