> Passive elements>D-subminiature connectors>Socket strips>Conec socket strips, IP67, snap-in, soldering pins, angled, 15-006_SlimCon series>15-006613

Manufacturers

15-006613

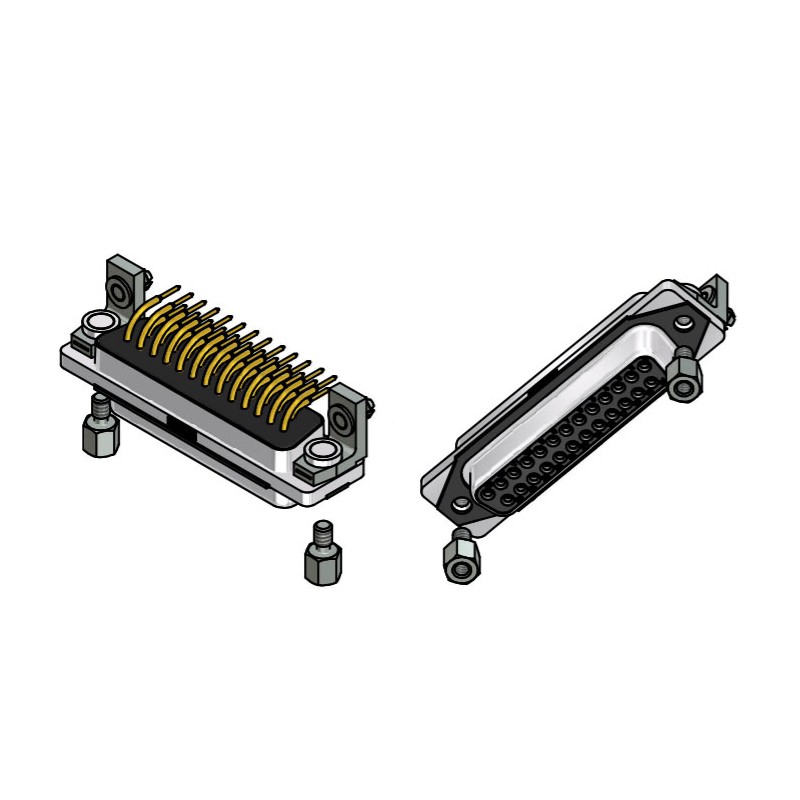

Conec socket strip series 15-006_SlimCon

  • D-sub socket strips
  • with threaded standoffs (UNC 4-40), angled soldering pins (90°) and a PCB clip (1,6mm)
  • IP67 rated
  • suitable for snap-in mounting as well as for wave soldering (265°C/8s)
  • rated voltage: 125V
  • rated current: 5A

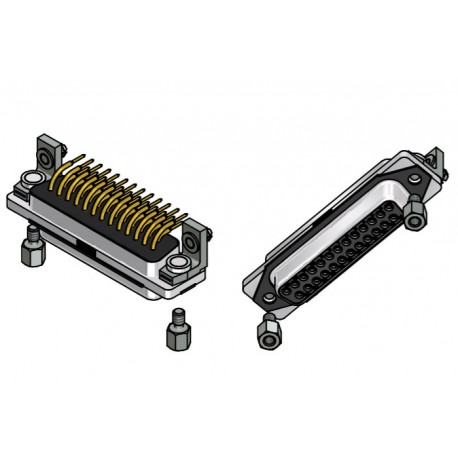

15-006613, Conec socket strips, IP67, snap-in, soldering pins, angled, 15-006SlimCon series

15-006613

240376 15-006613 15-006613 Conec socket strip series 15-006_SlimCon. D-sub socket strips with threaded standoffs (UNC 4-40), angled soldering pins (90°) and a PCB clip (1,6mm) IP67 rated suitable for snap-in mounting as well as for wave soldering (265°C/8s) rated voltage: 125V rated current: 5A

Specifications

manufacturer
Manufacturer's name 15-006613
Number of poles 25
Data Sheet

Unit price

20,29 €

Stock: 28
Further delivery:
CW 10/2025
