122A11059X

female connectors, straight, type F by Conec

• DIN 41612
• type: F
• pitch: 5.08mm
• by Conec
• straight solder pins
• insulation shell: polycarbonate
• contact material: copper alloy
• mating and withdraw force
48-pole: 75N
• air distance: >1.6mm
• creepage distance: >3mm
• operating voltage: 125V AC


• test voltage Ueff
contact/contact: 1550V
contact/mass: 2550V
• operating current at ambient temperature
+20°C: 5.5A
+70°C: 4A
+100°C: 2.5A
• contact resistance: <15mΩ
• insulation resistance: >1011Ω
• temperature range: -55 ...+125°C
• class: 3 (>50 cycles)

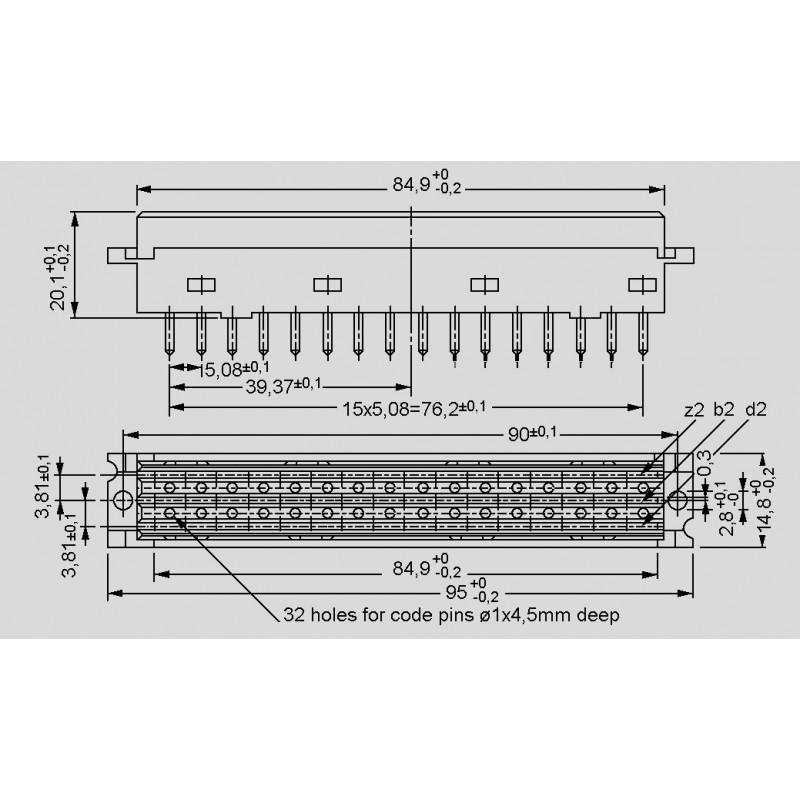

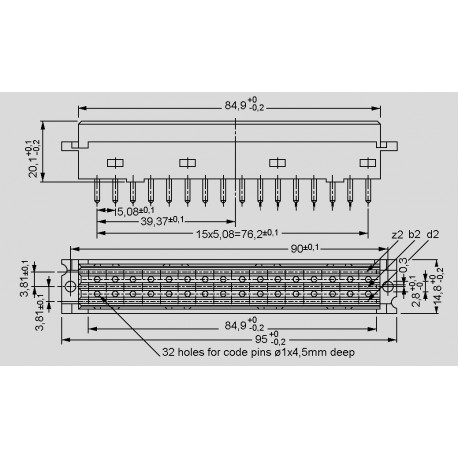

dimensions

122A11059X

42469 122A11059X 122A11059X female connectors, straight, type F by Conec. • DIN 41612• type: F• pitch: 5.08mm• by Conec• straight solder pins• insulation shell: polycarbonate• contact material: copper alloy• mating and withdraw force48-pole: 75N• air distance: &gt;1.6mm• creepage distance: &gt;3mm• operating voltage: 125V AC • test voltage Ueffcontact/contact: 1550Vcontact/mass: 2550V• operating current at ambient temperature+20°C: 5.5A+70°C: 4A+100°C: 2.5A• contact resistance: &lt;15mΩ• insulation resistance: &gt;1011Ω• temperature range: -55 ...+125°C• class: 3 (&gt;50 cycles)

Specifications

manufacturer
Manufacturer's name 122A11059X
Design solder pins
Number of poles 48
Equipping d + b + z
Data Sheet

Unit price

5,89 €

Stock: 80
Further delivery:
CW 10/2025

Minimum order quantity 5 units or
multiples of 5.
