WG A5 6 D10 Z

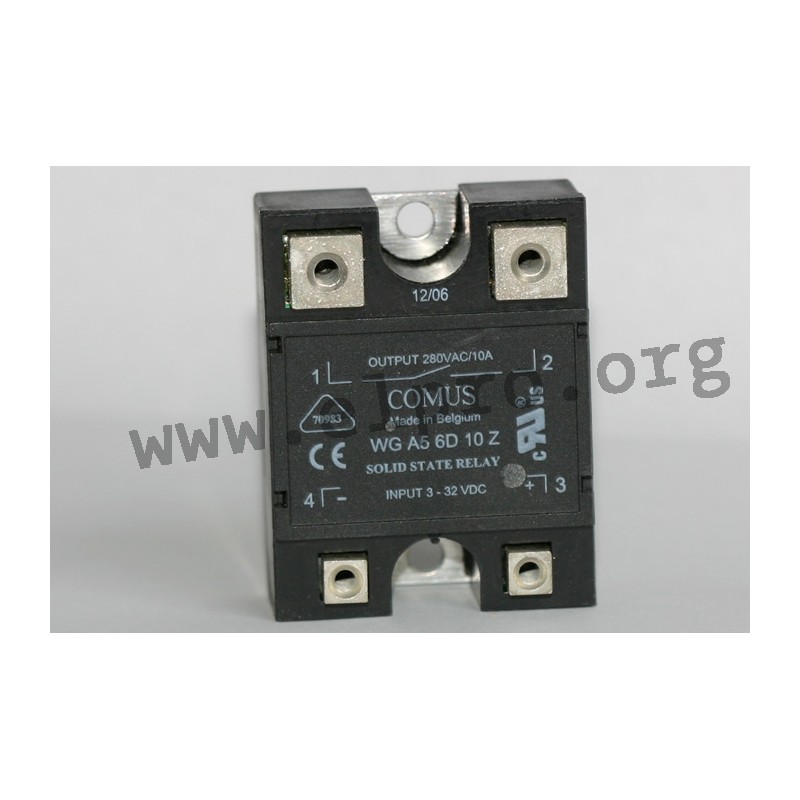

Comus solid state relay series WGA5

  • electronic solid state relays for alternating voltage in a hockey puck housing

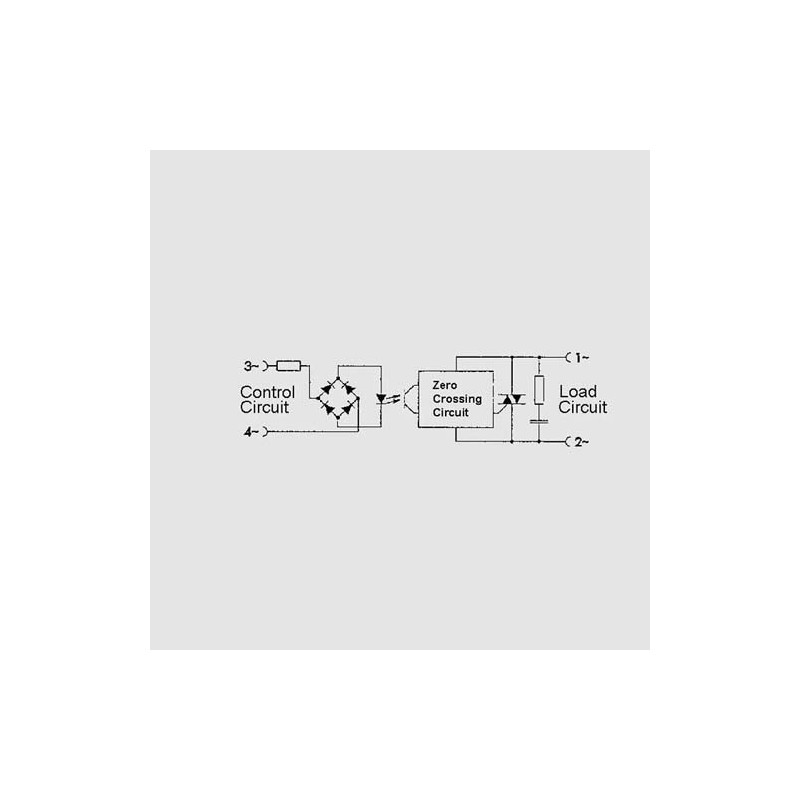

  • zero crossing circuit (WGA5_Z) for capacitive and resistive loads resp. random fire circuit (WGA5_R) for inductive loads
  • with a triac output and an isolation voltage of 4kV
  • operating temperature: -20 to +80°C

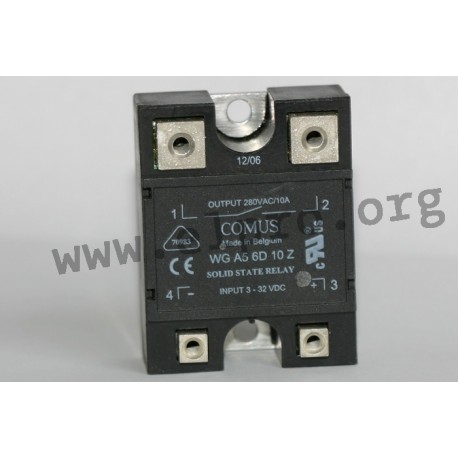

WG A5 series

WG A5 6 D10 Z

28817 WG A5 6 D10 Z WGA5-6D10Z WGA5-6D10Z Comus solid state relay series WGA5. electronic solid state relays for alternating voltage in a hockey puck housing zero crossing circuit (WGA5_Z) for capacitive and resistive loads resp. random fire circuit (WGA5_R) for inductive loads with a triac output and an isolation voltage of 4kV operating temperature: -20 to +80°C

Specifications

manufacturer
Manufacturer's name WGA5-6D10Z
Non repetitive surge peak on-state current [A] 110
Switch positions zero-voltage...
Max. off-state output voltage [V] 600
Forward current, max. [A] 10
Control voltage [V] 3...32
Load voltage [V] 24...280
Data Sheet

Unit price

20,29 €

Stock: 90
Further delivery:
CW 16/2025
