WG A5 6 A40 Z

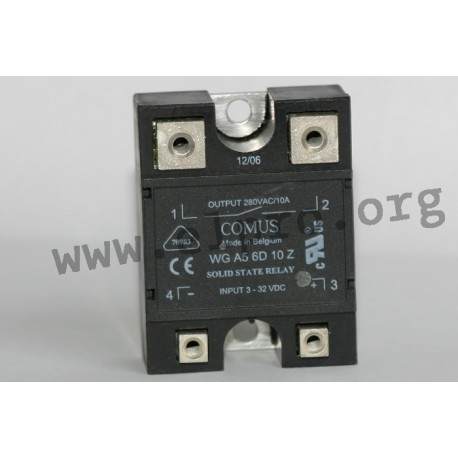

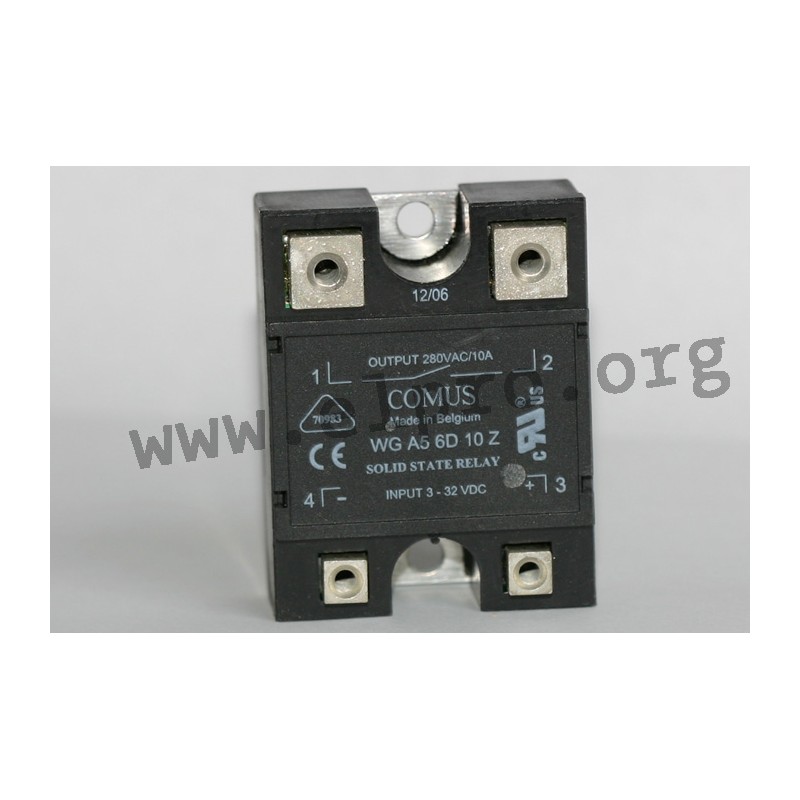

Comus solid state relay series WGA5

  • electronic solid state relays for alternating voltage in a hockey puck housing

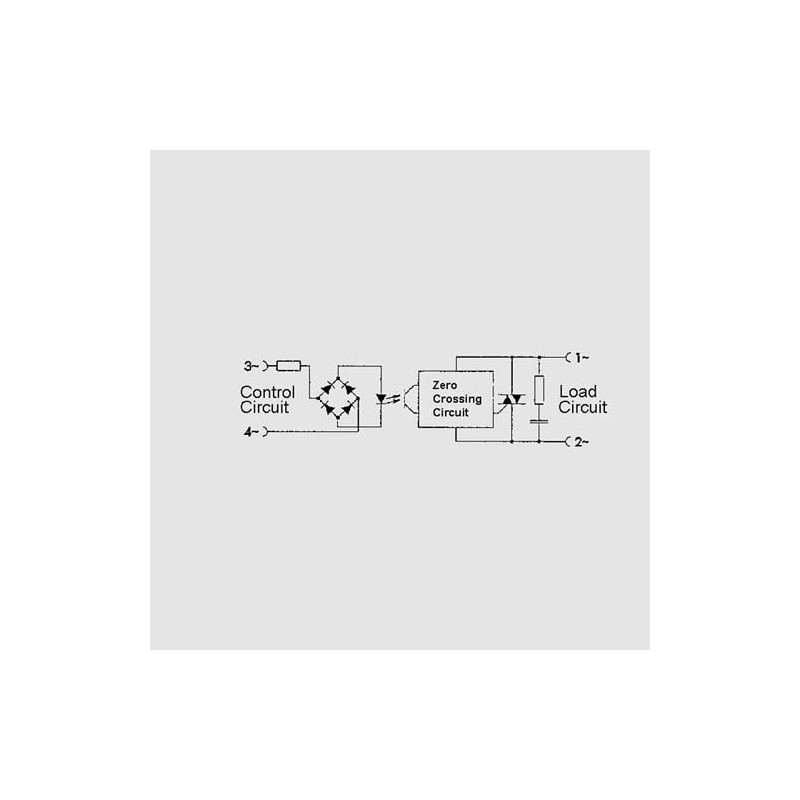

  • zero crossing circuit (WGA5_Z) for capacitive and resistive loads resp. random fire circuit (WGA5_R) for inductive loads
  • with a triac output and an isolation voltage of 4kV
  • operating temperature: -20 to +80°C
WG A5 6 series

WG A5 6 A40 Z

16845 WG A5 6 A40 Z WGA5-6A40Z WGA5-6A40Z Comus solid state relay series WGA5. electronic solid state relays for alternating voltage in a hockey puck housing zero crossing circuit (WGA5_Z) for capacitive and resistive loads resp. random fire circuit (WGA5_R) for inductive loads with a triac output and an isolation voltage of 4kV operating temperature: -20 to +80°C

Specifications

manufacturer
Manufacturer's name WGA5-6A40Z
Non repetitive surge peak on-state current [A] 315
Switch positions zero-voltage...
Max. off-state output voltage [V] 600
Forward current, max. [A] 40
Control voltage [V] 90...280
Load voltage [V] 24...280
Data Sheet

Unit price

31,99 €

Stock: 4
Further delivery:
CW 16/2025
