19510432

LED indicators 8mm

* indicator with satin chrome bezel
* available with prominent or recessed bezel
* IP67 rated between LED and bezel and bezel and frontpanel when using the supplied gasket
* for 230V AC supply
* delivered with protection tube
* rated voltage: 230V AC
* voltage tolerance: +10%
* current, typ. AC/DC: 3mA
* temperature range: -20...+60°C

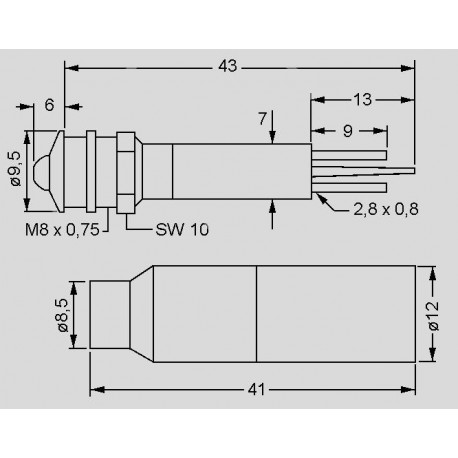

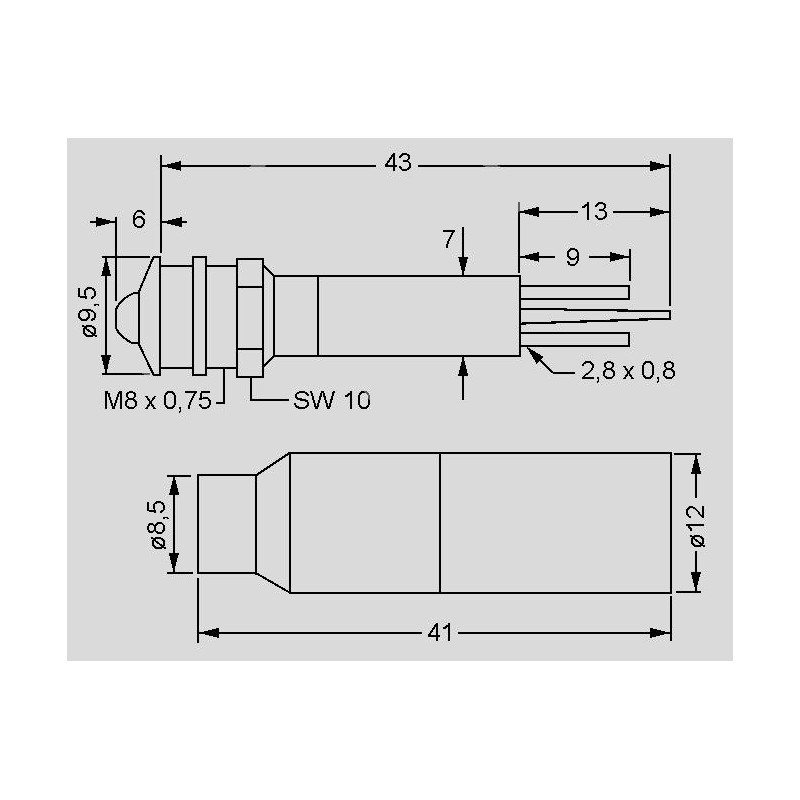

dimensions 19510_

19510432

34042 19510432 19510432 LED indicators 8mm. * indicator with satin chrome bezel* available with prominent or recessed bezel* IP67 rated between LED and bezel and bezel and frontpanel when using the supplied gasket* for 230V AC supply* delivered with protection tube* rated voltage: 230V AC* voltage tolerance: +10%* current, typ. AC/DC: 3mA* temperature range: -20...+60°C

Discontinued items. Only remainder of stock available.

Specifications

Colour yellow
Reflector außen
Luminous intensity [µcd] 7
Data Sheet

Unit price

3,22 €

Stock: 3
