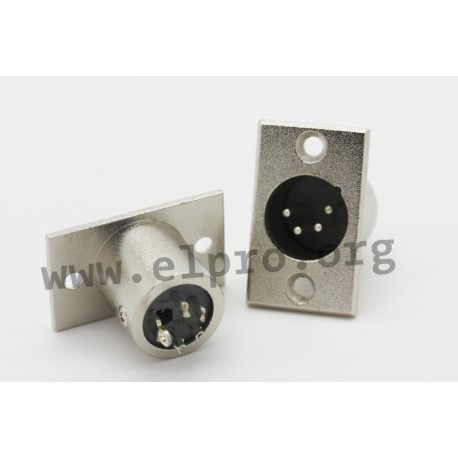

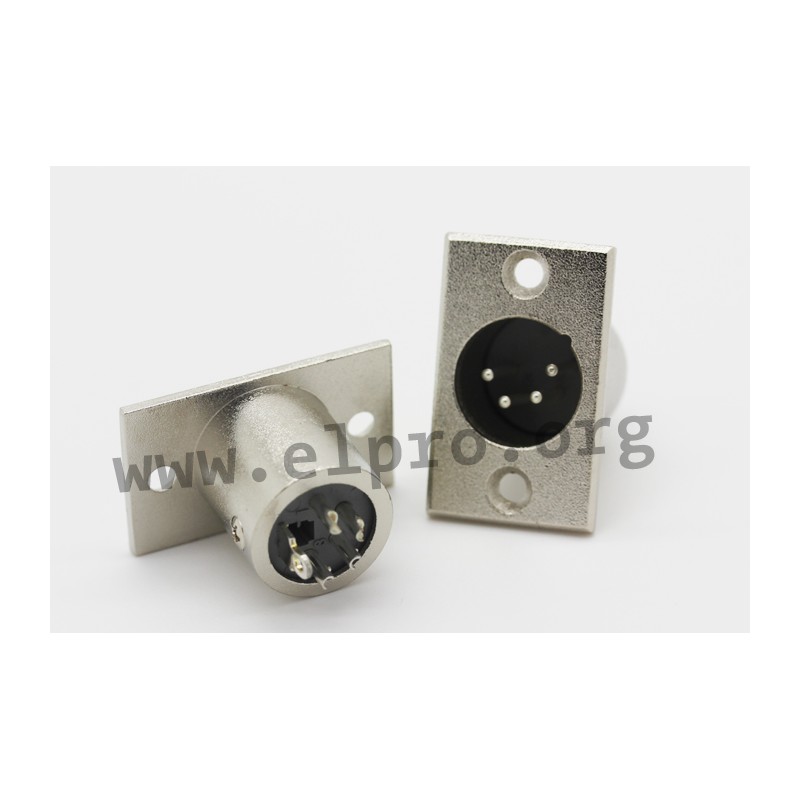

XLR 4 ES V

audio connectors

Robust 4-pole audio plug with solder bucket for chassis mount

• made of chromed metal
• silver-plated contact
• high number of connector cycles (>500)
• housing material: zinc-aluminium alloy / nylon
• housing surface: nickel
• contact material: brass/bronze
• contact surface: silver-plated
• rated current (25°C): 10A
• test voltage: 500V DC
• contact resistance (New State): <10mΩ

XLR 4 ES V

XLR 4 ES V

108732 XLR 4 ES V FC6125 FC6125 audio connectors. Robust 4-pole audio plug with solder bucket for chassis mount • made of chromed metal• silver-plated contact• high number of connector cycles (&gt;500)• housing material: zinc-aluminium alloy / nylon• housing surface: nickel• contact material: brass/bronze• contact surface: silver-plated• rated current (25°C): 10A• test voltage: 500V DC• contact resistance (New State): &lt;10mΩ

Specifications

manufacturer
Manufacturer's name FC6125
E [mm] 4,7
Number of poles 4
A [mm] 22
D [mm] 22
B [mm] 36,3
C [mm] 27,3

Unit price

2,59 €

Stock: 140
Further delivery:
CW 10/2025

Minimum order quantity 5 units or
multiples of 5.
