CP30111

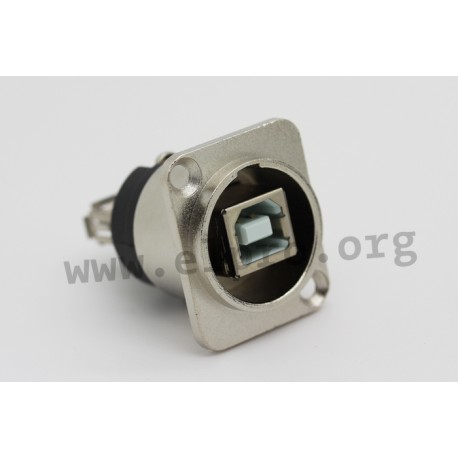

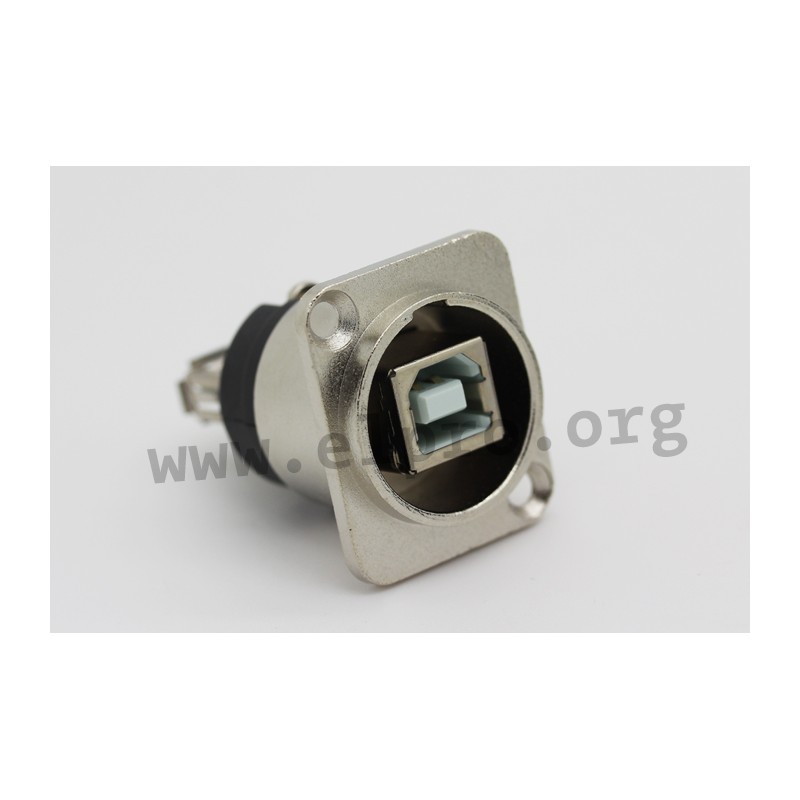

USB-2.0-adapter by Cliff

These adapters in robust zinc/nickel metal XLR housing are connecting B to A. They are suited for 23,6mm Ø panel cutouts. The adapters can be mounted on the back or front side of the panel. They are suitable for professional audio, broadcast and lighting applications. We are offering the following adapters by Cliff: CP30110 and CP30111.

* insulation: PTB (UL94-0)
* contact material: brass
* contact surface: Au-plated
* contact resistance, max: 30mΩ
* insulation resistance, min.: 1000MΩ
* rated current: 1.5A
* rated voltage: 500V
* dielectric strength (1min.): 500VRMS
* temperature range: 0 to +50°C
* short term (10s): +260°C

CP30111

CP30111

108831 CP30111 CP30111 USB-2.0-adapter by Cliff. These adapters in robust zinc/nickel metal XLR housing are connecting B to A. They are suited for 23,6mm Ø panel cutouts. The adapters can be mounted on the back or front side of the panel. They are suitable for professional audio, broadcast and lighting applications. We are offering the following adapters by Cliff: CP30110 and CP30111.* insulation: PTB (UL94-0)* contact material: brass* contact surface: Au-plated* contact resistance, max: 30mΩ* insulation resistance, min.: 1000MΩ* rated current: 1.5A* rated voltage: 500V* dielectric strength (1min.): 500VRMS* temperature range: 0 to +50°C* short term (10s): +260°C

Specifications

manufacturer
Manufacturer's name CP30111
Data Sheet

Unit price

6,09 €

Stock: 81
Further delivery:
CW 06/2025
