CP30090

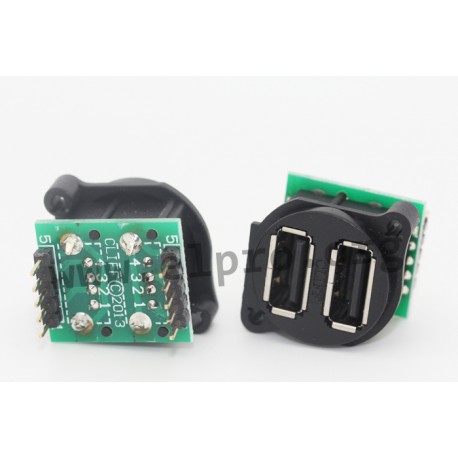

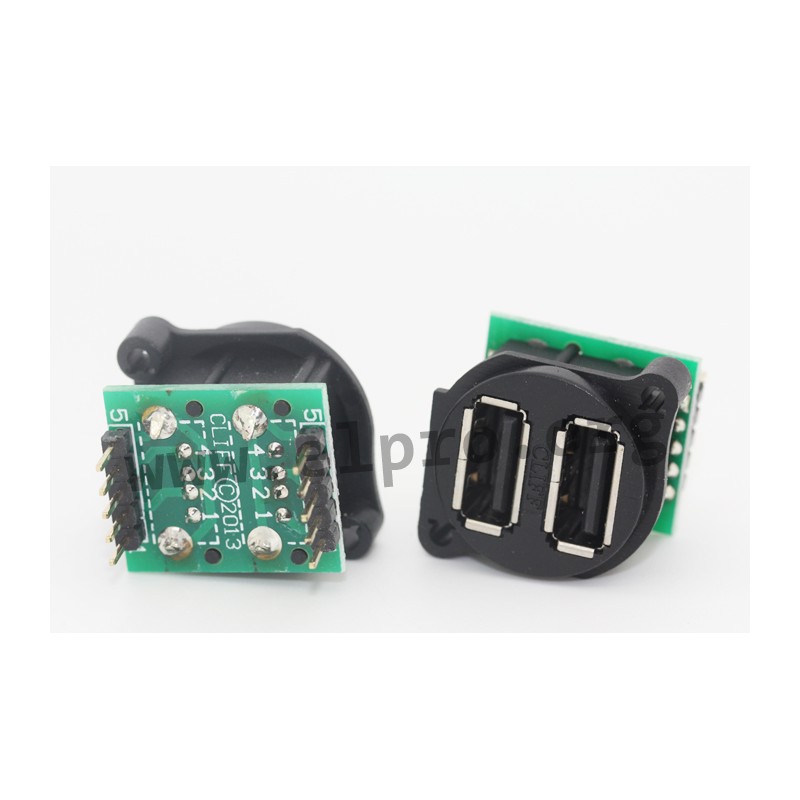

USB-2.0-double adapter

The USB 2.0 double jack in XLR housing ensures maximum density on the PCB. There are two isolated and independent output connections. The devices are configured as two signal contact rows in a grid of 5x2,54mm (0.1") for direct soldering on the board or a connection via fiber cable. The adapters are suitable for audio, broadcast, AV, instrumentation and industrial equipment.

• insulation: PTB (UL94-0)
• contact material: brass
• contact surface: Au-plated
• contact resistance, max: 30mΩ
• insulation resistance, min.: 1000MΩ
• rated current: 1.5A
• rated voltage: 500V
• dielectric strength (1Min.): 500VRMS
• temperature range: -20 to +80°C
• short term (10s): +260°C

CP30090

CP30090

108829 CP30090 CP30090 USB-2.0-double adapter. The USB 2.0 double jack in XLR housing ensures maximum density on the PCB. There are two isolated and independent output connections. The devices are configured as two signal contact rows in a grid of 5x2,54mm (0.1") for direct soldering on the board or a connection via fiber cable. The adapters are suitable for audio, broadcast, AV, instrumentation and industrial equipment. • insulation: PTB (UL94-0)• contact material: brass• contact surface: Au-plated• contact resistance, max: 30mΩ• insulation resistance, min.: 1000MΩ• rated current: 1.5A• rated voltage: 500V• dielectric strength (1Min.): 500VRMS• temperature range: -20 to +80°C• short term (10s): +260°C

Specifications

manufacturer
Manufacturer's name CP30090
Data Sheet

Unit price

7,49 €

Stock: 311
Further delivery:
CW 06/2025
