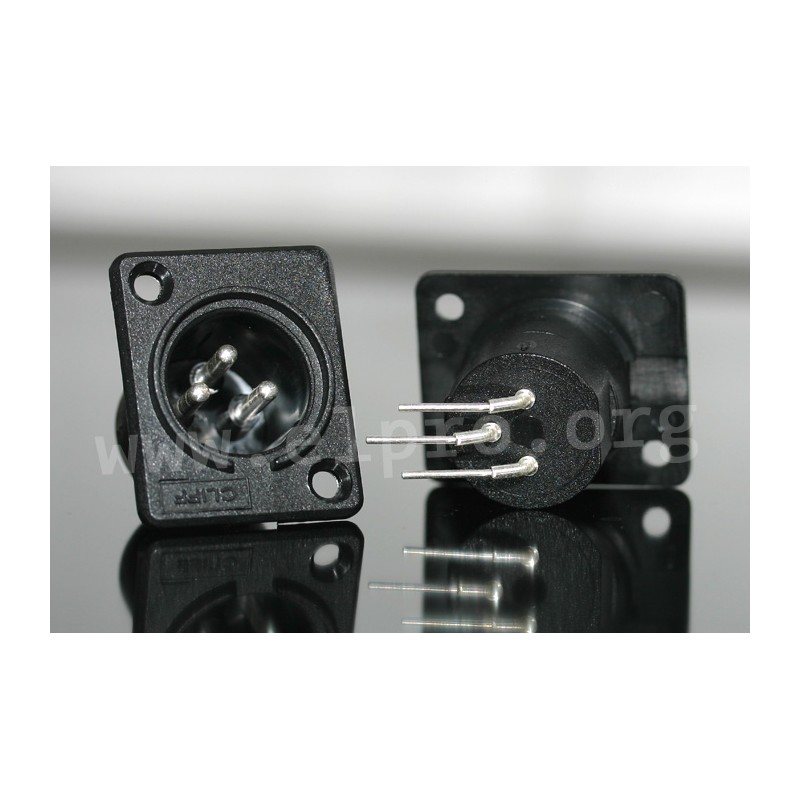

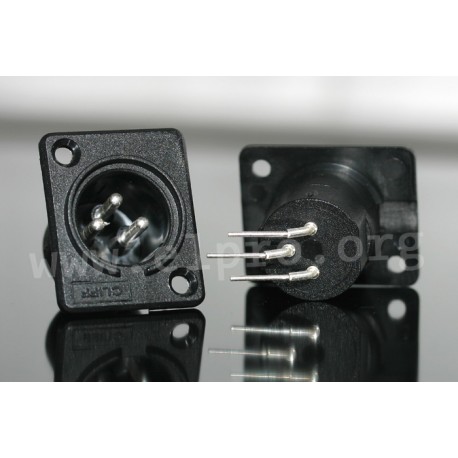

XLR 3 ES A

audio connectors

• reliable 3-pole audio connector
• AXR-/XLR compatible
• built-in connector with holes for M3 flat-head screw
• cable connector with integrated pull-relief and strain relief
• housing material: reinforced nylon
• contact material: brass
• contact surface: 5µm silver through 5µm nickel
• rated current: 16A
• test voltage: 1600VAC
• contact resistance (new state): <3mΩ

XLR 3 ES A

XLR 3 ES A

30216 XLR 3 ES A CP30005 CP30005 audio connectors. , reliable 3-pole audio connector, AXR-/XLR compatible, built-in connector with holes for M3 flat-head screw, cable connector with integrated pull-relief and strain relief, housing material: reinforced nylon, contact material: brass, contact surface: 5&micro;m silver through 5&micro;m nickel, rated current: 16A, test voltage: 1600VAC, contact resistance (new state): &lt;3m&Omega;

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CP30005
Data Sheet

Unit price

2,39 €

Stock: 1
