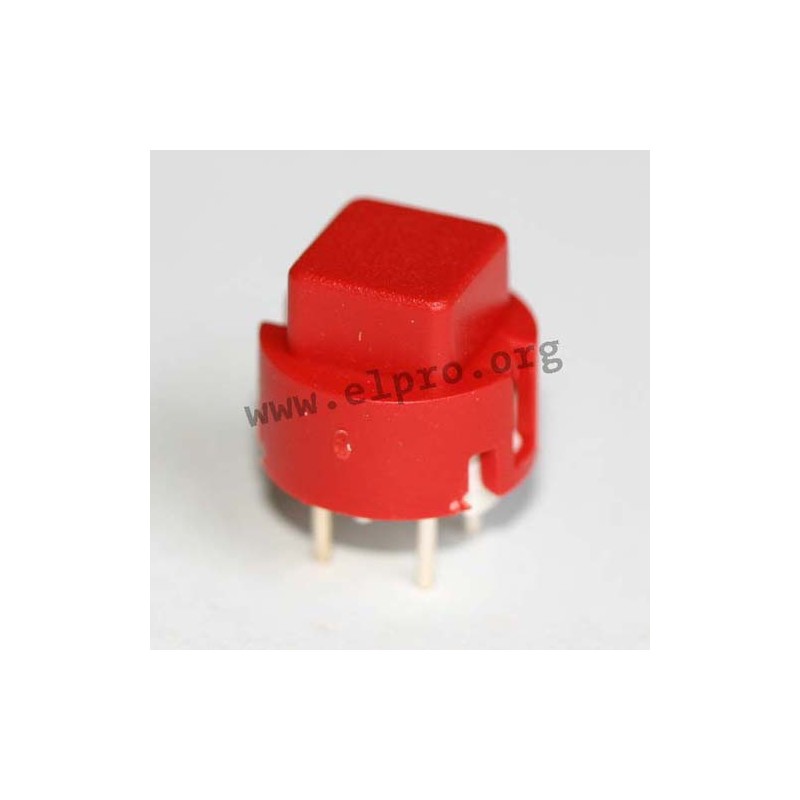

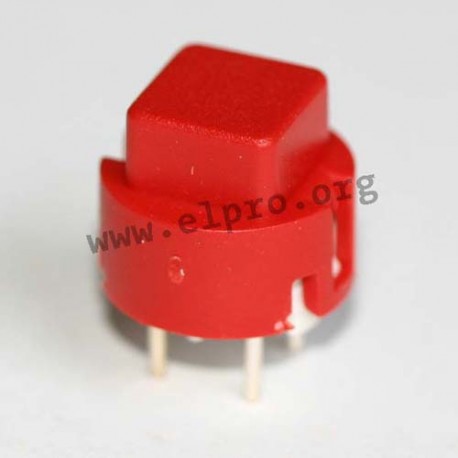

D6Q rot

square button

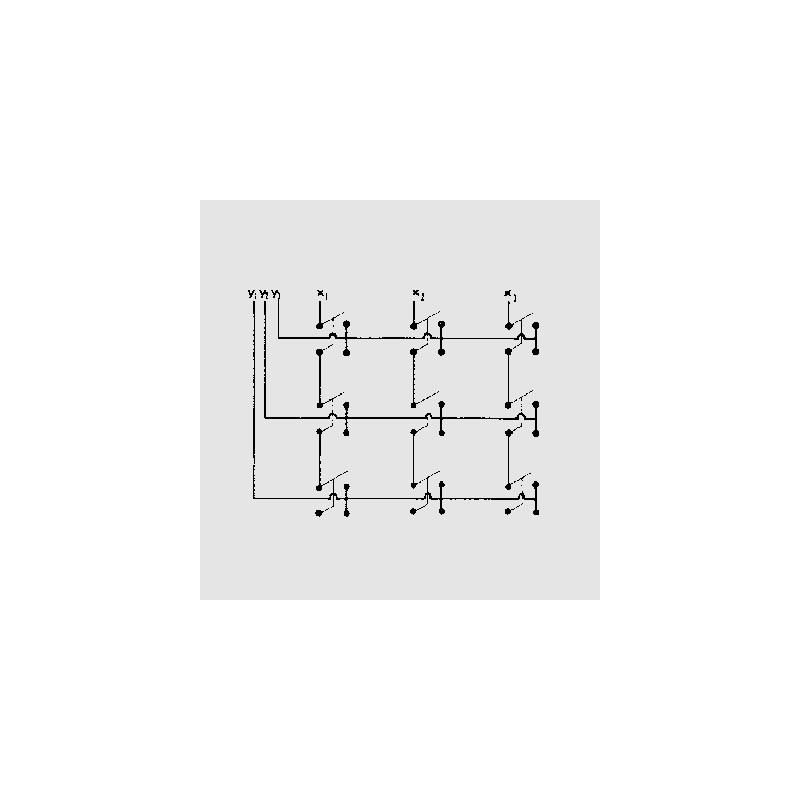

• single pole momentary switch with an SPST contact for mounting on an electronic keyboard
• positive tactile feedback
• colors: grey, red, black
• switching capacity, max.: 3VA
• switching voltage, max.: 32V DC
• switching current, max.: 100mA DC
• test voltage (50Hz, 1min.): 250V
• operating life at max. switching capacity: 2.5x105 operations
• contact resistance: <100mΩ
• insulation resistance: >108 Ω
• contact bounce time: <10ms
• operating force: 1.3N (0.8...1.8N)
• switching travel: 0.2...1mm
• hand soldering: 350°C/3s
• wave soldering: 260°C/5s

D6Q rot

13164 D6Q rot D6C40F1LFS D6C40F1LFS square button. • single pole momentary switch with an SPST contact for mounting on an electronic keyboard• positive tactile feedback• colors: grey, red, black• switching capacity, max.: 3VA• switching voltage, max.: 32V DC• switching current, max.: 100mA DC• test voltage (50Hz, 1min.): 250V• operating life at max. switching capacity: 2.5x105 operations• contact resistance: &lt;100mΩ• insulation resistance: &gt;108 Ω• contact bounce time: &lt;10ms• operating force: 1.3N (0.8...1.8N)• switching travel: 0.2...1mm• hand soldering: 350°C/3s• wave soldering: 260°C/5s

Specifications

manufacturer
Manufacturer's name D6C40F1LFS
Colour red

Unit price

0,998 €

Stock: 5295
Further delivery:
CW 14/2025

Minimum order quantity 1 to 20 units or multiples of 25 plus 0 to 20 .
