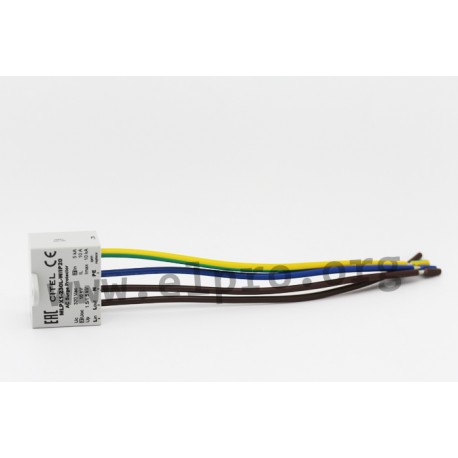

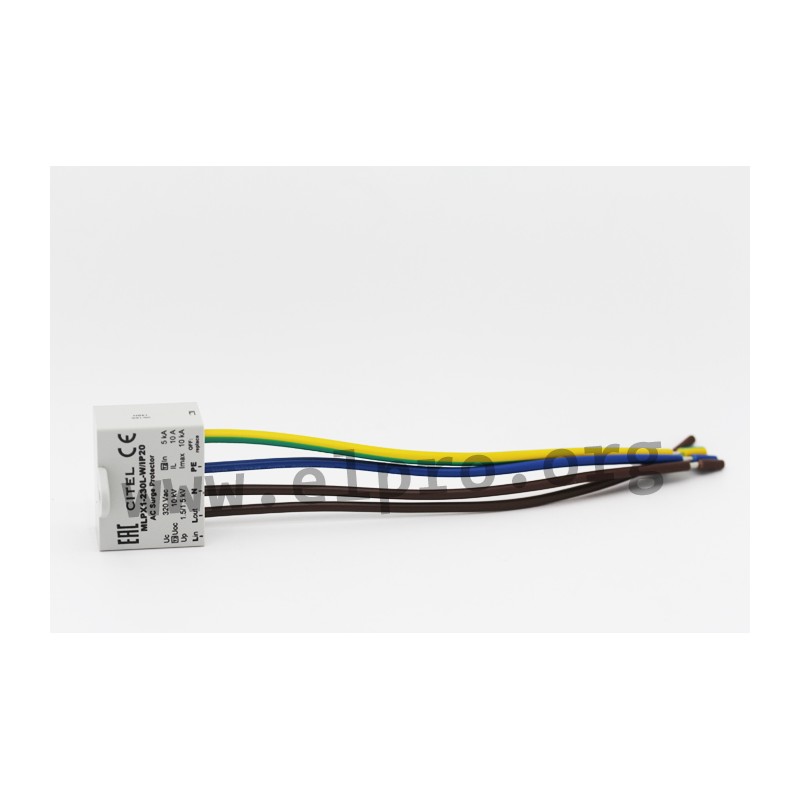

MLPX1-230L-W/IP20

Citel surge protection device series MLPC and MLPX

Type 2+3 surge protection devices (SPD) in a plastic housing (IP20/IP67) with protection class I (MLPC1_, MLPX1_) / protection class II (MLPC2_, MLPX2_) and a status indicator. These devices are suitable for mounting into terminal devices and can be connected by spring terminals (MLPC_) or by stranded wires. They protect against earthbound potential increases (SKL I) as well as against overvoltages from the grid, are hardwired and comply with EN61347-11 as well as VDE0675. We offer the following types of this Citel series: MLPC1-230L-R, MLPC2-230L-R, MLPX1-230L-W (double insulated cables), MLPX1-230L-W/IP20, MLPX2-230L-W (double insulated cables) and MLPX2-230L-W/IP20.

  • protected phases: 1
  • SPD: type 2+3
  • maximal leakage current: 10kA
  • protection level: 1500V AC
  • circuit isolation: yes
  • operating temperature: -40 to +85°C
MLPX1-230L-W/IP20

MLPX1-230L-W/IP20

112292 MLPX1-230L-W/IP20 MLPX1-230L-W/IP20 Citel surge protection device series MLPC and MLPX. Type 2+3 surge protection devices (SPD) in a plastic housing (IP20/IP67) with protection class I (MLPC1_, MLPX1_) / protection class II (MLPC2_, MLPX2_) and a status indicator. These devices are suitable for mounting into terminal devices and can be connected by spring terminals (MLPC_) or by stranded wires. They protect against earthbound potential increases (SKL I) as well as against overvoltages from the grid, are hardwired and comply with EN61347-11 as well as VDE0675. We offer the following types of this Citel series: MLPC1-230L-R, MLPC2-230L-R, MLPX1-230L-W (double insulated cables), MLPX1-230L-W/IP20, MLPX2-230L-W (double insulated cables) and MLPX2-230L-W/IP20. protected phases: 1 SPD: type 2+3 maximal leakage current: 10kA protection level: 1500V AC circuit isolation: yes operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name MLPX1-230L-W/IP20
Data Sheet

Unit price

15,99 €

Stock: 9
Further delivery:
CW 03/2025
