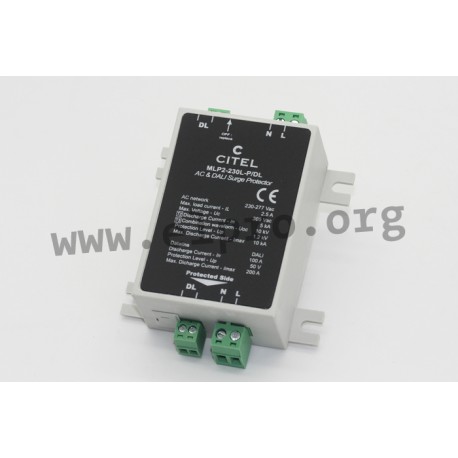

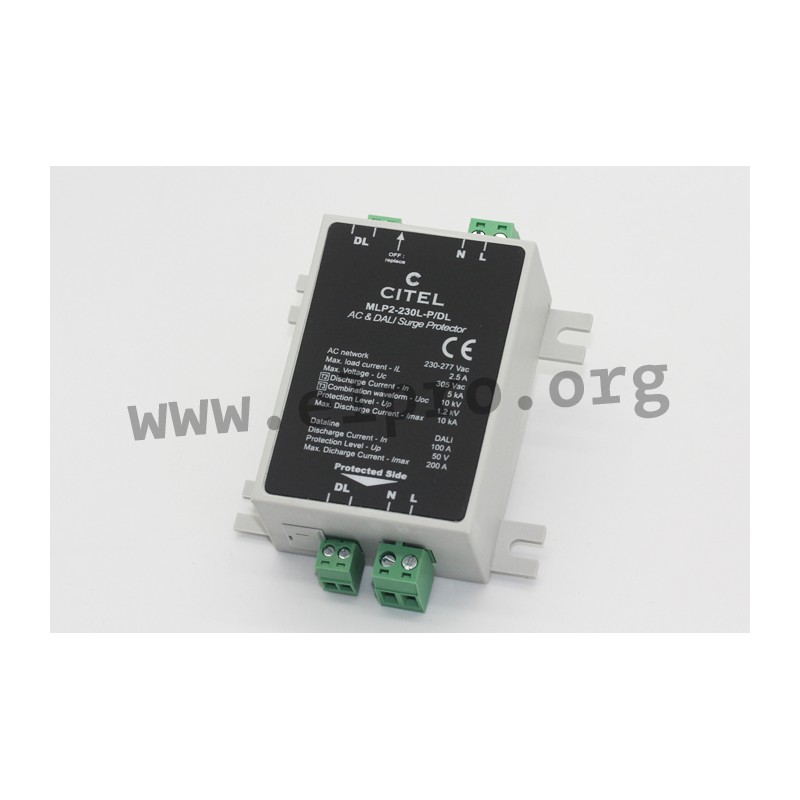

MLP2-230L-P/DL

Citel surge protection device series MLP

Surge protectors in a plastic case (IP20/65) with a combined protection for the power supply as well as the data and control line. These protectors with an optical and electrical (optional) error signaling are suited for protection class I (MLP1_) or II (MLP2_) applications. They meet highest outdoor requirements according to IEEE as well as ANSI and can be mounted on or in the immediate vicinity of the device to be protected. We offer the following types of this MLP series: MLP1-230L-P/DL, MLP1-230L-W/DL, MLP1-230L-P/RS, MLP1-230L-W/RS, MLP2-230L-P/DL, MLP2-230L-W/DL, MLP2-230L-P/RS and MLP2-230L-W/RS.

  • protected phases: 1
  • SPD type: 2+3
  • maximal leakage current: 10kA
  • protection level MLP_DL: 1500V + 40V
  • protection level MLP_RS: 1500V + 20V
  • protection class MLP1_: I
  • protection class MLP2_: II
  • protection rating MLP_P/_: IP20
  • protection rating MLP_W/_: IP65
  • circuit isolation: yes
  • termination MLP_P/_: screw terminal
  • termination MLP_W/_: wire
  • additional protection MLP_DL: Dali
  • additional protection MLP_RS: RS485
  • operating temperature: -40 to +85°C
MLP2-230L-P/DL

MLP2-230L-P/DL

112300 MLP2-230L-P/DL MLP2-230L-P/DL Citel surge protection device series MLP. Surge protectors in a plastic case (IP20/65) with a combined protection for the power supply as well as the data and control line. These protectors with an optical and electrical (optional) error signaling are suited for protection class I (MLP1_) or II (MLP2_) applications. They meet highest outdoor requirements according to IEEE as well as ANSI and can be mounted on or in the immediate vicinity of the device to be protected. We offer the following types of this MLP series: MLP1-230L-P/DL, MLP1-230L-W/DL, MLP1-230L-P/RS, MLP1-230L-W/RS, MLP2-230L-P/DL, MLP2-230L-W/DL, MLP2-230L-P/RS and MLP2-230L-W/RS. protected phases: 1 SPD type: 2+3 maximal leakage current: 10kA protection level MLP_DL: 1500V + 40V protection level MLP_RS: 1500V + 20V protection class MLP1_: I protection class MLP2_: II protection rating MLP_P/_: IP20 protection rating MLP_W/_: IP65 circuit isolation: yes termination MLP_P/_: screw terminal termination MLP_W/_: wire additional protection MLP_DL: Dali additional protection MLP_RS: RS485 operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name MLP2-230L-P/DL
Data Sheet

Unit price

23,29 €

Stock: 16
Further delivery:
CW 04/2025
