HSEUREG10001.030(R2)

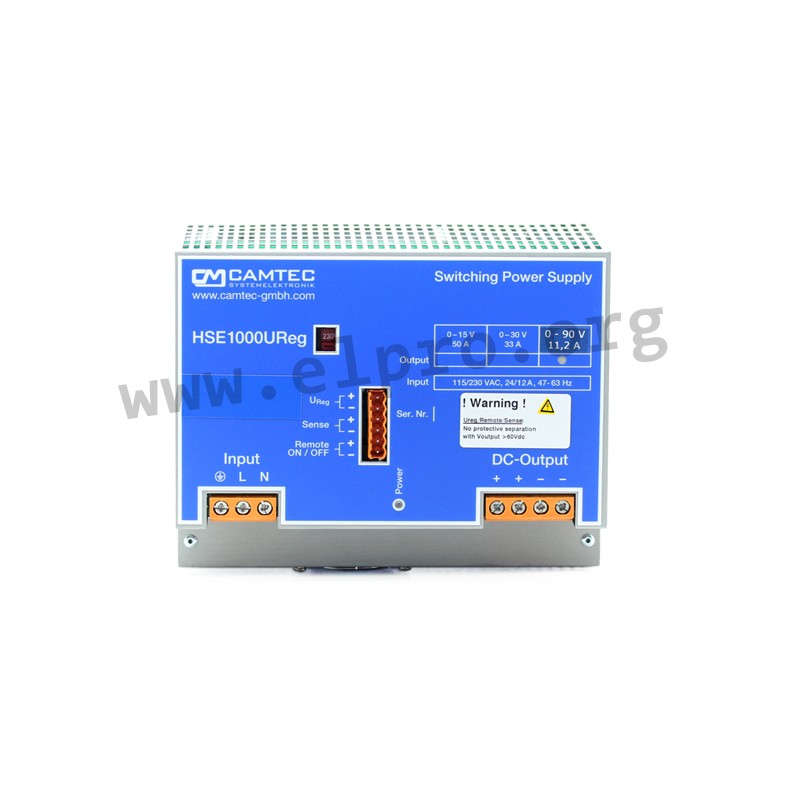

Camtec DIN rail power supply series HSEUREG100001

Switching power supplies in a metal housing (IP20) with 1000W, a parallel function, a remote sense function, protection class I and a remote ON/OFF control. These devices have a programmable output voltage as well as a selectable input voltage and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for DIN rail mounting and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUREG10001.015(R2), HSEUREG10001.030(R2), HSEUREG10001.050(R2), HSEUREG10001.090(R2), HSEUREG10001.130(R2) and HSEUREG10001.180(R2).

  • single output
  • output: 1008 to 1014W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 9,8A
  • maximal input inrush current: 162A
  • interfaces: 0 to 10V, 0 to 20mA
  • output voltage tolerance: ±1,5%
  • connection types: screw terminals
  • operating temperature: -25 to +70°C
  • dimensions: 200x156x115mm
  • weight: 3300g
HSEUREG10001.030(R2), Camtec DIN rail switching power supplies, 1000W, programmable output voltage, HSEUREG100001 series

HSEUREG10001.030(R2)

241015 HSEUREG10001.030(R2) HSEUREG10001.030(R2) Camtec DIN rail power supply series HSEUREG100001. Switching power supplies in a metal housing (IP20) with 1000W, a parallel function, a remote sense function, protection class I and a remote ON/OFF control. These devices have a programmable output voltage as well as a selectable input voltage and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for DIN rail mounting and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUREG10001.015(R2), HSEUREG10001.030(R2), HSEUREG10001.050(R2), HSEUREG10001.090(R2), HSEUREG10001.130(R2) and HSEUREG10001.180(R2). single output output: 1008 to 1014W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC input current: 9,8A maximal input inrush current: 162A interfaces: 0 to 10V, 0 to 20mA output voltage tolerance: ±1,5% connection types: screw terminals operating temperature: -25 to +70°C dimensions: 200x156x115mm weight: 3300g

Specifications

manufacturer
Manufacturer's name HSEUREG10001...
Efficiency [%] 90
Output current [A] 33
Output power [W] 1008
Ripple [mVp-p] 50
Output voltage range [V] 0...30
Data Sheet

Unit price

695,19 €

Stock: 1
Further delivery:
CW 05/2025
