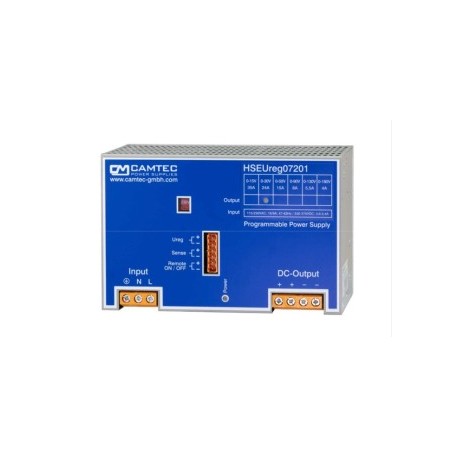

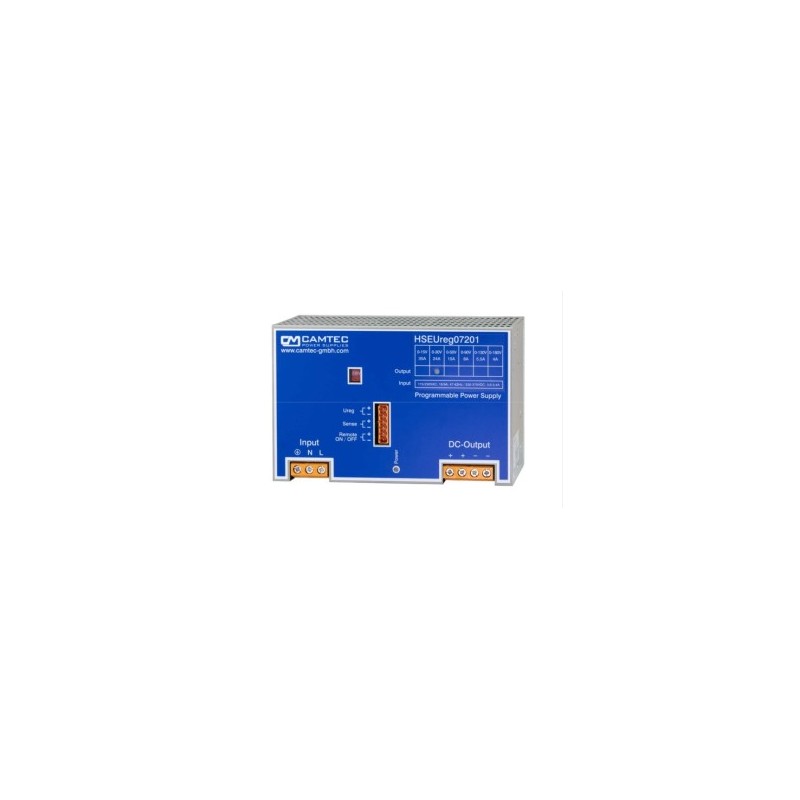

HSEUREG07201.130(R2)

Camtec switching power supplies series HSEUREG07201(R2)

These switching power supplies have a metal housing, their output and input voltage is programmable, as well as they have a parallel function, a remote function and a remote sense. Furthermore these devices are protectet against short circuit, overload, overtemperature, and overvoltage. We offer the following types of this camtec series: HSEUREG07201.090(R2), HSEUREG07201.130(R2), and HSEUREG07201.180(R2).

  • safety norms: EN 61010-1; EN 62368-1; EN 60950-1
  • EMV norms: EN 55032 class B
  • protection class I
  • protection type: IP20
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 7,2A
  • maximal starting current: 162A
  • interfaces: 0 to 10V, 0 to 20mA
  • output voltage tolerance: ±1,5%
  • connection type: screw terminal
  • operating temperature: -25 to +60°C
  • dimensions: 200x130x115mm
  • weight: 3000g
HSEUREG07201.130(R2), Camtec switching power supplies, DIN rail mounting, 720W, HSEUREG07201(R2) series

HSEUREG07201.130(R2)

246814 HSEUREG07201.130(R2) HSEUREG07201.130(R2) Camtec switching power supplies series HSEUREG07201(R2). These switching power supplies have a metal housing, their output and input voltage is programmable, as well as they have a parallel function, a remote function and a remote sense. Furthermore these devices are protectet against short circuit, overload, overtemperature, and overvoltage. We offer the following types of this camtec series: HSEUREG07201.090(R2), HSEUREG07201.130(R2), and HSEUREG07201.180(R2). safety norms: EN 61010-1; EN 62368-1; EN 60950-1 EMV norms: EN 55032 class B protection class I protection type: IP20 input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC input current: 7,2A maximal starting current: 162A interfaces: 0 to 10V, 0 to 20mA output voltage tolerance: ±1,5% connection type: screw terminal operating temperature: -25 to +60°C dimensions: 200x130x115mm weight: 3000g

Specifications

manufacturer
Manufacturer's name HSEUREG07201...
Efficiency [%] 90
Output current range [A] 5,5
Output power [W] 720
Ripple [mVp-p] 200
Output voltage range [V] 0...130
Data Sheet

Unit price

695,19 €

Stock: 0
Further delivery:
CW 04/2025
