HSEUiREG04801.018(R2)

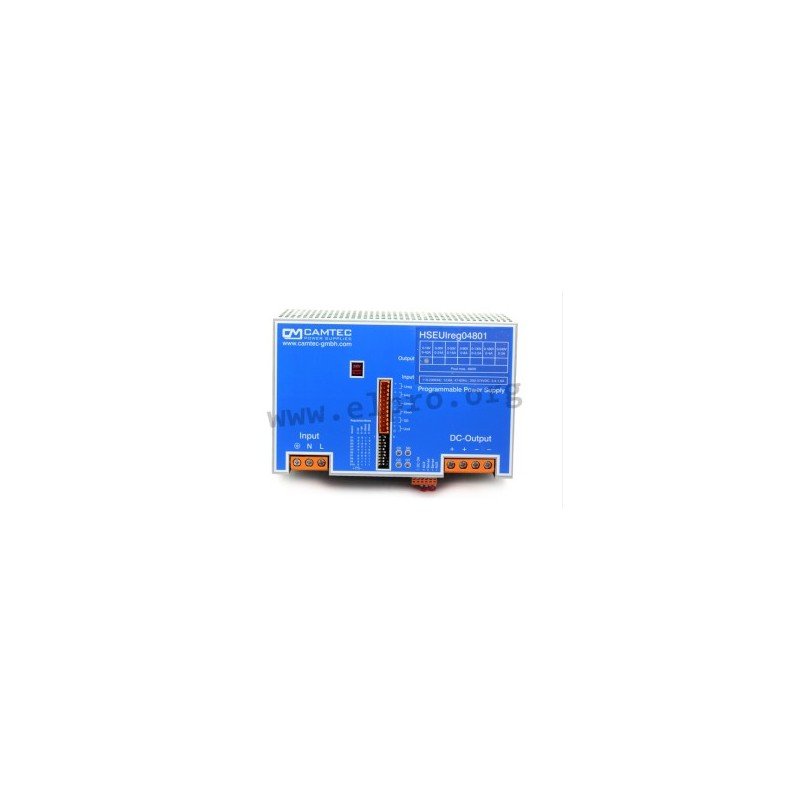

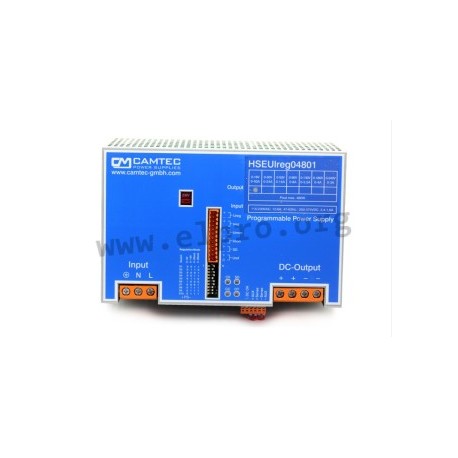

Camtec DIN rail power supply series HSEUiREG04801

Switching power supplies in a metal housing (IP20) with 480W, a remote ON/OFF control, a DC OK signal, protection class I and a remote sense function. These devices have a selectable input voltage, a programmable output voltage as well as a programmable output current and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for DIN rail mounting and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUIREG04801.018(R2), HSEUIREG04801.030(R2), HSEUIREG04801.050(R2), HSEUIREG04801.130(R2) and HSEUIREG04801.240(R2).

  • single output
  • output: 480W
  • input voltage: 90 to 132V AC / 184 to 265V AC (47 to 63Hz), 250 to 375V DC
  • maximal input inrush current: 9,8A
  • output voltage tolerance: ±0,5%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • dimensions: 130x200x115mm
  • weight: 2900g
HSEUIREG04801.018(R2), Camtec DIN rail switching power supplies, 480W, programmable output voltage and current, HSEUiREG04801 se

HSEUiREG04801.018(R2)

241005 HSEUiREG04801.018(R2) HSEUIREG04801.018(R2) HSEUIREG04801.018(R2) Camtec DIN rail power supply series HSEUiREG04801. Switching power supplies in a metal housing (IP20) with 480W, a remote ON/OFF control, a DC OK signal, protection class I and a remote sense function. These devices have a selectable input voltage, a programmable output voltage as well as a programmable output current and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for DIN rail mounting and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HSEUIREG04801.018(R2), HSEUIREG04801.030(R2), HSEUIREG04801.050(R2), HSEUIREG04801.130(R2) and HSEUIREG04801.240(R2). single output output: 480W input voltage: 90 to 132V AC / 184 to 265V AC (47 to 63Hz), 250 to 375V DC maximal input inrush current: 9,8A output voltage tolerance: ±0,5% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C dimensions: 130x200x115mm weight: 2900g

Specifications

manufacturer
Manufacturer's name HSEUIREG0480...
Efficiency [%] 90
Output current [A] 0...40
Output power [W] 480
Ripple [mVp-p] 40
Output voltage range [V] 0...18
Data Sheet

Unit price

827,99 €

Stock: 1
Further delivery:
CW 09/2025
