HPV10001.220(R2)

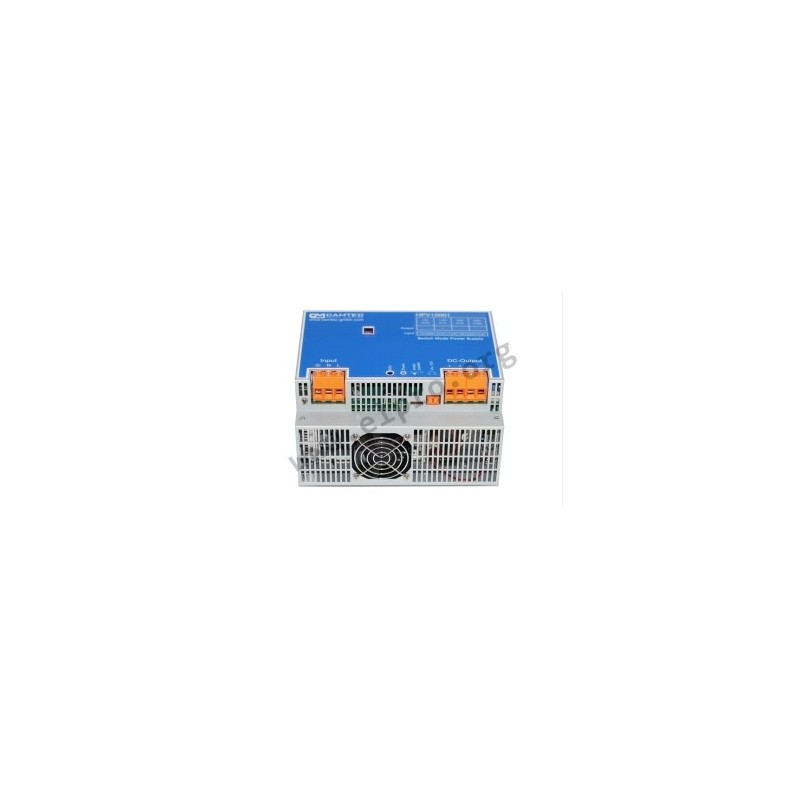

Camtec DIN rail power supply series HPV10001

Switching power supplies in a metal housing (IP20) with 1000W, a DC OK signal and protection class I. These devices are suitable for DIN rail mounting and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a high efficiency and comply with EN61010-1, EN62368-1, EN60950-1, EN60204-1 as well as EN55032 class B. We offer the following types of this Camtec series: HPV10001.072(R2), HPV10001.110(R2), HPV10001.150(R2) and HPV10001.220(R2).

  • single output
  • output: 1001 to 1012W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • maximal input inrush current: 162A
  • input current: 9,8A
  • output voltage tolerance: ±0,1%
  • connection type: screw terminal
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 200x156x115mm
  • weight: 3200g

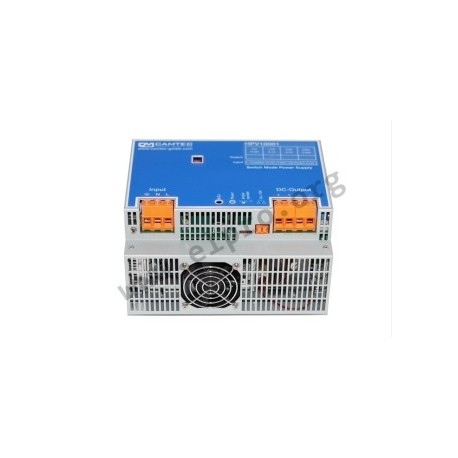

HPV10001.220(R2), Camtec DIN rail switching power supplies, 1000W, HPV10001 series

HPV10001.220(R2)

241028 HPV10001.220(R2) HPV10001.220(R2) Camtec DIN rail power supply series HPV10001. Switching power supplies in a metal housing (IP20) with 1000W, a DC OK signal and protection class I. These devices are suitable for DIN rail mounting and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a high efficiency and comply with EN61010-1, EN62368-1, EN60950-1, EN60204-1 as well as EN55032 class B. We offer the following types of this Camtec series: HPV10001.072(R2), HPV10001.110(R2), HPV10001.150(R2) and HPV10001.220(R2). single output output: 1001 to 1012W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC maximal input inrush current: 162A input current: 9,8A output voltage tolerance: ±0,1% connection type: screw terminal withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2500V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C dimensions: 200x156x115mm weight: 3200g

Specifications

manufacturer
Manufacturer's name HPV10001.220(R2)
Output voltage [V] 220
Efficiency [%] 93
Output current [A] 4,55
Output power [W] 1012
Ripple [mVp-p] 400
Data Sheet

Unit price

669,79 €

Stock: 1
Further delivery:
CW 05/2025
