HPV04801.072(R2)

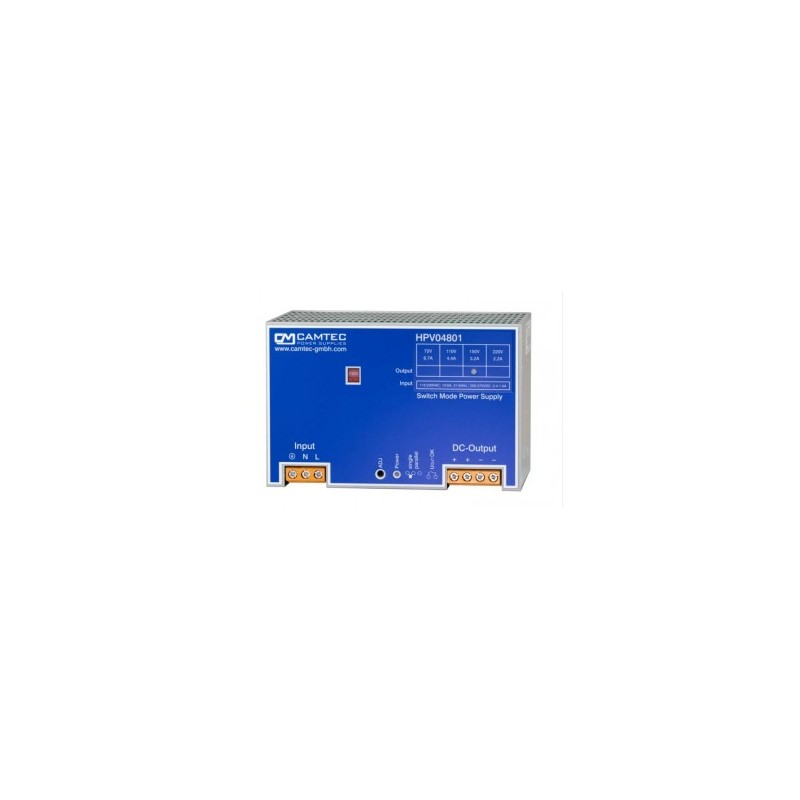

Camtec DIN rail power supply series HPV04801

Switching power supplies in a metal housing (IP20) with 480W, a DC OK signal and protection class I. These devices are suitable for DIN rail mounting (TS35mm) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a high reliability and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HPV04801.072(R2), HPV04801.110(R2), HPV04801.150(R2) and HPV04801.220(R2).

  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC
  • input current: 4,9A
  • maximal input inrush current: 81A
  • connection type: screw terminal
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -25 to +70°C
  • dimensions: 200x130x115mm
  • weight: 2800g

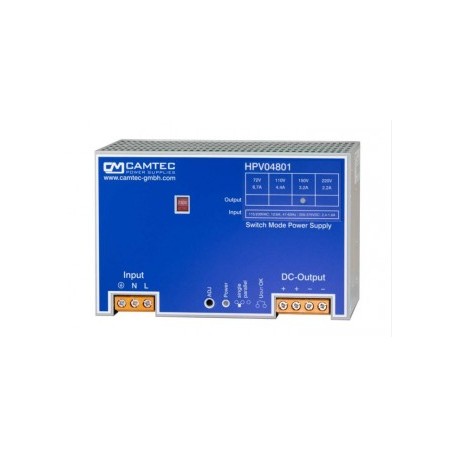

HPV04801.072(R2), Camtec DIN rail switching power supplies, 480W, HPV04801 series

HPV04801.072(R2)

241010 HPV04801.072(R2) HPV04801.072(R2) Camtec DIN rail power supply series HPV04801. Switching power supplies in a metal housing (IP20) with 480W, a DC OK signal and protection class I. These devices are suitable for DIN rail mounting (TS35mm) and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a high reliability and comply with EN61010-1, EN62368-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: HPV04801.072(R2), HPV04801.110(R2), HPV04801.150(R2) and HPV04801.220(R2). single output output: 480W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 375V DC input current: 4,9A maximal input inrush current: 81A connection type: screw terminal withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2500V AC withstand voltage O/P-FG: 2500V DC operating temperature: -25 to +70°C dimensions: 200x130x115mm weight: 2800g

Specifications

manufacturer
Manufacturer's name HPV04801.072(R2)
Output voltage [V] 72
Efficiency [%] 93
Output current [A] 6,7
Output power [W] 480
Ripple [mVp-p] 150
Data Sheet

Unit price

382,79 €

Stock: 2
Further delivery:
CW 05/2025
