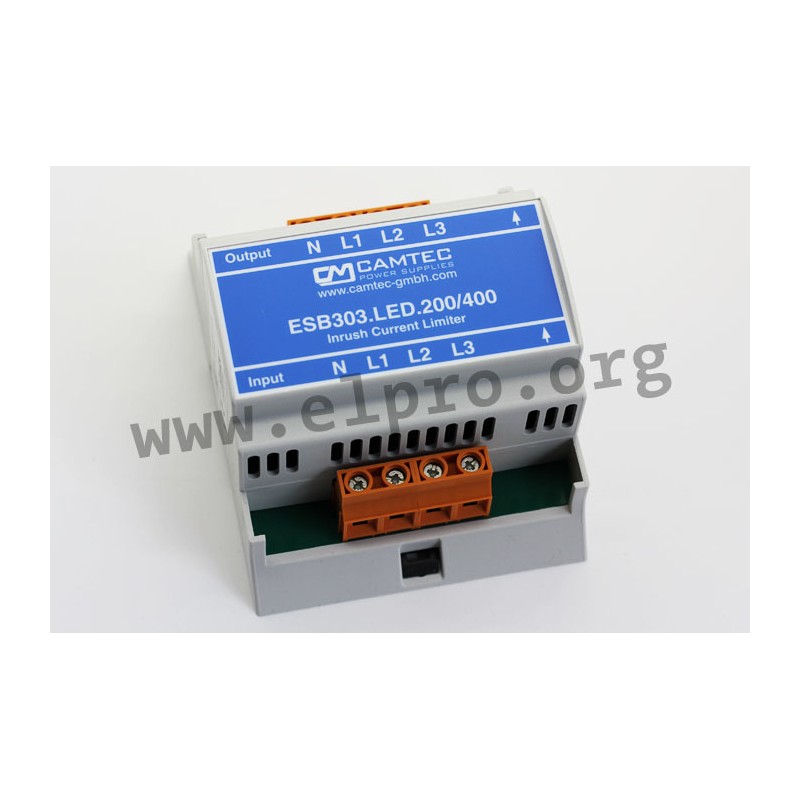

ESB303.LED.200/400

Camtec inrush current limiter series ESB001/ESB101(R2)/ESB201(R2)/ESB303(R2)/ESB00351(R2)

Single- (ESB101_/ESB201_) resp. three-phase (ESB303_) peak / RMS current limiters in a plastic housing (IP20/UL94V-0) for capacitive loads (1000µF to 10.000µF). These devices have an integrated bypass relay as well as a built-in temperature monitoring and comply with EN60950-1, EN61010-1, EN62368-1 as well as EN55032. We offer various types of this Camtec series.

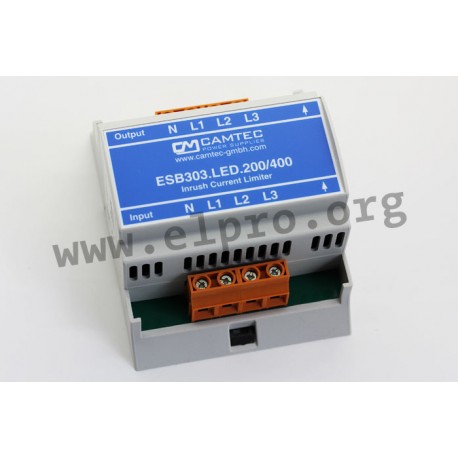

ESB303.LED.200/400, Camtec inrush current limiters

ESB303.LED.200/400

138334 ESB303.LED.200/400 ESB303.LED.200/400(R2) ESB303.LED.200/400(R2) Camtec inrush current limiter series ESB001/ESB101(R2)/ESB201(R2)/ESB303(R2)/ESB00351(R2). Single- (ESB101_/ESB201_) resp. three-phase (ESB303_) peak / RMS current limiters in a plastic housing (IP20/UL94V-0) for capacitive loads (1000µF to 10.000µF). These devices have an integrated bypass relay as well as a built-in temperature monitoring and comply with EN60950-1, EN61010-1, EN62368-1 as well as EN55032. We offer various types of this Camtec series.

Specifications

manufacturer
Manufacturer's name ESB303.LED.2...
Switching current, max. [A] 48
R.M.S. current limiting, max. [A] 33,9
Release time [ms] 800
Limiting intervall, min. [ms] 1200
Capacity [µF] 6000
Data Sheet

Unit price

84,19 €

Stock: 145
Further delivery:
CW 10/2025
