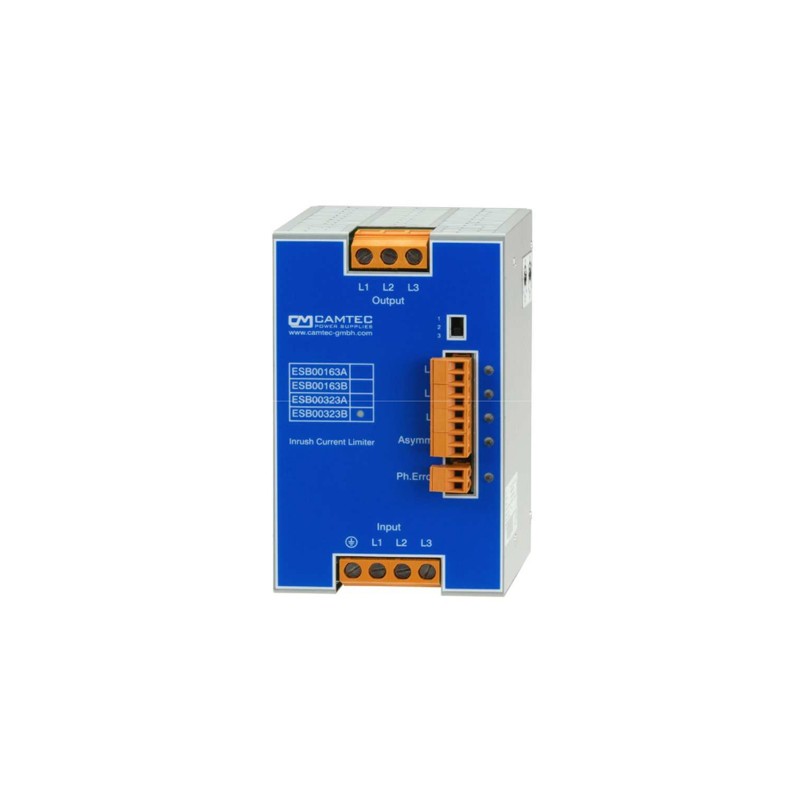

ESB00323A(R2)

Camtec inrush current limiter series ESB00163(R2)/ESB00323(R2)

Peak and RMS inrush current limiters with an integrated phase monitoring, a built-in temperature monitoring and protection class I. These devices are suitable for capacitive loads (up to 2000µF) and are IP20 rated. They have an integrated bypass relay and comply with EN61010-1, EN62368-1, EN60204-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: ESB00163B(R2) and ESB00323B(R2).

  • AC voltage range: 340 to 460V AC (47 to 63Hz)
  • input current ESB00163_: 16A
  • input current ESB00323_: 32A
  • connection type: screw terminal
  • operating temperature: -40 to +70°C
  • dimensions: 95x155x122mm
  • weight: 1100g
ESB00323A(R2), Camtec inrush current limiters, ESB00163(R2)/ESB00323(R2) series

ESB00323A(R2)

246832 ESB00323A(R2) ESB00323A(R2) Camtec inrush current limiter series ESB00163(R2)/ESB00323(R2). Peak and RMS inrush current limiters with an integrated phase monitoring, a built-in temperature monitoring and protection class I. These devices are suitable for capacitive loads (up to 2000µF) and are IP20 rated. They have an integrated bypass relay and comply with EN61010-1, EN62368-1, EN60204-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Camtec series: ESB00163B(R2) and ESB00323B(R2). AC voltage range: 340 to 460V AC (47 to 63Hz) input current ESB00163_: 16A input current ESB00323_: 32A connection type: screw terminal operating temperature: -40 to +70°C dimensions: 95x155x122mm weight: 1100g

Specifications

manufacturer
Manufacturer's name ESB00323A(R2)
R.M.S. current limiting, max. [A] 48
Limiting intervall, min. [ms] 1000
Limiting time [ms] 240
Capacity [µF] 2000
Data Sheet

Unit price

436,59 €

Stock: 0
Further delivery:
CW 05/2025
