CPS-I1500.018(R2)

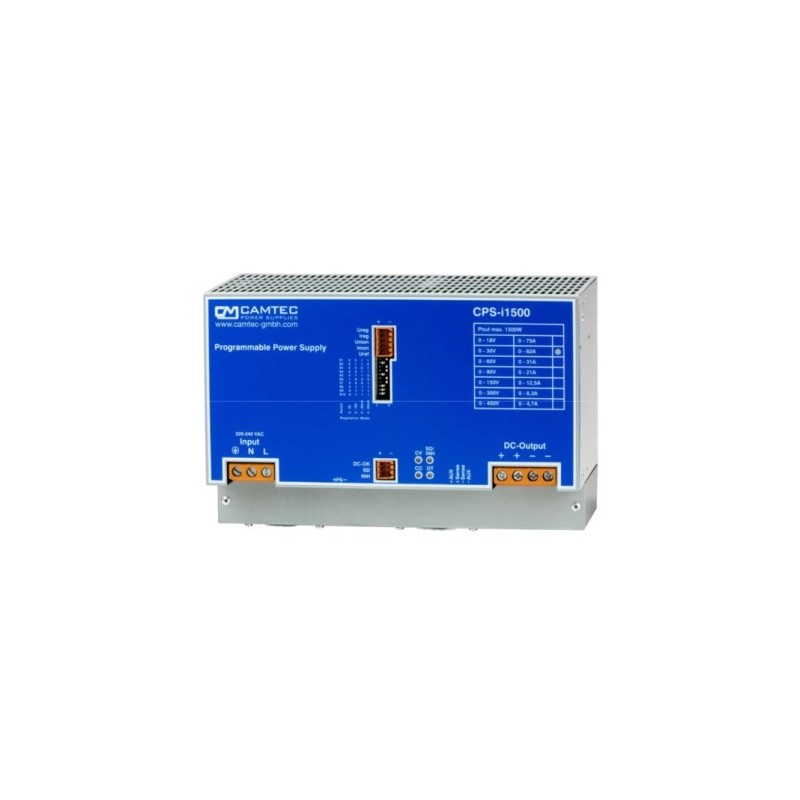

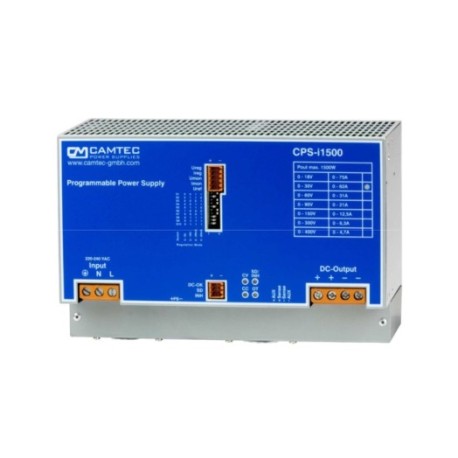

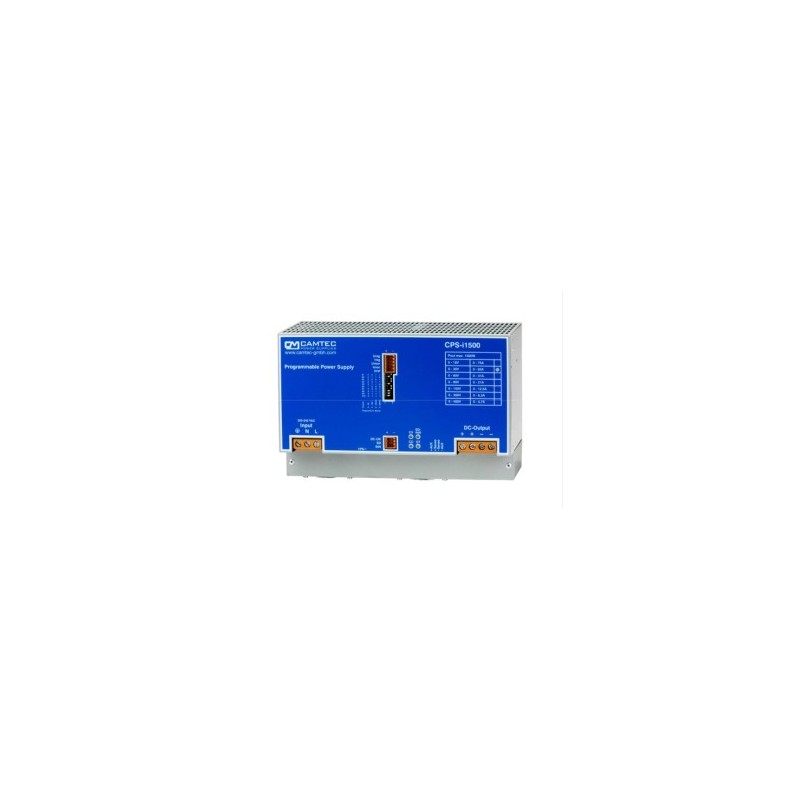

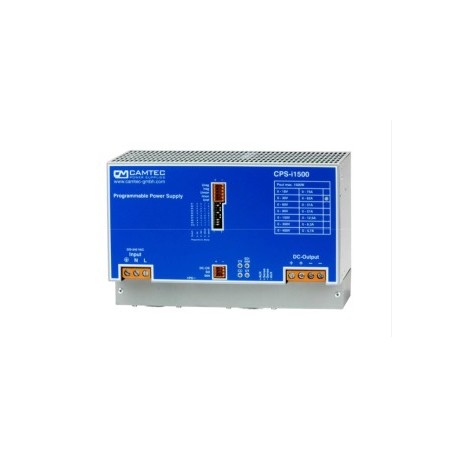

Camtec switching power supplies series CPS-i1500(R2)

These switching power supplies have a metal housing, their output voltage and current is programmable, as well as they have a remote function and a remote sense. These devices are suitable for DC-OK signals and furthermore they are protectet against short circuit, overload, overtemperature, and overvoltage. We offer the following types of this camtec series: CPS-i1500.018(R2), CPS-i1500.030(R2), and CPS-i1500.060(R2).

  • safety norms: EN 61010-1; EN 62368-1; EN 60950-1; EN 60204-1
  • EMV norms: EN 55032 class B; EN 55032 class A
  • protection class I
  • protection type: IP20
  • input voltage: 184 to 264V AC (47 to 63Hz)
  • input current: 13,5A
  • maximal starting current: 20,7A
  • output voltage tolerance: ±0,05%
  • connection type: screw terminal
  • operating temperature: -25 to +70°C
  • isolation voltage: 3000V (I/P-O/P), 2500V (I/P-FG), 500V (O/P-FG)
  • dimensions: 250x161x120mm
  • weight: 4100g
CPS-I1500.018(R2), Camtec switching power supplies, DIN rail mounting, 1500W, CPS-i1500(R2) series

CPS-I1500.018(R2)

246828 CPS-I1500.018(R2) CPS-I1500.018(R2) Camtec switching power supplies series CPS-i1500(R2). These switching power supplies have a metal housing, their output voltage and current is programmable, as well as they have a remote function and a remote sense. These devices are suitable for DC-OK signals and furthermore they are protectet against short circuit, overload, overtemperature, and overvoltage. We offer the following types of this camtec series: CPS-i1500.018(R2), CPS-i1500.030(R2), and CPS-i1500.060(R2). safety norms: EN 61010-1; EN 62368-1; EN 60950-1; EN 60204-1 EMV norms: EN 55032 class B; EN 55032 class A protection class I protection type: IP20 input voltage: 184 to 264V AC (47 to 63Hz) input current: 13,5A maximal starting current: 20,7A output voltage tolerance: ±0,05% connection type: screw terminal operating temperature: -25 to +70°C isolation voltage: 3000V (I/P-O/P), 2500V (I/P-FG), 500V (O/P-FG) dimensions: 250x161x120mm weight: 4100g

Specifications

manufacturer
Manufacturer's name CPS-I1500.018(R2)
Efficiency [%] 94
Output current range [A] 0...75
Output power [W] 1500
Ripple [mVp-p] 40
Output voltage range [V] 0...18
Data Sheet

Unit price

1.530,89 €

Stock: 0
Further delivery:
CW 09/2025
