CPS-EC1500.150(R2)

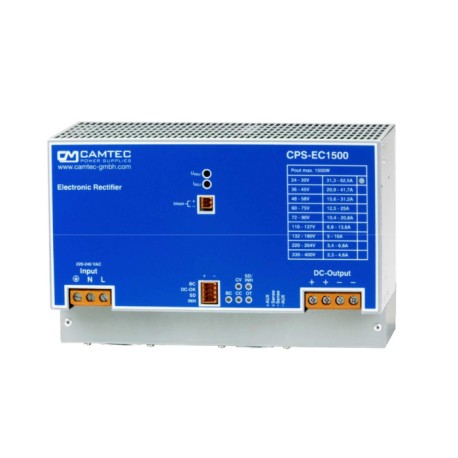

Camtec rectifier battery charger series CPS-EC1500(R2)

Battery chargers with 1500W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit, as well as they comply with EN 61010-1, EN 62368-1, EN 60950-1, EN 60204-1, EN 55032 class A and class B. We offer the following types of this Camtec series: CPS-EC1500.024, CPS-EC1500.036, CPS-EC1500.048, CPS-EC1500.060, CPS-EC1500.072, CPS-EC1500.110, CPS-EC1500.150, CPS-EC1500.220, and CPS-EC1500.400.

  • output current: 1500W
  • input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC
  • inputcurrent: 13,5A
  • maximum starting current: 20,7A
  • isolation voltage I/P-O/P: 3000V AC
  • isolation voltage I/P-FG: 2500V AC
  • isolation voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 250x161x119,5mm
  • weight: 4100g
CPS-EC1500.150(R2), Camtec DC rectifier battery charger, 1500W, IP20, DIN rail mounting, CPS-EC1500(R2) series

CPS-EC1500.150(R2)

246825 CPS-EC1500.150(R2) CPS-EC1500.150(R2) Camtec rectifier battery charger series CPS-EC1500(R2). Battery chargers with 1500W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit, as well as they comply with EN 61010-1, EN 62368-1, EN 60950-1, EN 60204-1, EN 55032 class A and class B. We offer the following types of this Camtec series: CPS-EC1500.024, CPS-EC1500.036, CPS-EC1500.048, CPS-EC1500.060, CPS-EC1500.072, CPS-EC1500.110, CPS-EC1500.150, CPS-EC1500.220, and CPS-EC1500.400. output current: 1500W input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC  inputcurrent: 13,5A maximum starting current: 20,7A isolation voltage I/P-O/P: 3000V AC isolation voltage I/P-FG: 2500V AC isolation voltage O/P-FG: 500V AC operating temperature: -25 to +70°C dimensions: 250x161x119,5mm weight: 4100g

Specifications

manufacturer
Manufacturer's name CPS-EC1500.150(R2)
Output voltage [V] 150
Efficiency [%] 92...94
Output current [A] 5,0...10
Ripple [mVp-p] 400
Data Sheet

Unit price

1.054,79 €

Stock: 0
Further delivery:
CW 05/2025
