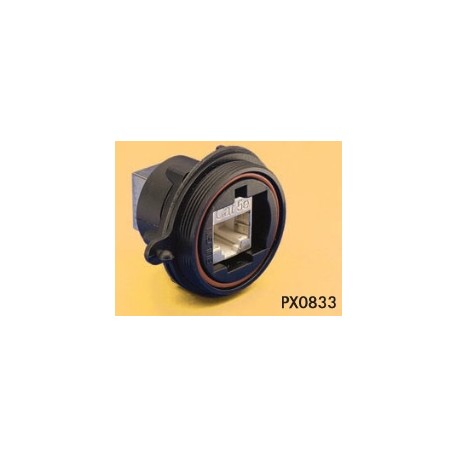

PX0833

• dust and waterproof sealing when mated
• IP68
• Cat.5e compliant: data rate up to 100MHz
• PUR jacket on cable and shielded system: high noise immunity and EMI protection
• Cat.5e shielded coupler
• shroud on RJ45: protection from abouse and mis-mating
• screw coupling: secure, proven locking system
• PCB mounted panel connector
• IDC termination panel connector
• pole: 4
• housing material: PVC, UL94V-0
• colour: black
• contact material: phosphor bronze
• contact surface: gold-plated
• rated current: 1,5A.
• rated voltage: 30V AC
• temperature range: -20...+70°C
• by Bulgin

• for panel mounting connector
• Cat 5e shielded coupler
• matex with PX0834/B flex connector
• standard RJ45 can be plugged intro rear
• single hole fixing
• with panel sealing gasket

PX0833

39094 PX0833 PX0833 • dust and waterproof sealing when mated• IP68• Cat.5e compliant: data rate up to 100MHz• PUR jacket on cable and shielded system: high noise immunity and EMI protection• Cat.5e shielded coupler• shroud on RJ45: protection from abouse and mis-mating• screw coupling: secure, proven locking system• PCB mounted panel connector• IDC termination panel connector• pole: 4• housing material: PVC, UL94V-0• colour: black• contact material: phosphor bronze• contact surface: gold-plated• rated current: 1,5A.• rated voltage: 30V AC• temperature range: -20...+70°C• by Bulgin• for panel mounting connector• Cat 5e shielded coupler• matex with PX0834/B flex connector• standard RJ45 can be plugged intro rear• single hole fixing• with panel sealing gasket

Specifications

manufacturer
Manufacturer's name PX0833
Data Sheet

Unit price

49,59 €

Stock: 607
Further delivery:
CW 30/2025
