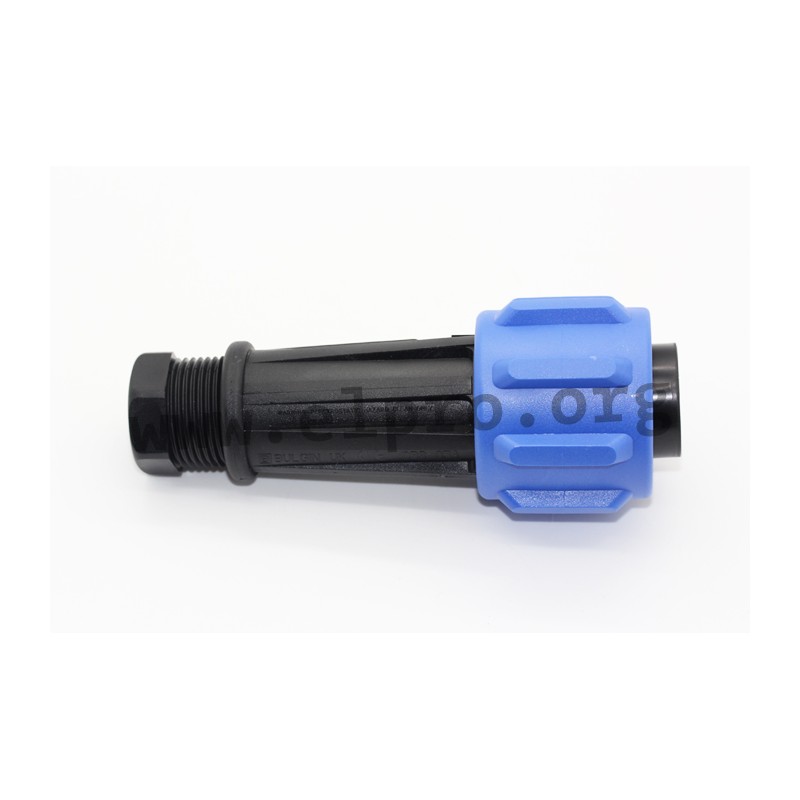

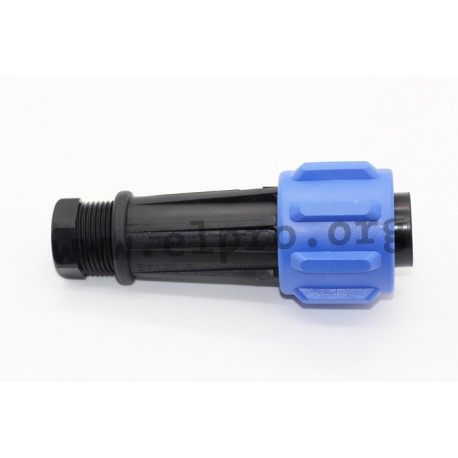

PX0911/02/P

circular cable connector Buccaneer 900 by Bulgin

• series: Buccaneer 900
• watertight
• degree of protection: IP68
• PX09_P: male
• for cables with 13..15mm diameter, 7...13mm with additional gland pack
• with strain relief clamp, for cables with 20...22mm diameter, 14...20mm with additional gland pack
• housing material: polyamide (VL94-V0)
• contact material: brass, nickel-plated
• rated current: 32A
• rated voltage: 600V AC/DC
• contact accommodation, max. 2, 3, 4, 5, 7 pole: 2,5...4mm2 (13...10AWG)
• contact accommodation, max. 10 pole: 0,75...2mm2(14...18AWG)
• contact resistance, max.: 10mΩ
• insulation resistance, min. (@500V DC): 106MΩ
• breakdown voltage, AC, min.: 2,2kV
• operating temperature Range: -40...+85°C
• by Bulgin

suitable adapter, sealing caps and cable glands

PX0911/02/P, IP68, series Buccaneer 900 by Bulgin

PX0911/02/P

41104 PX0911/02/P PX0911/02/P circular cable connector Buccaneer 900 by Bulgin. • series: Buccaneer 900• watertight• degree of protection: IP68• PX09_P: male• for cables with 13..15mm diameter, 7...13mm with additional gland pack• with strain relief clamp, for cables with 20...22mm diameter, 14...20mm with additional gland pack• housing material: polyamide (VL94-V0)• contact material: brass, nickel-plated• rated current: 32A• rated voltage: 600V AC/DC• contact accommodation, max. 2, 3, 4, 5, 7 pole: 2,5...4mm2 (13...10AWG)• contact accommodation, max. 10 pole: 0,75...2mm2(14...18AWG)• contact resistance, max.: 10mΩ• insulation resistance, min. (@500V DC): 106MΩ• breakdown voltage, AC, min.: 2,2kV• operating temperature Range: -40...+85°C• by Bulginsuitable adapter, sealing caps and cable glands

Specifications

manufacturer
Manufacturer's name PX0911/02/P
Design flex
Number of poles 2
Data Sheet

Unit price

35,49 €

Stock: 14
Further delivery:
CW 23/2025
