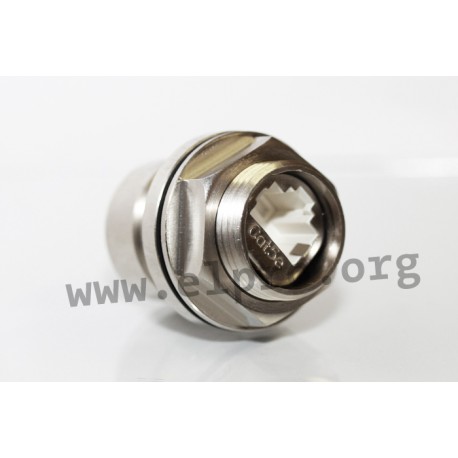

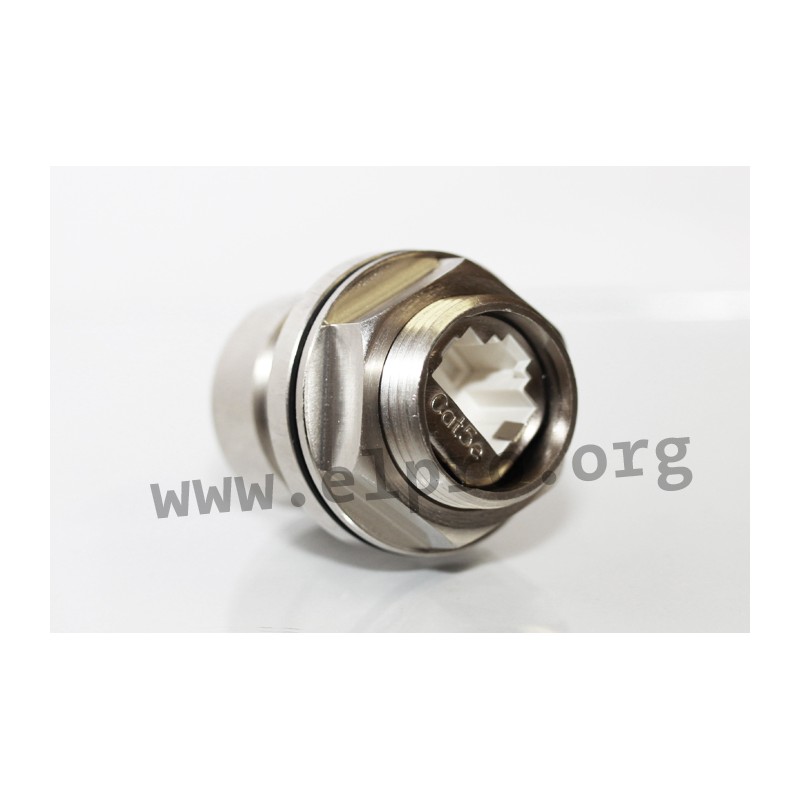

PXM6033TP
* metal housing
* watertight
* degree of protection: IP66, IP68 and IP69K (when coupled)
* flex, in-line flex and front panel cable connectors
* all-metal models of the body: nickel-plated brass
* 2, 3, 8, 16 and 22 pole
* PX_P: male
* PX_S: female
* cable extension: 4...10mm diameter
* push-/pull locking system
* shockproof contacts
* 30° rotation lock prevents accidental disconnection
* polarization and visual orientation features help to correct plug connectors togehter
* housing material: nickel-plated brass
* contact material: nickel-plated brass
* contact accommodation, max. 10mΩ
* insulation resistance, min. (@500V DC): 106MΩ
* operating temperature range: -40...+120°C
* by Bulgin
suitable sealing caps
suitable solder contacts
circular cable connector, metal, Buccaneer 6000 by Bulgin
* series Buccaneer 6000* metal housing
* watertight
* degree of protection: IP66, IP68 and IP69K (when coupled)
* flex, in-line flex and front panel cable connectors
* all-metal models of the body: nickel-plated brass
* 2, 3, 8, 16 and 22 pole
* PX_P: male
* PX_S: female
* cable extension: 4...10mm diameter
* push-/pull locking system
* shockproof contacts
* 30° rotation lock prevents accidental disconnection
* polarization and visual orientation features help to correct plug connectors togehter
* housing material: nickel-plated brass
* contact material: nickel-plated brass
* contact accommodation, max. 10mΩ
* insulation resistance, min. (@500V DC): 106MΩ
* operating temperature range: -40...+120°C
* by Bulgin
suitable sealing caps
suitable solder contacts
PXM6033TP
Specifications
| manufacturer | Elektron Technology |
| Manufacturer's name | PXM6033TP |
| Design | front panel |
| Number of poles | ethernet RJ45 Cat5e |
