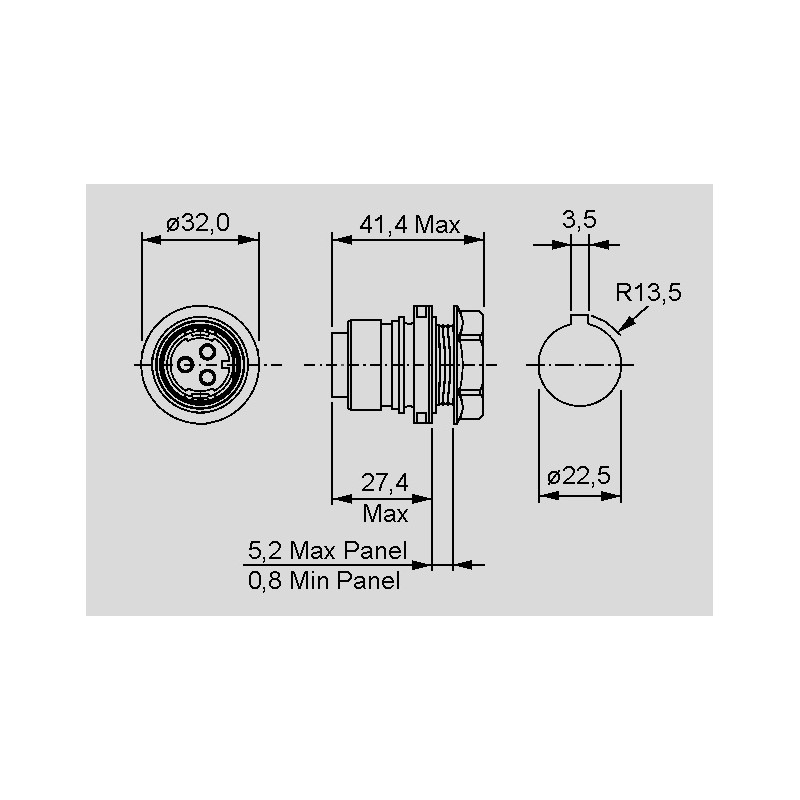

PXM6012/02P/ST
• metal housing
• watertight
• degree of protection: IP66, IP68 and IP69K (when coupled)
• flex, in-line flex and front panel cable connectors
• all-metal models of the body: nickel-plated brass
• 2, 3, 8, 16 and 22 pole
• PX_P: male
• PX_S: female
• cable extension: 4...10mm diameter
• push-/pull locking system
• shockproof contacts
• 30° rotation lock prevents accidental disconnection
• polarization and visual orientation features help to correct plug connectors togehter
• housing material: nickel-plated brass
• contact material: nickel-plated brass
• contact accommodation, max. 10mΩ
• insulation resistance, min. (@500V DC): 106MΩ
• operating temperature range: -40...+120°C
• by Bulgin
suitable sealing caps
suitable solder contacts
circular cable connector, metal, Buccaneer 6000 by Bulgin
• series Buccaneer 6000• metal housing
• watertight
• degree of protection: IP66, IP68 and IP69K (when coupled)
• flex, in-line flex and front panel cable connectors
• all-metal models of the body: nickel-plated brass
• 2, 3, 8, 16 and 22 pole
• PX_P: male
• PX_S: female
• cable extension: 4...10mm diameter
• push-/pull locking system
• shockproof contacts
• 30° rotation lock prevents accidental disconnection
• polarization and visual orientation features help to correct plug connectors togehter
• housing material: nickel-plated brass
• contact material: nickel-plated brass
• contact accommodation, max. 10mΩ
• insulation resistance, min. (@500V DC): 106MΩ
• operating temperature range: -40...+120°C
• by Bulgin
suitable sealing caps
suitable solder contacts

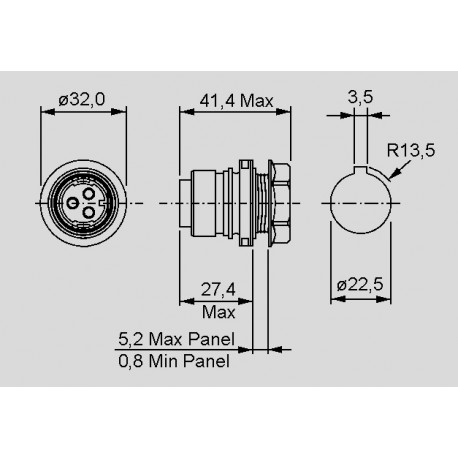

PXM6012/02P/ST
Specifications
| manufacturer | Bulgin |
| Manufacturer's name | PXM6012/02P/ST |
| Design | front panel |
| Breakdown voltage, min. [kV] | 10 |
| Number of poles | 2 |
| Termination type | screw |
| Rated current [A] | 16 |
| Nominal voltage [V] | 277 |
