PXM6011/22P/CR/0910

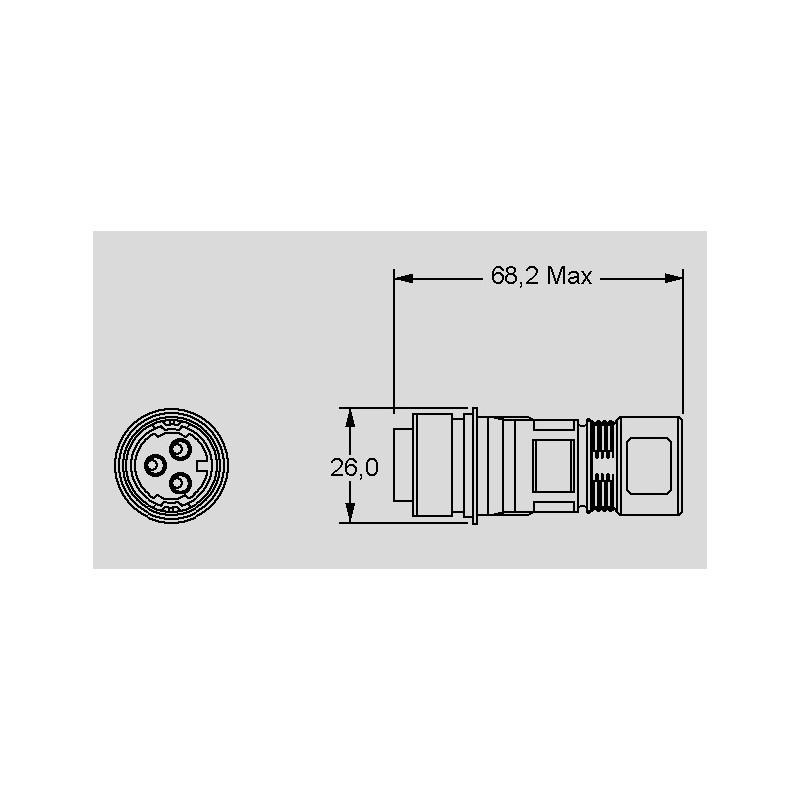

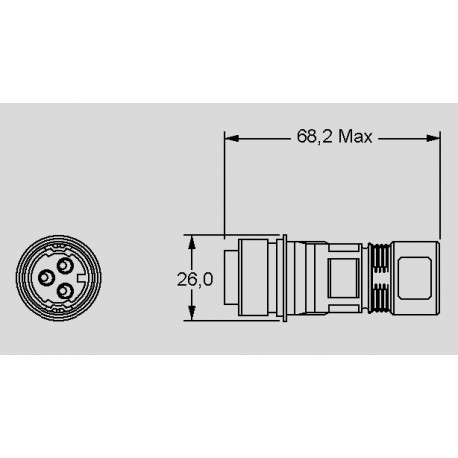

circular cable connector, metal, Buccaneer 6000 by Bulgin

• series Buccaneer 6000
• metal housing
• watertight
• degree of protection: IP66, IP68 and IP69K (when coupled)
• flex, in-line flex and front panel cable connectors
• all-metal models of the body: nickel-plated brass
• male
• cable extension: 4...10mm diameter
• push-/pull locking system
• shockproof contacts
• 30° rotation lock prevents accidental disconnection
• polarization and visual orientation features help to correct plug connectors togehter
• housing material: nickel-plated brass
• contact material: nickel-plated brass
• contact accommodation, max. 10mΩ
• insulation resistance, min. (@500V DC): 106
• operating temperature range: -40...+120°C
• by Bulgin

suitable sealing caps

suitable solder contacts

PXM6011/22P/CR/0910

41151 PXM6011/22P/CR/0910 PXM6011/22P/CR/0910 circular cable connector, metal, Buccaneer 6000 by Bulgin. • series Buccaneer 6000• metal housing• watertight• degree of protection: IP66, IP68 and IP69K (when coupled)• flex, in-line flex and front panel cable connectors• all-metal models of the body: nickel-plated brass• male• cable extension: 4...10mm diameter• push-/pull locking system• shockproof contacts• 30° rotation lock prevents accidental disconnection• polarization and visual orientation features help to correct plug connectors togehter• housing material: nickel-plated brass• contact material: nickel-plated brass• contact accommodation, max. 10mΩ• insulation resistance, min. (@500V DC): 106MΩ• operating temperature range: -40...+120°C• by Bulginsuitable sealing caps suitable solder contacts

Specifications

manufacturer
Manufacturer's name PXM6011/22P/...
Design in-line flex
Breakdown voltage, min. [kV] 5
Number of poles 22
Termination type crimp
Nominal voltage [V] 60
Data Sheet

Unit price

38,49 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 20 units or
multiples of 20.
