C3920BEAAA

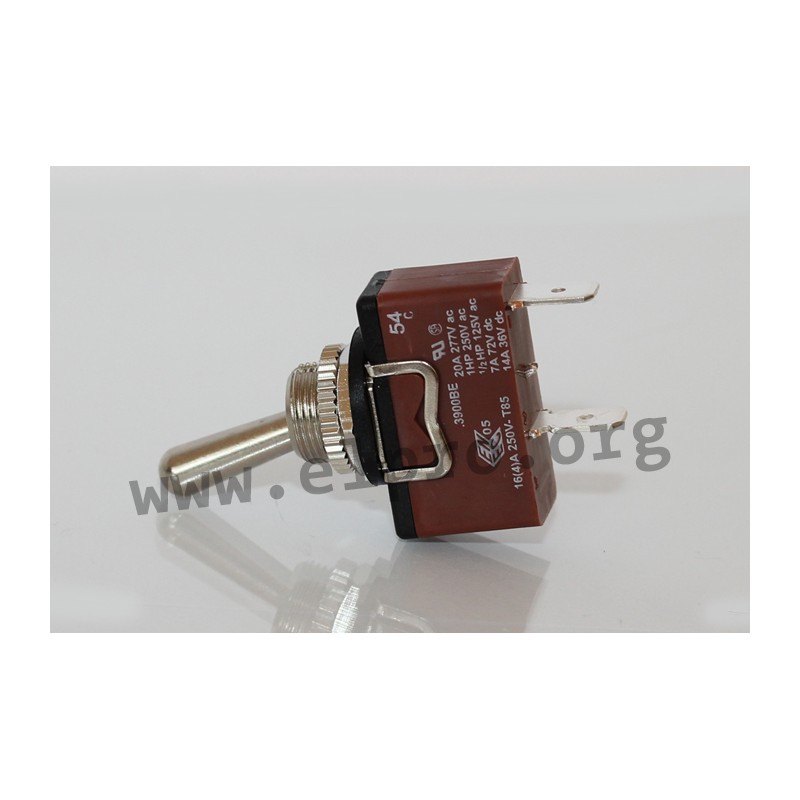

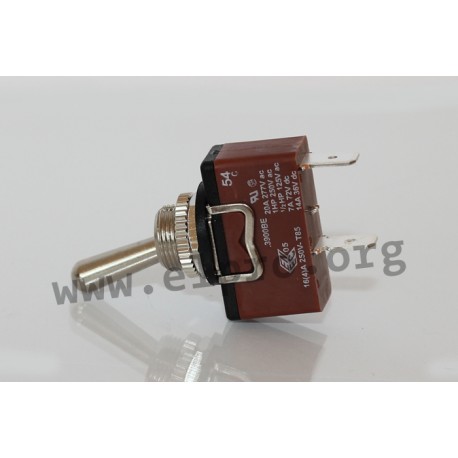

Toggle switches series 3900 by Arcolectric

• single pole leverswitch
• IP67 sealed from panelside
• for central mounting
• 6,3mm solderterminals
• metal lever
• ratet up to 250V/10A (C3900BE: 16A)
• lever protection cap available
• operating voltage, max.: 250V AC
• switching current, max.: 10A
• switching current at inductive load, max.: 4A
• ambient temperature, max.: 85°C
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• soldering conditions (hand solder): 350°C/6s
• material shell: nylon 6.6
• material lever: brass, nickel-plated
• material current-carrying part:Cu Alloy
• contacts: silver-plated
• flammability class: UL94V2

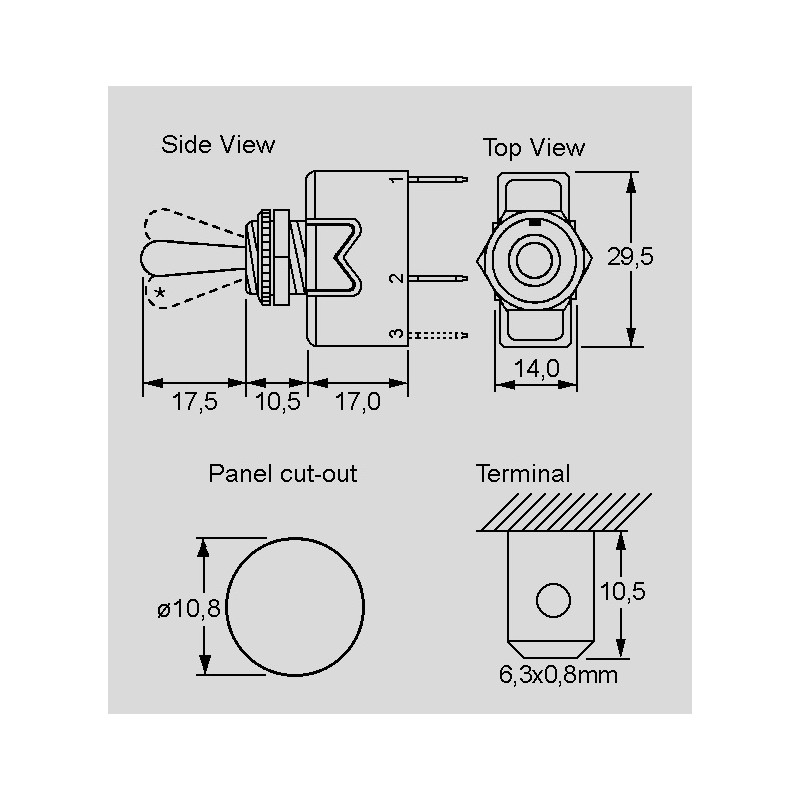

• wall strength panel cut-out: 4mm

C3920BEAAA

C3920BEAAA

39536 C3920BEAAA C3920BEAAA Toggle switches series 3900 by Arcolectric. • single pole leverswitch• IP67 sealed from panelside• for central mounting• 6,3mm solderterminals• metal lever• ratet up to 250V/10A (C3900BE: 16A)• lever protection cap available• operating voltage, max.: 250V AC• switching current, max.: 10A• switching current at inductive load, max.: 4A• ambient temperature, max.: 85°C• insulation resistance: &gt;20MΩ• contact resistance (new state, 12V DC/1A): &lt;100mΩ• soldering conditions (hand solder): 350°C/6s• material shell: nylon 6.6• material lever: brass, nickel-plated• material current-carrying part:Cu Alloy• contacts: silver-plated• flammability class: UL94V2• wall strength panel cut-out: 4mm

Specifications

manufacturer
Manufacturer's name C3920BEAAA
Switch positions 1xOn-Off-On
Switching current [A] 10
Panel cut-out [mm] Ø10,8
Data Sheet

Unit price

14,39 €

Stock: 26
Further delivery:
CW 14/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
