FP 50011

ABS desktop enclosures

• the enclosure is composed of two half shells
optional:
• front and back panel (FP_)
• assembly set in two depths (AB_L)
• four fixed feet (UM-AS)
• two fixed and two folding feet (UM-ASK)

half shell enclosures
• ABS half shell enclosures with molded, covered louvers in the upper and lower part
• surface with eroding structure in light grey (similar to RAL 7035)
• due to the symmetry of the half shells, connection possible using four M3 screws in the upper or lower part.
• the screw holes can be covered with eight provided cover caps.
• cams for cutting screws are available in the enclosure shell halves.
• the cam mass is especially co-ordinated to meet European card format.
• the nuts in the side panels of the shell half slots are attached at a distance of 10mm, in order to be able to push in panels vertically.

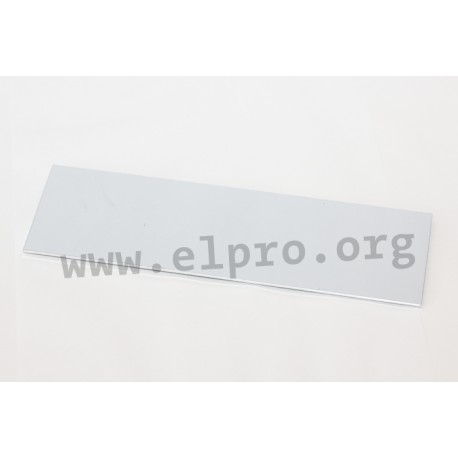

FP 50011 - 1 front panel for UM5, without extension set

front and back panel FP_
• made of anodized aluminium, insertable
• 2mm thick
• 11 front panels available in different variations

FP 50011

FP 50011

16936 FP 50011 56051100 56051100 ABS desktop enclosures. • the enclosure is composed of two half shellsoptional:• front and back panel (FP_)• assembly set in two depths (AB_L)• four fixed feet (UM-AS)• two fixed and two folding feet (UM-ASK)half shell enclosures• ABS half shell enclosures with molded, covered louvers in the upper and lower part• surface with eroding structure in light grey (similar to RAL 7035)• due to the symmetry of the half shells, connection possible using four M3 screws in the upper or lower part.• the screw holes can be covered with eight provided cover caps.• cams for cutting screws are available in the enclosure shell halves.• the cam mass is especially co-ordinated to meet European card format.• the nuts in the side panels of the shell half slots are attached at a distance of 10mm, in order to be able to push in panels vertically.FP 50011 - 1 front panel for UM5, without extension setfront and back panel FP_• made of anodized aluminium, insertable• 2mm thick• 11 front panels available in different variations

Specifications

manufacturer
Manufacturer's name 56051100
Outside dimensions [mm] 215,6x66,4
Data Sheet

Unit price

7,69 €

Stock: 34
Further delivery:
CW 02/2025
