B SC 13 ABS 1023

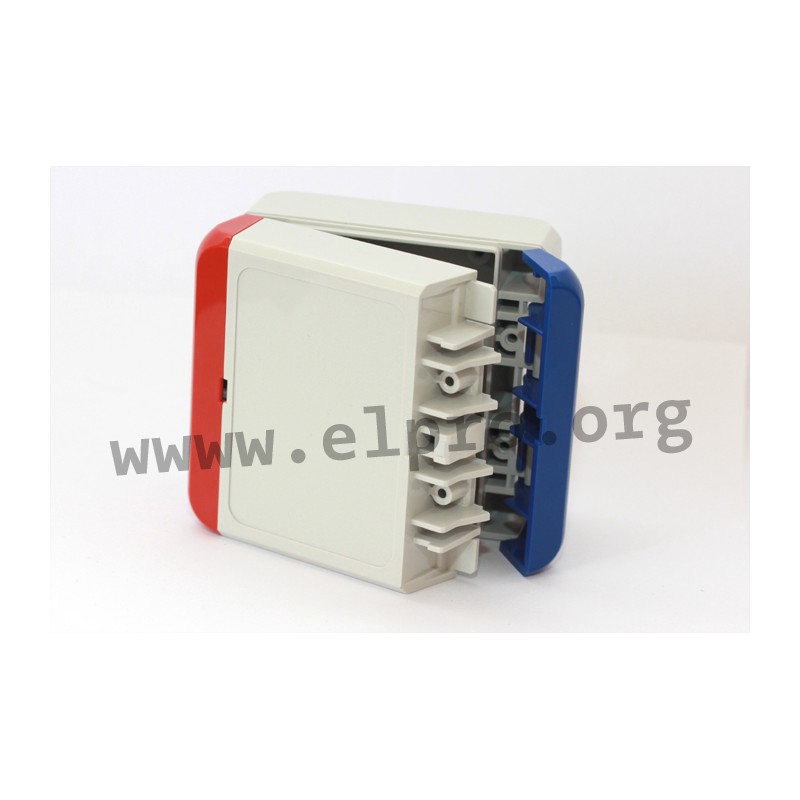

ABS wall and desktop enclosures BOCUBE by Bopla

* housings:
* ABS enclosure, in light-grey (similar to RAL 7035), foamed seal
* consisting of lower part, lid and light grey hinged quick-release catch
* protection class IP67, DIN 60529
* captive lid with membrane keypad area, 2mm (B 080805 ABS 7035: 5mm)
* hinged quick-release catch technology: open with a screwdriver, close by hand
* mounting space for rectangular front panels and grooved PCBs
* instead of hinged quick-release catch, the enclosures can be srcewed
* large areas guarantee enough space for the mounting of cable glands, connectors etc.
* optional colored hinged quick-release catches in red, blue and yellow
* by Bopla

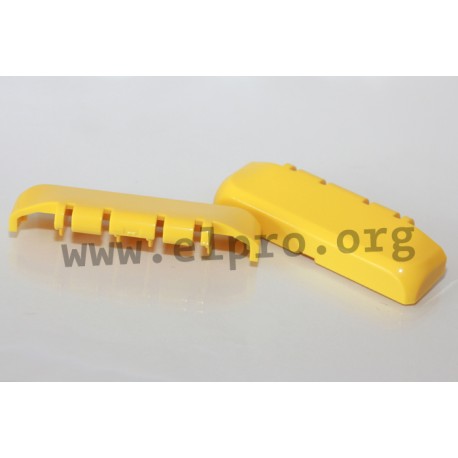

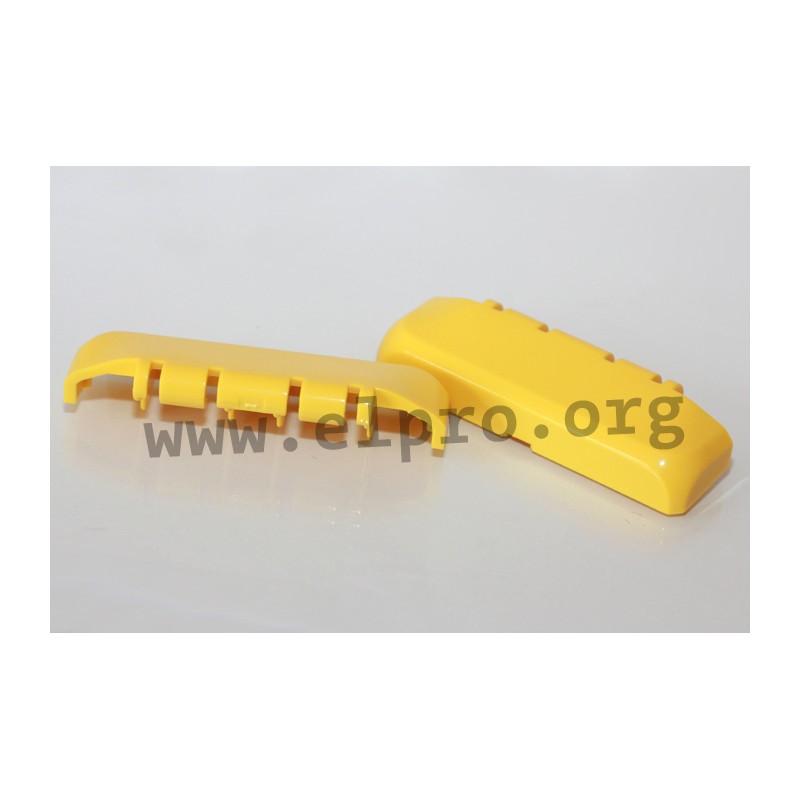

B SC_, hinged quick-release catches:
* colored hinged quick-release catches in red or yellow for ABS cases in width 80mm
* packaging unit: 2 catches
* the colored hinged quick-release catches must be ordered separately.

B WL 7035, wall brackets:
* wall brackets in light grey to fix the housings onto the wall
* delivery contents: 4 wall brackets (polycarbonate), 4 screws

B SC _ ABS 1023

B SC 13 ABS 1023

39687 B SC 13 ABS 1023 96330203 96330203 ABS wall and desktop enclosures BOCUBE by Bopla. * housings:* ABS enclosure, in light-grey (similar to RAL 7035), foamed seal* consisting of lower part, lid and light grey hinged quick-release catch* protection class IP67, DIN 60529* captive lid with membrane keypad area, 2mm (B 080805 ABS 7035: 5mm)* hinged quick-release catch technology: open with a screwdriver, close by hand* mounting space for rectangular front panels and grooved PCBs* instead of hinged quick-release catch, the enclosures can be srcewed* large areas guarantee enough space for the mounting of cable glands, connectors etc.* optional colored hinged quick-release catches in red, blue and yellow* by BoplaB SC_, hinged quick-release catches:* colored hinged quick-release catches in red or yellow for ABS cases in width 80mm* packaging unit: 2 catches* the colored hinged quick-release catches must be ordered separately.B WL 7035, wall brackets:* wall brackets in light grey to fix the housings onto the wall* delivery contents: 4 wall brackets (polycarbonate), 4 screws

Specifications

manufacturer
Manufacturer's name 96330203
Colour traffic yellow
Width [mm] 125
Data Sheet

Unit price

4,09 €

Stock: 0
Further delivery:
CW 50/2024

Minimum order quantity 2 units or
multiples of 2.
