09-0173-00-08

subminiature connectors M16, 723 by Binder

• series: M16, 723
• panel mounting
• panel mounting connectors with screw locking according to IEC60130-9
• precision metal construction
• excellent EMC shielding
• degree of protection IP67
• connector locking system: screw
• termination: solder
• wire gauge, max. 09-_-0003, -0005, -0008: 0,75mm2
• wire gauge, max. 09-_-0012: 0,25mm2
• mechanical operating life: >500 Cycles
• temperature range: -30...+95°C
• material of contact: CuZn
• material of housing: Zn (diecasting), nickel
• by Binder

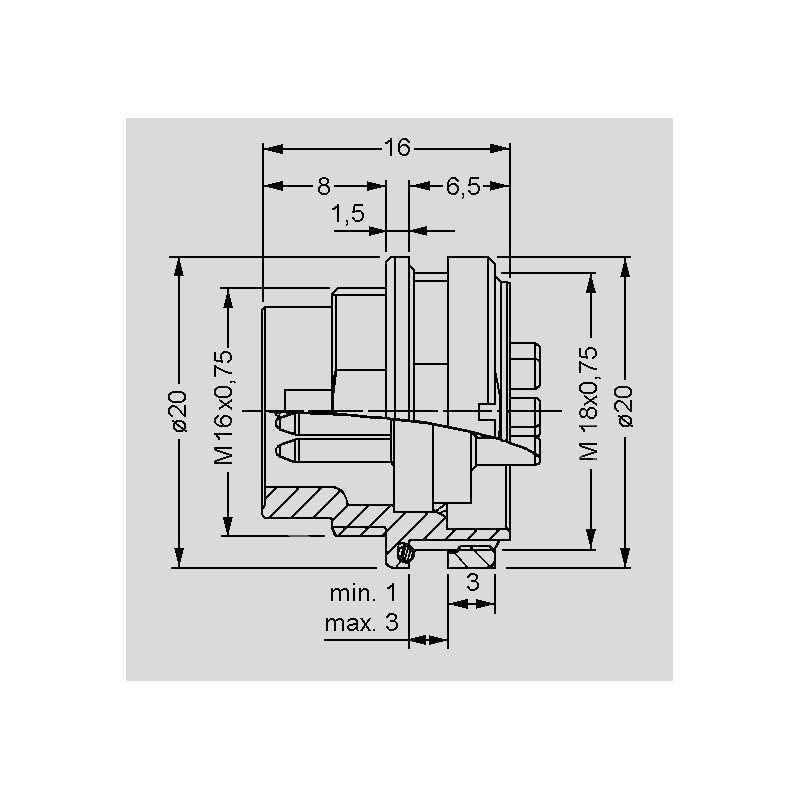

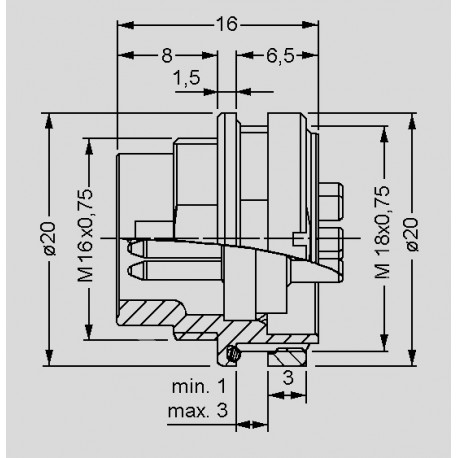

dimensions 09-0107-00-03, -011-5-00-05, -0173-00-08

09-0173-00-08

40949 09-0173-00-08 09 0173 00 08 09 0173 00 08 subminiature connectors M16, 723 by Binder. * series: M16, 723 * panel mounting* panel mounting connectors with screw locking according to IEC60130-9* precision metal construction* excellent EMC shielding* degree of protection IP67* connector locking system: screw* termination: solder* wire gauge, max. 09-_-0003, -0005, -0008: 0,75mm2* wire gauge, max. 09-_-0012: 0,25mm2* mechanical operating life: >500 Cycles* temperature range: -30...+95°C* material of contact: CuZn* material of housing: Zn (diecasting), nickel* by Binder

Specifications

manufacturer
Manufacturer's name 09 0173 00 08
Number of poles 8
Contact surface Ag
Rated current [A] 5
Nominal voltage [V] 60 (32)
Resistance [mΩ] 5
Data Sheet

Unit price

11,99 €

Stock: 0
Further delivery:
CW 17/2025

Minimum order quantity 10 units or
multiples of 10.
