09-3431-700-04

connectors with screw locking M12 A-coded, 713 by Binder

* series: M12 A-coded, 713
* panel mounting
* cable connectors with screw locking
* with wire 0,25mm2
* thread locking M12x1
* fixing thread M16x1,5
* shield connection with shield ring/iris type spring
* UL versions
* termination: solder
* wire gauge, max.: 0,25mm2
* degree of protection: IP68
* mechanical operating life: >100 Cycles
* temperature range: -25...+85°C
* rated voltage 09-_-70004: 250V
* rated voltage 09-_-70005: 125V
* rated current (40°C): 4A
* contact resistance, max.: 3mΩ
* material of contact: CuZn, gold-plated
* material of housing: Zn (diecasting), nickel-plated
* by Binder

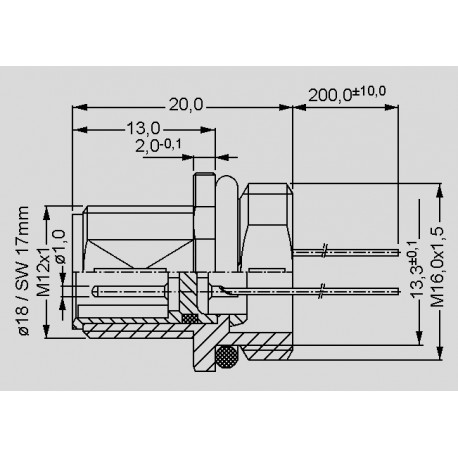

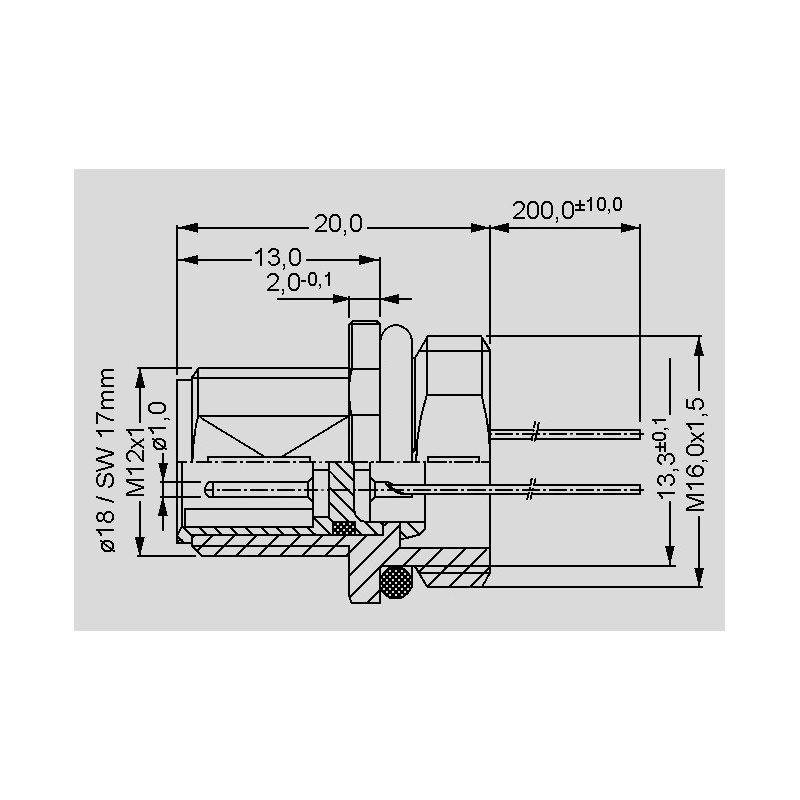

dimensions 09-3431-700-04, 09-3441-700-05

09-3431-700-04

40959 09-3431-700-04 09 3431 700 04 09 3431 700 04 connectors with screw locking M12 A-coded, 713 by Binder. * series: M12 A-coded, 713 * panel mounting* cable connectors with screw locking* with wire 0,25mm2* thread locking M12x1* fixing thread M16x1,5* shield connection with shield ring/iris type spring* UL versions* termination: solder* wire gauge, max.: 0,25mm2* degree of protection: IP68* mechanical operating life: >100 Cycles* temperature range: -25...+85°C* rated voltage 09-_-70004: 250V* rated voltage 09-_-70005: 125V* rated current (40°C): 4A* contact resistance, max.: 3mΩ* material of contact: CuZn, gold-plated * material of housing: Zn (diecasting), nickel-plated* by Binder

Specifications

manufacturer
Manufacturer's name 09 3431 700 04
Data Sheet

Unit price

14,19 €

Stock: 7
Further delivery:
CW 01/2025
