99-0437-24-05

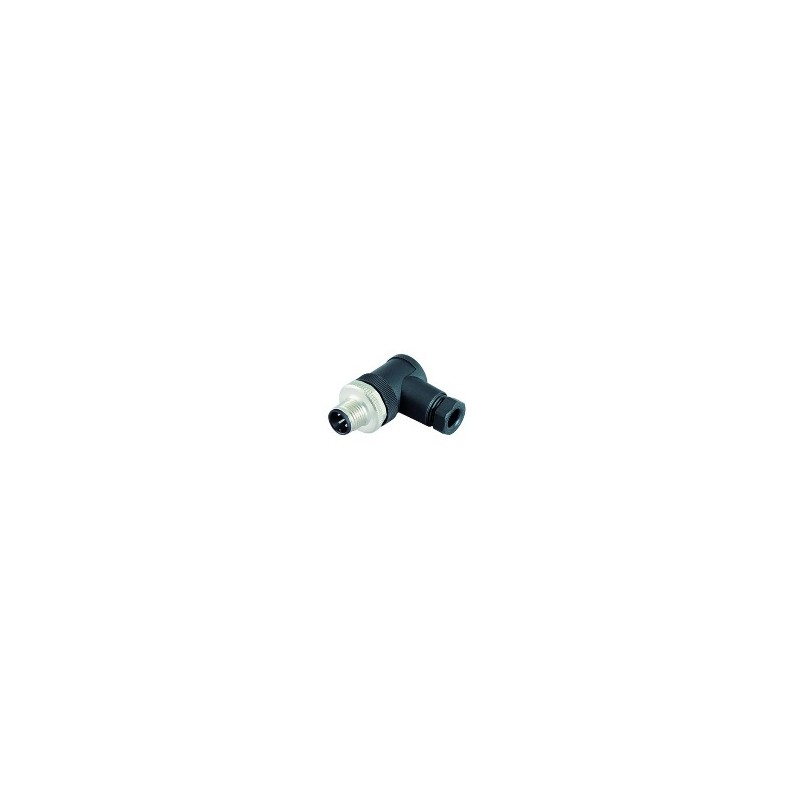

connectors with screw locking M12 A-coded, 713 by Binder

* series: M12 A-coded, 713
* cable mounting
* cable connectors with screw locking

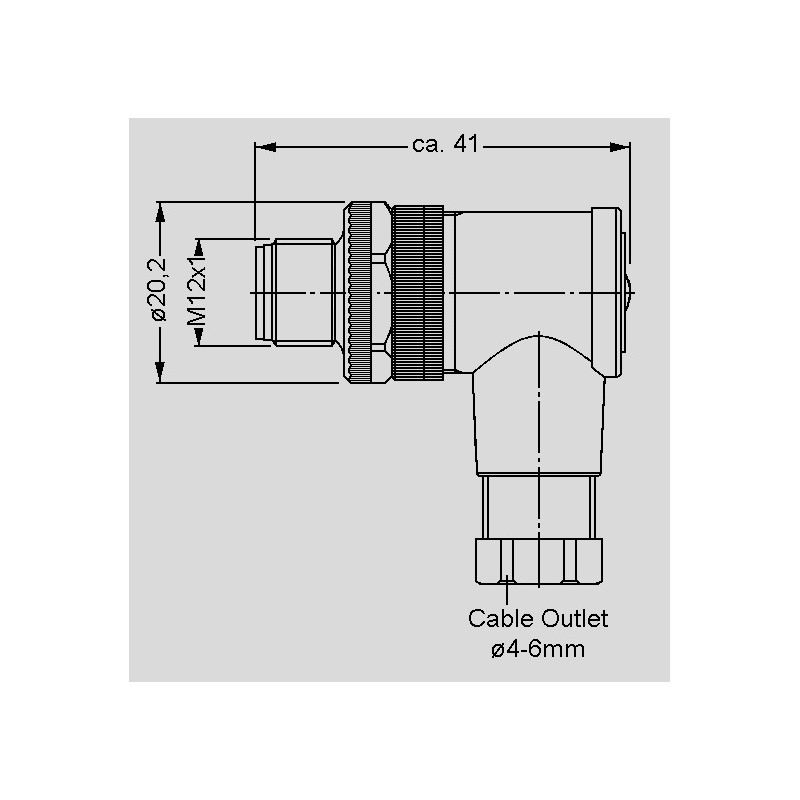

* thread locking M12x1
* screw connection
* shield connection with shield ring/iris type spring
* UL versions
* degree of protection IP67
* termination: screw
* wire gauge, max.: 0,75mm2
* cable outlet, max.: 4...6mm
* degree of protection: IP67
* mechanical operating life: >50 Cycles
* temperature range: -25...+85°C
* rated voltage 99-_-_404: 250V
* rated voltage 99-_-_405: 125V
* rated current (40°C): 4A
* contact resistance, max.: 8mΩ
* material of contact: CuZn, optaloy
* material of housing: PA
* by Binder

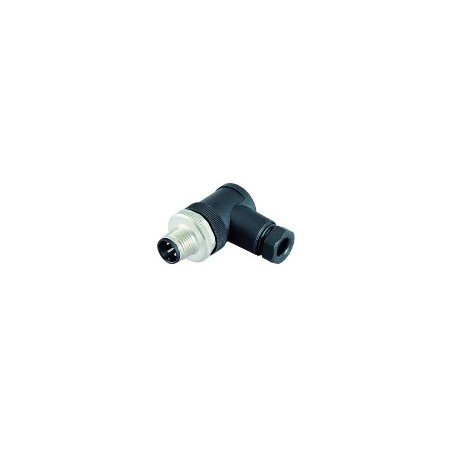

99-0429-24-04, 99-0437-24-05

99-0437-24-05

40958 99-0437-24-05 99 0437 24 05 99 0437 24 05 connectors with screw locking M12 A-coded, 713 by Binder . * series: M12 A-coded, 713 * cable mounting* cable connectors with screw locking* thread locking M12x1* screw connection* shield connection with shield ring/iris type spring* UL versions* degree of protection IP67* termination: screw* wire gauge, max.: 0,75mm2* cable outlet, max.: 4...6mm* degree of protection: IP67* mechanical operating life: >50 Cycles* temperature range: -25...+85°C* rated voltage 99-_-_404: 250V* rated voltage 99-_-_405: 125V* rated current (40°C): 4A* contact resistance, max.: 8mΩ* material of contact: CuZn, optaloy* material of housing: PA* by Binder

Specifications

manufacturer
Manufacturer's name 99 0437 24 05
Data Sheet

Unit price

15,69 €

Stock: 0
Further delivery:
CW 02/2025

Minimum order quantity 10 units or
multiples of 10.
