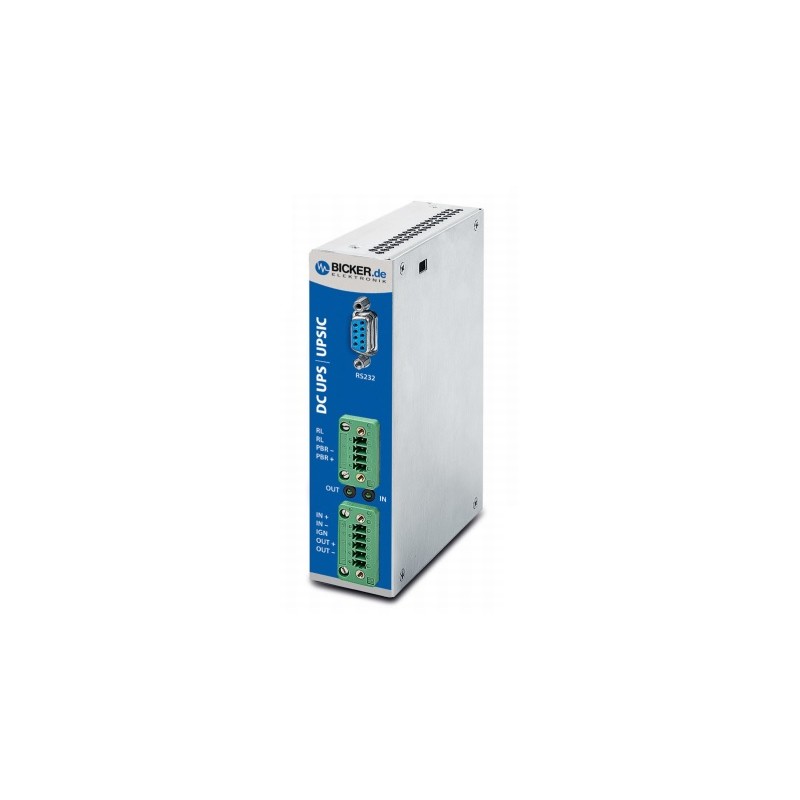

UPSIC-1205D

Bicker Elektronik uninterruptible power supply series UPSIC

Uninterruptible power supplies in a DIN rail housing (UPSIC-_D) or an open-frame type (UPSIC_) with a built-in energy storage in the form of maintenance-free supercaps, a power fail signal through a relay contact and a COM interface (RS232/I2C) as well as an LED indicator for the charging status of the capacitors. These devices are suitable for a 24/7 continuous operation, have a fanless design, a regulated voltage during backup operation and an integrated reboot function (UPSIC-_D). They are protected against voltage reversal and overcurrent and have an intelligent distribution of the charging currents. We offer the following types of this Bicker Elektronik series:  UPSIC-1205, UPSIC-2403, UPSIC-1205D and UPSIC-2403D.

  • output: 60 to 72W
  • charging method: CC/CV
  • charging cycles: >500.000
  • charging time: 60 sec at max. charging current
  • storage type: 4x100F supercaps
  • operating temperature: -20 to +70°C
  • dimensions UPSIC_: 135x795x35mm
  • dimensions UPSIC-_D: 36x103x147mm
  • weight UPSIC_: 0,17kg
  • weight UPSIC-_D: 0,367kg

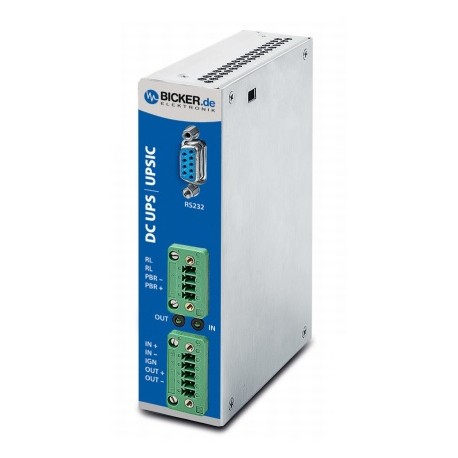

UPSIC-1205D, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, with supercaps, UPSIC series

UPSIC-1205D

233955 UPSIC-1205D UPSIC-1205D Bicker Elektronik uninterruptible power supply series UPSIC. Uninterruptible power supplies in a DIN rail housing (UPSIC-_D) or an open-frame type (UPSIC_) with a built-in energy storage in the form of maintenance-free supercaps, a power fail signal through a relay contact and a COM interface (RS232/I2C) as well as an LED indicator for the charging status of the capacitors. These devices are suitable for a 24/7 continuous operation, have a fanless design, a regulated voltage during backup operation and an integrated reboot function (UPSIC-_D). They are protected against voltage reversal and overcurrent and have an intelligent distribution of the charging currents. We offer the following types of this Bicker Elektronik series:  UPSIC-1205, UPSIC-2403, UPSIC-1205D and UPSIC-2403D. output: 60 to 72W charging method: CC/CV charging cycles: >500.000 charging time: 60 sec at max. charging current storage type: 4x100F supercaps operating temperature: -20 to +70°C dimensions UPSIC_: 135x795x35mm dimensions UPSIC-_D: 36x103x147mm weight UPSIC_: 0,17kg weight UPSIC-_D: 0,367kg

Specifications

manufacturer
Manufacturer's name UPSIC-1205D
Output voltage [V] 12
Efficiency [%] 97
Output current [A] 5
Output power [W] 60
Data Sheet

Unit price

310,89 €

Stock: 1
Further delivery:
CW 51/2024
