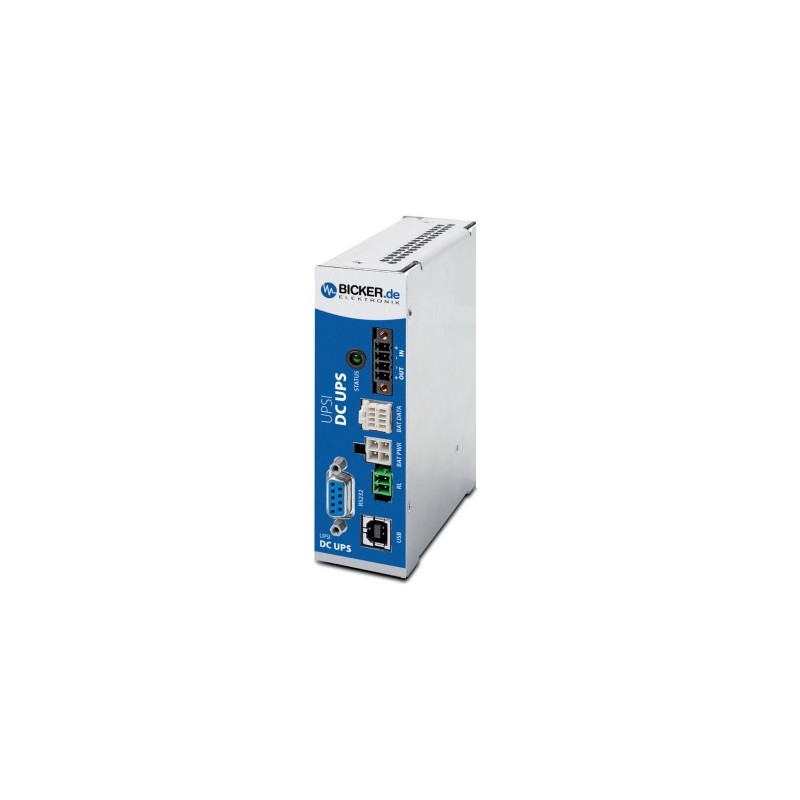

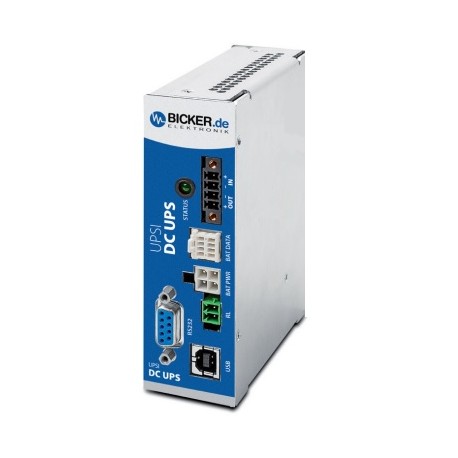

UPSI-1208D

Bicker Elektronik uninterruptible power supply series UPSI

Uninterruptible power supplies in an enclosed (DIN rail housing / UPSI-_D) or open-frame type (UPSI_) with an intelligent input current detection, a minimum load detection, a reboot function and a regulated output voltage during backup operation. These devices have a fanless design, a timer function, a battery start function as well as a charge status display and are protected against voltage reversal and overcurrent. They are suitable for a 24/7 continuous operation as well as for a battery hot-swap and can be shut down by an external seignal. We offer the following types of this Bicker Elektronik series: UPSI-1208, UPSI-2406, UPSI-2412, UPSI-1208D, UPSI-2406D and UPSI-2412D.

  • output: 96 to 240W
  • charging method: CC/CV/CP
  • interface: USB, RS232, USB-HID
  • operating temperature: -20 to +70°C
  • maximal operating altitude: 5000m
  • dimensions UPSI_: 105x68x17mm
  • dimensions UPSI-_D: 36x100x120mm
  • weight UPSI_: 0,09kg
  • weight UPSI-_D: 0,25kg
UPSI-1208D, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, external energy storage, UPSI series

UPSI-1208D

233959 UPSI-1208D UPSI-1208D Bicker Elektronik uninterruptible power supply series UPSI. Uninterruptible power supplies in an enclosed (DIN rail housing / UPSI-_D) or open-frame type (UPSI_) with an intelligent input current detection, a minimum load detection, a reboot function and a regulated output voltage during backup operation. These devices have a fanless design, a timer function, a battery start function as well as a charge status display and are protected against voltage reversal and overcurrent. They are suitable for a 24/7 continuous operation as well as for a battery hot-swap and can be shut down by an external seignal. We offer the following types of this Bicker Elektronik series: UPSI-1208, UPSI-2406, UPSI-2412, UPSI-1208D, UPSI-2406D and UPSI-2412D. output: 96 to 240W charging method: CC/CV/CP interface: USB, RS232, USB-HID operating temperature: -20 to +70°C maximal operating altitude: 5000m dimensions UPSI_: 105x68x17mm dimensions UPSI-_D: 36x100x120mm weight UPSI_: 0,09kg weight UPSI-_D: 0,25kg

Specifications

manufacturer
Manufacturer's name UPSI-1208D
Output voltage [V] 12
Output current [A] 8
Output power [W] 96
Data Sheet

Unit price

261,59 €

Stock: 10
Further delivery:
CW 01/2025
