UPSI-2406DP2

Bicker Elektronik uninterruptible power supply series UPSI-DP

Uninterruptible power supplies in a DIN rail housing with an integrated energy storage (supercaps [UPSI-_DP2] resp. LiFePO4 battery [UPSI-_DP3]), an intelligent input current detection, a minium load detection, a charge status display, a battery start function and a regulated output voltage during backup operation. These devices have a power-fail timer function and a relay contact for power-fail and are protected against overcurrent as well as voltage reversal. They have a fanless design, are suitable for a 24/7 continuous operation, can be shut down by an external signal, have a battery hot-swap and reboot function and comply with EN55032 class B. We offer the following types of this Bicker Elektronik series: UPSI-1208DP2 and UPSI-2406DP2.

  • output: 84 to 102W
  • charging method: CC/CV/CP
  • life cycles: >500000
  • interface: USB, RS232, USB-HID
  • maximal altitude: 5000m
  • operating temperature: -20 to +65°C

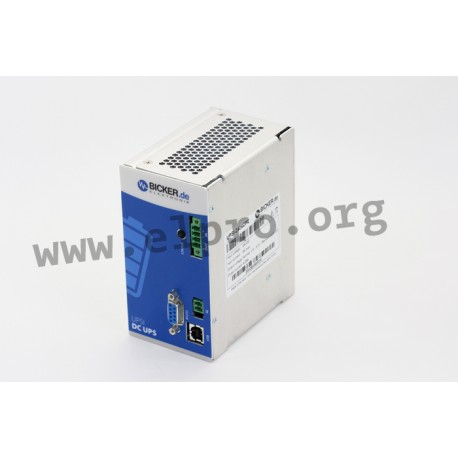

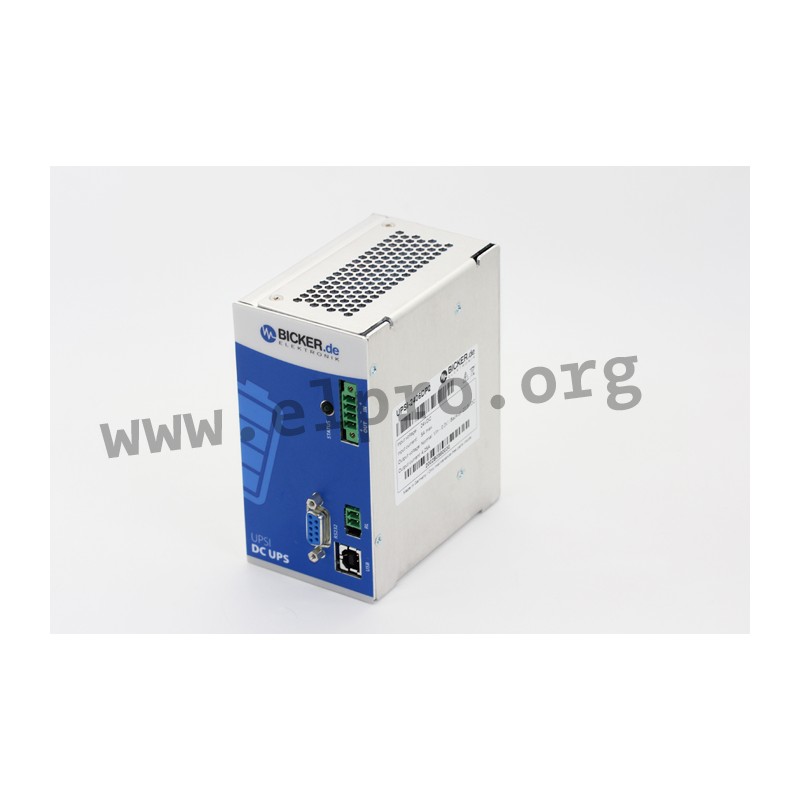

UPSI-2406DP2, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, with supercaps, UPSI-DP series

UPSI-2406DP2

233965 UPSI-2406DP2 UPSI-2406DP2 Bicker Elektronik uninterruptible power supply series UPSI-DP. Uninterruptible power supplies in a DIN rail housing with an integrated energy storage (supercaps [UPSI-_DP2] resp. LiFePO4 battery [UPSI-_DP3]), an intelligent input current detection, a minium load detection, a charge status display, a battery start function and a regulated output voltage during backup operation. These devices have a power-fail timer function and a relay contact for power-fail and are protected against overcurrent as well as voltage reversal. They have a fanless design, are suitable for a 24/7 continuous operation, can be shut down by an external signal, have a battery hot-swap and reboot function and comply with EN55032 class B. We offer the following types of this Bicker Elektronik series: UPSI-1208DP2 and UPSI-2406DP2. output: 84 to 102W charging method: CC/CV/CP life cycles: >500000 interface: USB, RS232, USB-HID maximal altitude: 5000m operating temperature: -20 to +65°C

Specifications

manufacturer
Manufacturer's name UPSI-2406DP2
Output voltage [V] 24
Output current [A] 4,25
Output power [W] 102
Data Sheet

Unit price

313,39 €

Stock: 11
Further delivery:
CW 51/2024
