BP-SUC-1033

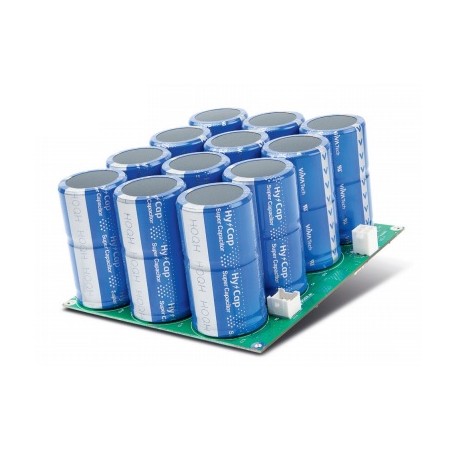

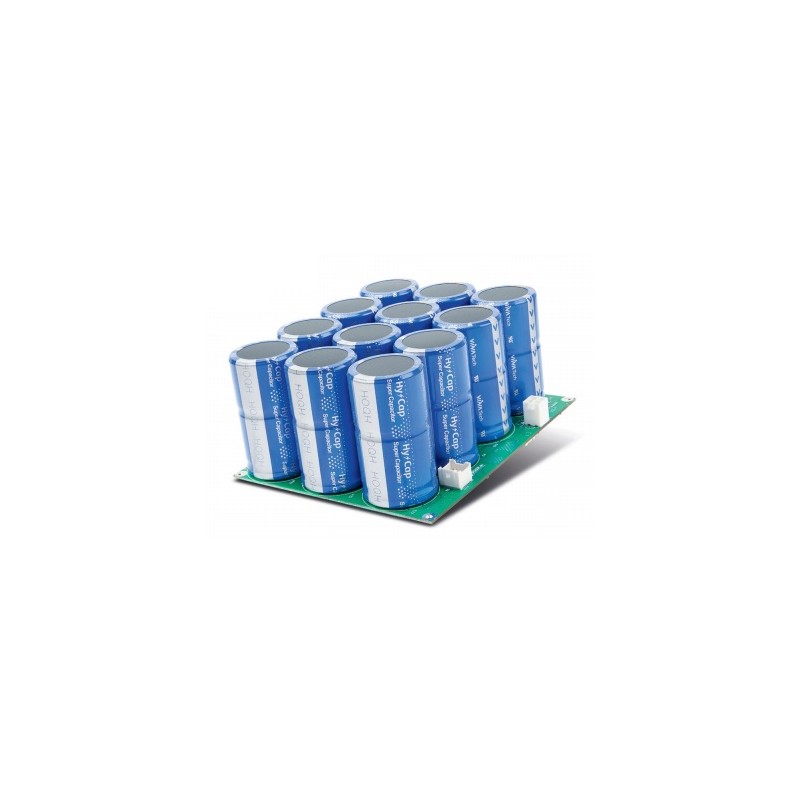

Bicker Elektronik supercap storage unit series BP-SUC

External energy supercap storage units in an open-frame type (BUP-SUC_) or a DIN rail housing (BUP-SUC_D) with 10,4 to 30V. These maintenance-free and durable energy storage units are suitable for UPS systems (UPSI series) and have a high power density and a cycle stability of >500.000. They are protected against overvoltage as well as overcurrent and have an SMD fuse at the output. We offer the following types of this Bicker Elektronik series: BP-SUC-1033, BP-SUC-1645, BP-SUC-30090, BP-SUC-1033D, BP-SUC-1645D and BP-SUC-30090D.

  • life cycles: >500000
  • maximal charging current: 6A
  • maximal discharge current: 17A (<2s)
  • operating temperature: -20 to +70°C
  • maximal altitude: 5000m
BP-SUC-1033, Bicker Elektronik supercap storage units, 10,4 to 30V, for UPSI series, BP-SUC series

BP-SUC-1033

233966 BP-SUC-1033 BP-SUC-1033 Bicker Elektronik supercap storage unit series BP-SUC. External energy supercap storage units in an open-frame type (BUP-SUC_) or a DIN rail housing (BUP-SUC_D) with 10,4 to 30V. These maintenance-free and durable energy storage units are&nbsp;suitable for UPS systems (UPSI series) and have a high power&nbsp;density and a cycle stability of &gt;500.000. They are protected against overvoltage as well as overcurrent and have an SMD fuse at the output. We offer the following types of this Bicker Elektronik series:&nbsp;BP-SUC-1033, BP-SUC-1645, BP-SUC-30090, BP-SUC-1033D, BP-SUC-1645D and BP-SUC-30090D. life cycles: &gt;500000 maximal charging current: 6A maximal discharge current: 17A (&lt;2s) operating temperature: -20 to +70&deg;C maximal&nbsp;altitude: 5000m

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BP-SUC-1033
Nominal voltage [V DC] 10,4
Data Sheet

Unit price

76,19 €

Stock: 2
