> Power supplies>Uninterruptible power supplies (UPS)>Bicker Elektronik Li-ion battery packs, 9,9 to 25,6V, for UPSI series, BP-LFP series>BP-LFP-1325S

Manufacturers

BP-LFP-1325S

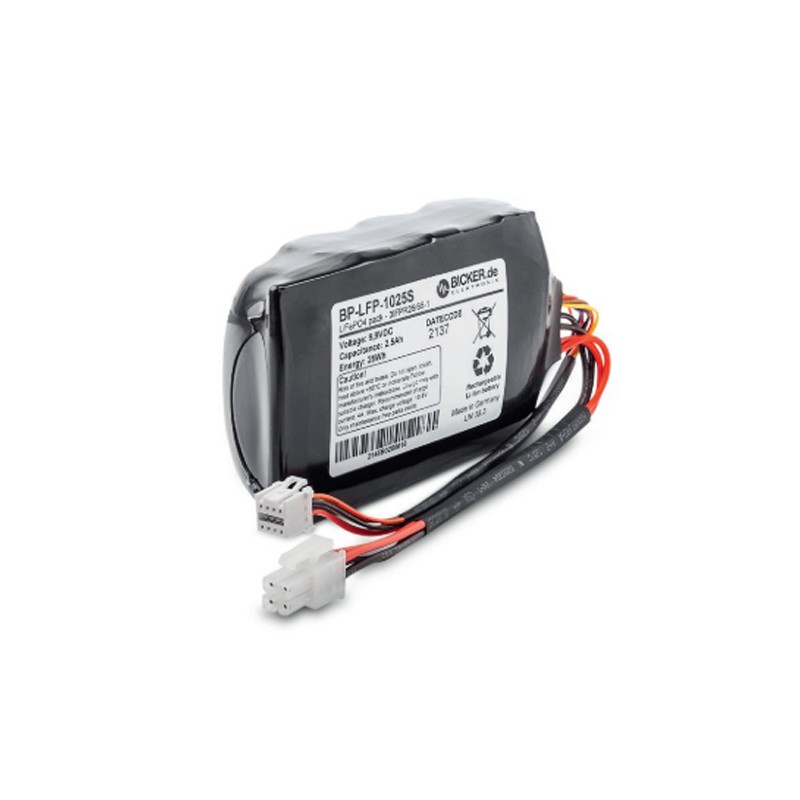

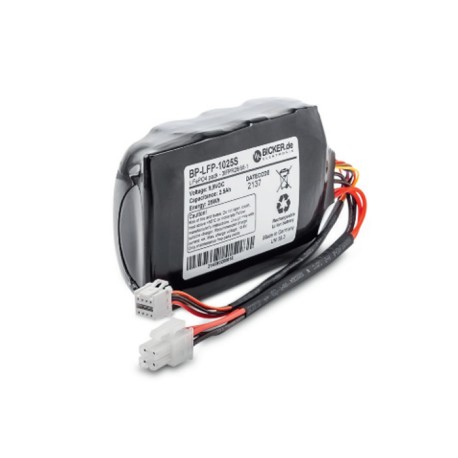

Bicker Elektronik Li-ion battery pack series BP-LFP

Bicker Elektronik lithium-ion battery packs in a shrinked type (BP-FLP_) or in a DIN rail housing (BP-FLP-_D) with 9,9 to 25,6V, a high reliability and a safe lithium iron phospate technology for UPSI series. These high performance BMS systems are 100% free from lead and cadmium, have advanced charging algorithms and cell balancing. They are protected against deep discharge, overcurrent, overvoltage as well as short circuit and have a battery-relax mode to extend the battery life. We offer the following types of this Bicker Elektronik series: BP-LFP-1025, BP-LFP-1325, BP-LFP-1375, BP-LFP-2725, BP-LFP-1025D, BP-LFP-1325D, BP-LFP-1375D and BP-LFP-2725D.

  • system: LiFePO4
  • life cycles: >6000
  • maximal charging current: 4,5A
  • maximal discharge current: 15A
  • operating temperature: -20 to +55°C
BP-LFP-1325S, Bicker Elektronik Li-ion battery packs, 9,9 to 25,6V, for UPSI series, BP-LFP series

BP-LFP-1325S

246723 BP-LFP-1325S BP-LFP-1325S Bicker Elektronik Li-ion battery pack series BP-LFP. Bicker Elektronik lithium-ion battery packs in a shrinked type (BP-FLP_) or in a DIN rail housing (BP-FLP-_D) with 9,9 to 25,6V, a high reliability and a safe lithium iron phospate technology for UPSI series. These high performance BMS systems are 100% free from lead and cadmium, have advanced charging algorithms and cell balancing. They are protected against deep discharge, overcurrent, overvoltage as well as short circuit and have a battery-relax mode to extend the battery life. We offer the following types of this Bicker Elektronik series: BP-LFP-1025, BP-LFP-1325, BP-LFP-1375, BP-LFP-2725, BP-LFP-1025D, BP-LFP-1325D, BP-LFP-1375D and BP-LFP-2725D. system: LiFePO4 life cycles: >6000 maximal charging current: 4,5A maximal discharge current: 15A operating temperature: -20 to +55°C

Specifications

manufacturer
Manufacturer's name BP-LFP-1325S
Nominal voltage [V DC] 13,2
Rated capacitance [Ah] 2,5
Data Sheet

Unit price

211,99 €

Stock: 0
Further delivery:
CW 01/2025
