KS 45-25

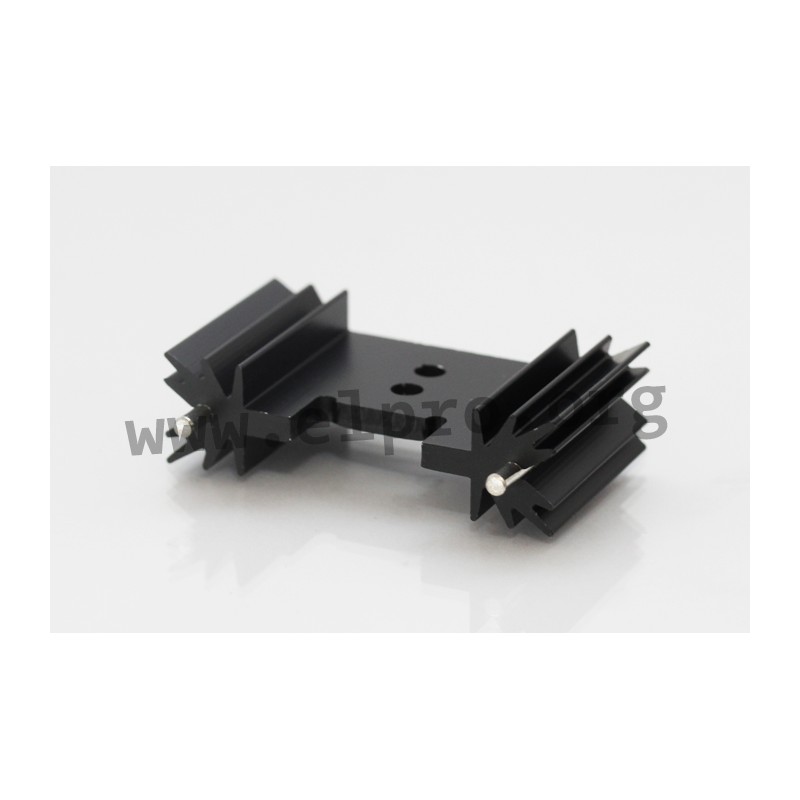

Assmann WSW extruded heatsink series V7466

  • black anodised extruded heatsinks suited for TO220, SOT32 and TOP3 housings
  • mounting: vertical
  • the heatsink is mounted with solderpins
  • the semiconductor is mounted with M3 screws (hole without thread)
  • thermal resistance and length:
    • KS 45-25: 8,2K/W; 25,4mm
    • KS 45-38: 7K/W; 38,1mm

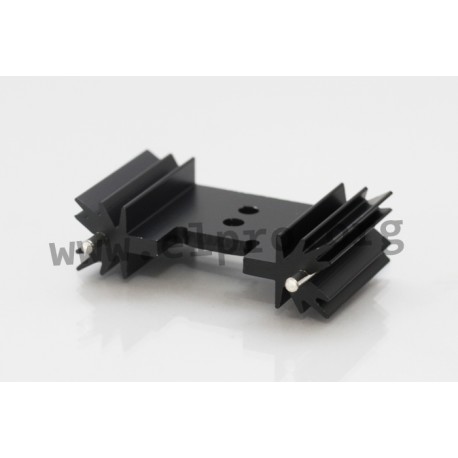

KS 45-25

KS 45-25

29374 KS 45-25 V7466W V7466W Assmann WSW extruded heatsink series V7466. black anodised extruded heatsinks suited for TO220, SOT32 and TOP3 housings mounting: vertical  the heatsink is mounted with solderpins the semiconductor is mounted with M3 screws (hole without thread) thermal resistance and length: KS 45-25: 8,2K/W; 25,4mm KS 45-38: 7K/W; 38,1mm

Specifications

manufacturer
Manufacturer's name V7466W
Data Sheet

Unit price

0,528 €

Stock: 360
Next incoming goods:
CW 02/2025
312 units

Further delivery:
CW 05/2025

Minimum order quantity 1 to 9 units or multiples of 13 plus 0 to 9 .
