QM64ABT

male connectors, angled, type Q by Apfel

• DIN 41612
• type: Q
• pitch: 2.54mm
• series: QM
• by Apfel
• angled solder pins
• insulating shell: glass filled polyamide (PBT), (UL94V-0)
• contact material: brass
• contact surface
plug-in side: gold over nickel
solder side: tin-plated
• mating and withdraw force (64-Pole), max.: 60N
• air and creepage: min. 1.2mm


• operating voltage: 250V AC
• test voltage
between contacts: 1000Vrms
between contacts and shell: 1550Vrms
• rated current
20°C: 2A
70°C: 1A
100°C: 0.5A
• contact resistance: <20mΩ
• after 400 transmission cycles: <40mΩ
• insulation resistance between adjacent contacts (100VAC): >1012Ω
• temperature range: -55...+125°C
• class: 3

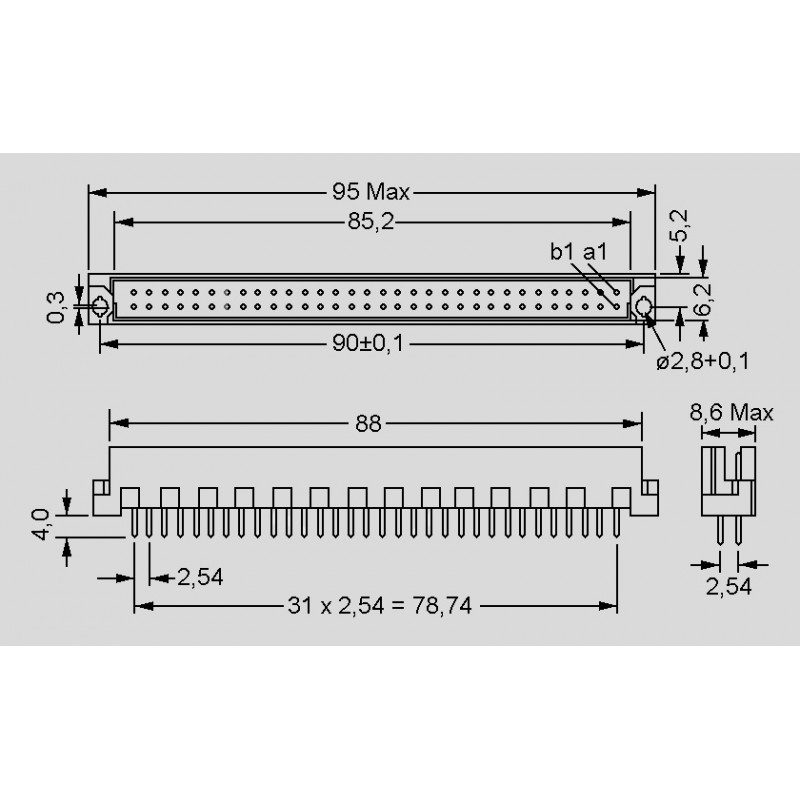

dimensions

QM64ABT

42452 QM64ABT A-QM64ABT A-QM64ABT male connectors, angled, type Q by Apfel. • DIN 41612• type: Q• pitch: 2.54mm• series: QM• by Apfel• angled solder pins• insulating shell: glass filled polyamide (PBT), (UL94V-0)• contact material: brass• contact surfaceplug-in side: gold over nickelsolder side: tin-plated• mating and withdraw force (64-Pole), max.: 60N• air and creepage: min. 1.2mm • operating voltage: 250V AC• test voltagebetween contacts: 1000Vrmsbetween contacts and shell: 1550Vrms• rated current20°C: 2A70°C: 1A100°C: 0.5A• contact resistance: &lt;20mΩ• after 400 transmission cycles: &lt;40mΩ• insulation resistance between adjacent contacts (100VAC): &gt;1012Ω• temperature range: -55...+125°C• class: 3

Specifications

manufacturer
Manufacturer's name A-QM64ABT
Number of poles 64
Equipping a + b
Data Sheet

Unit price

1,93 €

Stock: 200
Next incoming goods:
CW 04/2025
600 units

Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
