> Passive elements>Connectors>Modular connectors>Assmann panel jacks>RJ 45 TE

Manufacturers

RJ 45 TE

modular panel jacks

* MOD 4/4 PC, RJ12 PC, RJ45 PC: 90° angled
* MOD 4/4 TE, RJ 12 TE, RJ 45 TE: top entry
* housing: polyester, glass filled
* contacts: phosphor bronze
* contact surface: 6µ" gold
* operating temperature range: -40...+85°C
* rated current: 1.5A
* operating voltage: 125V AC
RJ 45 TE

RJ 45 TE

30150 RJ 45 TE A-20142 A-20142 modular panel jacks. * MOD 4/4 PC, RJ12 PC, RJ45 PC: 90° angled* MOD 4/4 TE, RJ 12 TE, RJ 45 TE: top entry* housing: polyester, glass filled* contacts: phosphor bronze* contact surface: 6µ" gold* operating temperature range: -40...+85°C* rated current: 1.5A* operating voltage: 125V AC

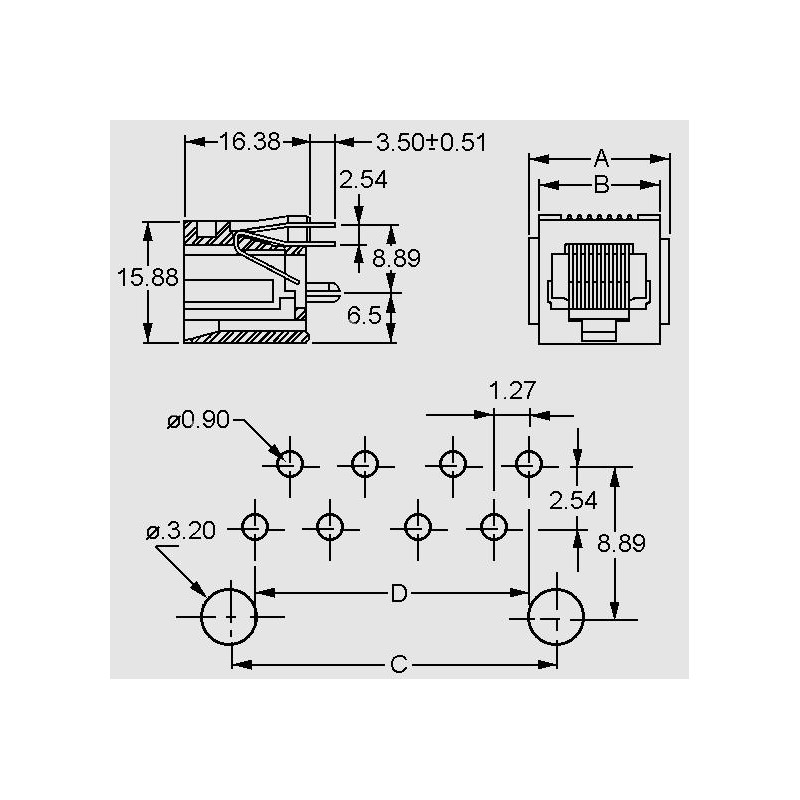

Specifications

manufacturer
Manufacturer's name A-20142
A [mm] 17,84
Width [mm] 15,36
D [mm] 8,89
C [mm] 11,43

Unit price

0,535 €

Stock: 3900
Next incoming goods:
CW 01/2025
3150 units

Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
