MOD 4/4 PC

modular panel jacks

• MOD 4/4 PC, RJ12 PC, RJ45 PC: 90° angled
• MOD 4/4 TE, RJ 12 TE, RJ 45 TE: top entry
• housing: polyester, glass filled
• contacts: phosphor bronze
• contact surface: 6µ" gold
• operating temperature range: -40...+85°C
• rated current: 1.5A
• operating voltage: 125V AC

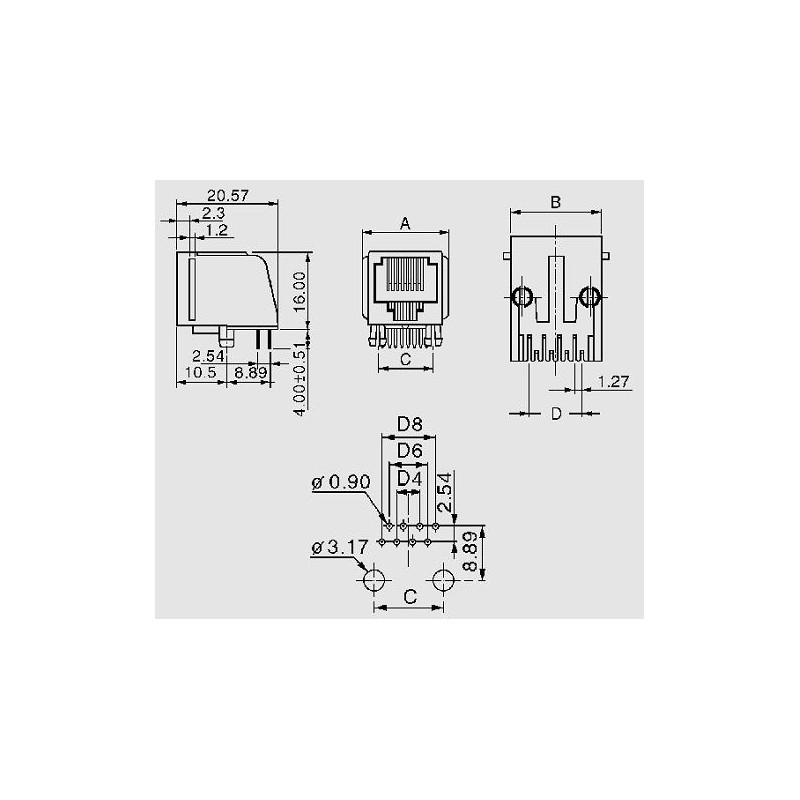

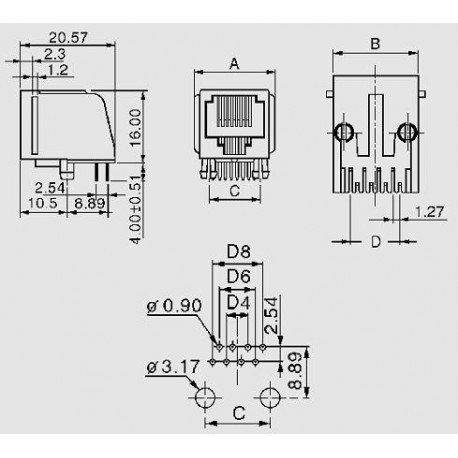

dimensions _PC

MOD 4/4 PC

16872 MOD 4/4 PC A-20040 A-20040 modular panel jacks. * MOD 4/4 PC, RJ12 PC, RJ45 PC: 90° angled* MOD 4/4 TE, RJ 12 TE, RJ 45 TE: top entry* housing: polyester, glass filled* contacts: phosphor bronze* contact surface: 6µ" gold* operating temperature range: -40...+85°C* rated current: 1.5A* operating voltage: 125V AC

Specifications

manufacturer
Manufacturer's name A-20040
A [mm] 13,72
Width [mm] 11,18
D [mm] 3,81
C [mm] 7,62

Unit price

0,535 €

Stock: 2.677
Further delivery:
CW 29/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
