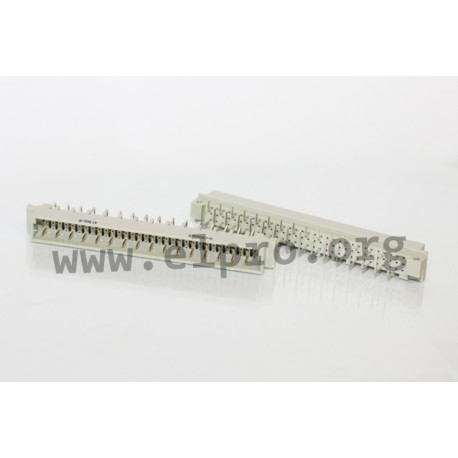

CM32ACR

male connectors, angled, type C by Apfel

• DIN 41612
• type: C
• pitch: 5.08mm
• series: CM
• by Apfel
• angled solder pins
• insulation shell: glass filled polyamide (PBT), (UL94V-0)
• contact material: brass
• contact surface
plug-in side: gold over nickel
solder side: tin-plated
• mating and withdraw force, max.
32-pole: 30N
• air and creepage, min.: 1.2mm


• operating voltage: 250V AC
• test voltage
between contacts
P = 5.08: 1550Vrms,
between contacts and shell: 1550Vrms
• rated current
20°C: 2A
70°C: 1A
100°C: 0.5A
• contact resistance: <20mΩ
• after 400 transmission cycles: <40mΩ
• insulation resistance between adjacent contacts (100VAC): >1012Ω
• temperature range: -55...+125°C
• class: 3

CM32ACR

CM32ACR

42455 CM32ACR A-CM32ACR A-CM32ACR male connectors, angled, type C by Apfel. • DIN 41612• type: C• pitch: 5.08mm• series: CM• by Apfel• angled solder pins• insulation shell: glass filled polyamide (PBT), (UL94V-0)• contact material: brass• contact surfaceplug-in side: gold over nickelsolder side: tin-plated• mating and withdraw force, max.32-pole: 30N• air and creepage, min.: 1.2mm • operating voltage: 250V AC• test voltagebetween contactsP = 5.08: 1550Vrms,between contacts and shell: 1550Vrms• rated current20°C: 2A70°C: 1A100°C: 0.5A• contact resistance: &lt;20mΩ• after 400 transmission cycles: &lt;40mΩ• insulation resistance between adjacent contacts (100VAC): &gt;1012Ω• temperature range: -55...+125°C• class: 3

Specifications

manufacturer
Manufacturer's name A-CM32ACR
Number of poles 32
Equipping a + c
Pitch [mm] 5,08
Data Sheet

Unit price

1,51 €

Stock: 860
Further delivery:
CW 04/2025

Minimum order quantity 10 units or
multiples of 10.
