A-CF64ACT

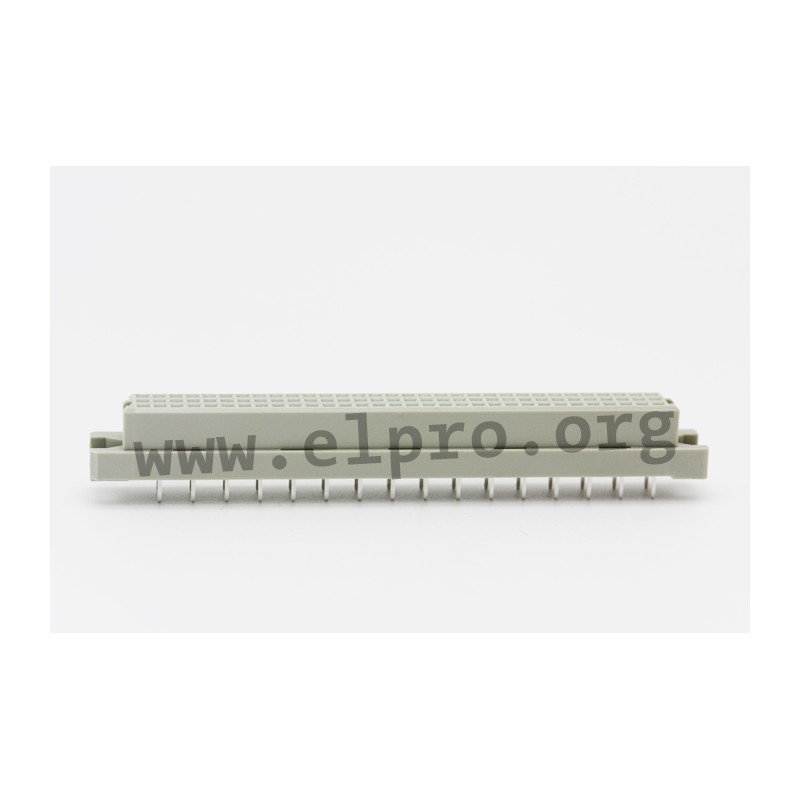

female connectors, straight, type C by Apfel

• DIN 41612
• type: C
• pitch: 2.54mm
• series: CF
• by Apfel
• straight solder pins
• insulation shell: glass filled polyamide (PBT), (UL94V-0)
• contact material: copper alloy
• contact surface
plug-in side: gold over nickel
solder side: tin-plated
• mating and withdraw force, max.: 60N
• air and creepage, min.: 1.2mm


• operating voltage: 250V AC
• test voltage
between contacts: 1000Vrms
between contacts and shell: 1550Vrms
• rated current
20°C: 2A
70°C: 1A
100°C: 0.5A
• contact resistance: <20mΩ
• after 400 transmission cycles: <40mΩ
• insulation resistance between adjacent contacts (100VAC): >1012Ω
• temperature range: -55...+125°C
• class: 3

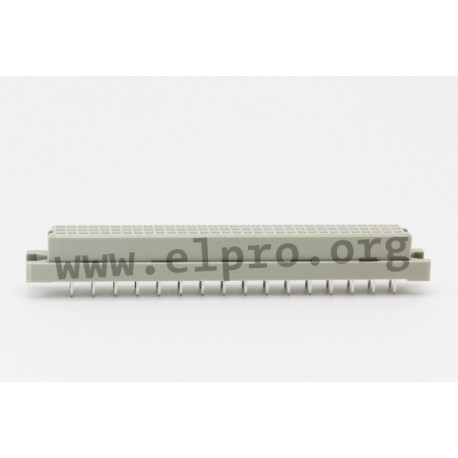

Apfel female connector type C

A-CF64ACT

42459 A-CF64ACT A-CF64ACT female connectors, straight, type C by Apfel. • DIN 41612• type: C• pitch: 2.54mm• series: CF• by Apfel• straight solder pins• insulation shell: glass filled polyamide (PBT), (UL94V-0)• contact material: copper alloy• contact surfaceplug-in side: gold over nickelsolder side: tin-plated• mating and withdraw force, max.: 60N• air and creepage, min.: 1.2mm • operating voltage: 250V AC• test voltagebetween contacts: 1000Vrmsbetween contacts and shell: 1550Vrms• rated current20°C: 2A70°C: 1A100°C: 0.5A• contact resistance: &lt;20mΩ• after 400 transmission cycles: &lt;40mΩ• insulation resistance between adjacent contacts (100VAC): &gt;1012Ω• temperature range: -55...+125°C• class: 3

Specifications

manufacturer
Manufacturer's name A-CF64ACT
Number of poles 64
Equipping a + c
Pitch [mm] 2,54
Data Sheet

Unit price

1,92 €

Stock: 6590
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
