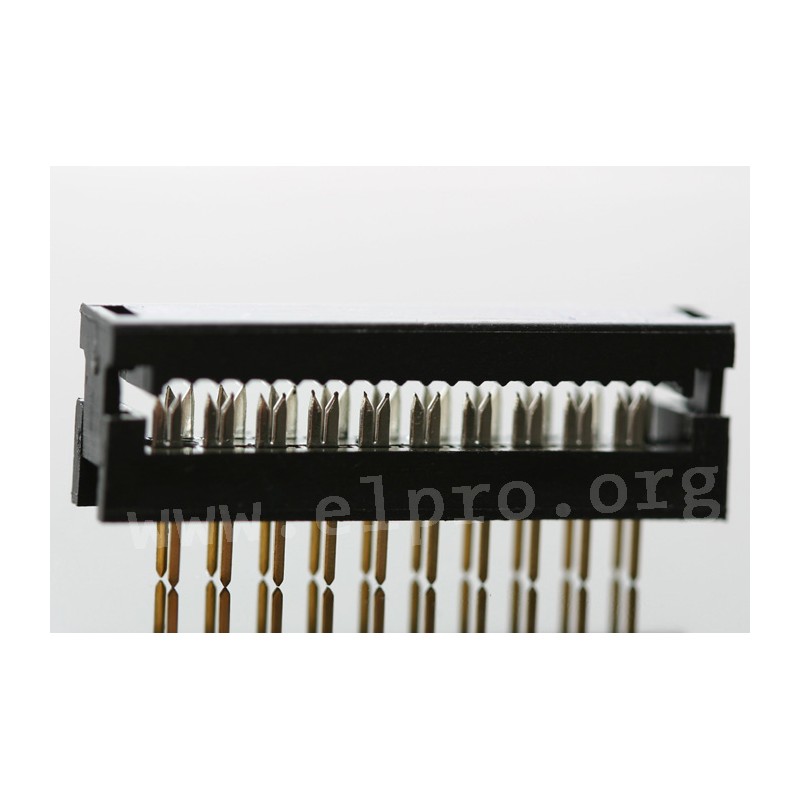

AWLP 26

PC-connectors for flat cables

• pitch: 2.54mm
• insulation body: PBT, glass filled (UL94V-0)
• contact material: brass
• contact surface: tin over nickel
• rated current: 1A
• test voltage: 500V AC
• insulation resistance (500V): 1000MΩ
• temperature range: -40...+105°C

suitable female headers

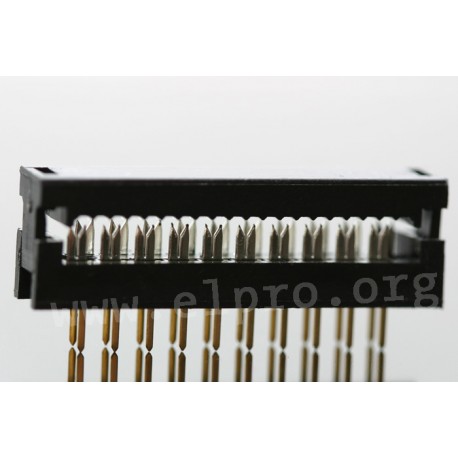

AWLP_

AWLP 26

7150 AWLP 26 AWLP 26/3,2-T AWLP 26/3,2-T PC-connectors for flat cables. • pitch: 2.54mm• insulation body: PBT, glass filled (UL94V-0)• contact material: brass• contact surface: tin over nickel• rated current: 1A• test voltage: 500V AC• insulation resistance (500V): 1000MΩ• temperature range: -40...+105°Csuitable female headers

Specifications

manufacturer
Manufacturer's name AWLP 26/3,2-T
Number of poles 26

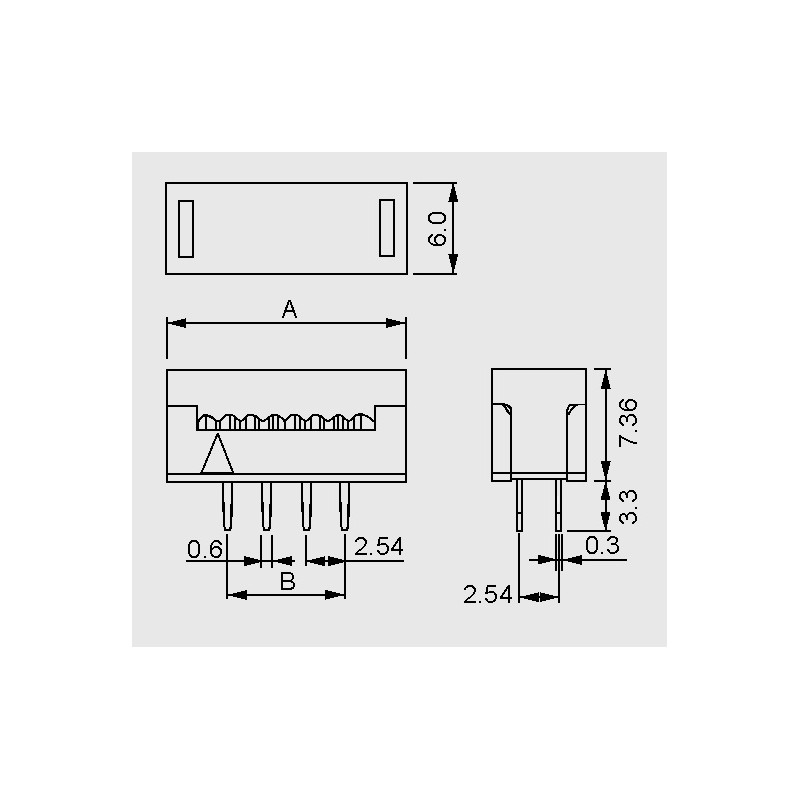

A [mm] 38,42
Width [mm] 30,48

Unit price

0,347 €

Stock: 1861
Next incoming goods:
CW 05/2025
160 units

Further delivery:
CW 14/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
